ICM and ICMTS Motorized Valves with ICAD Actuators

Wiring diagram showing ICAD wired to a Danfoss EKE controller

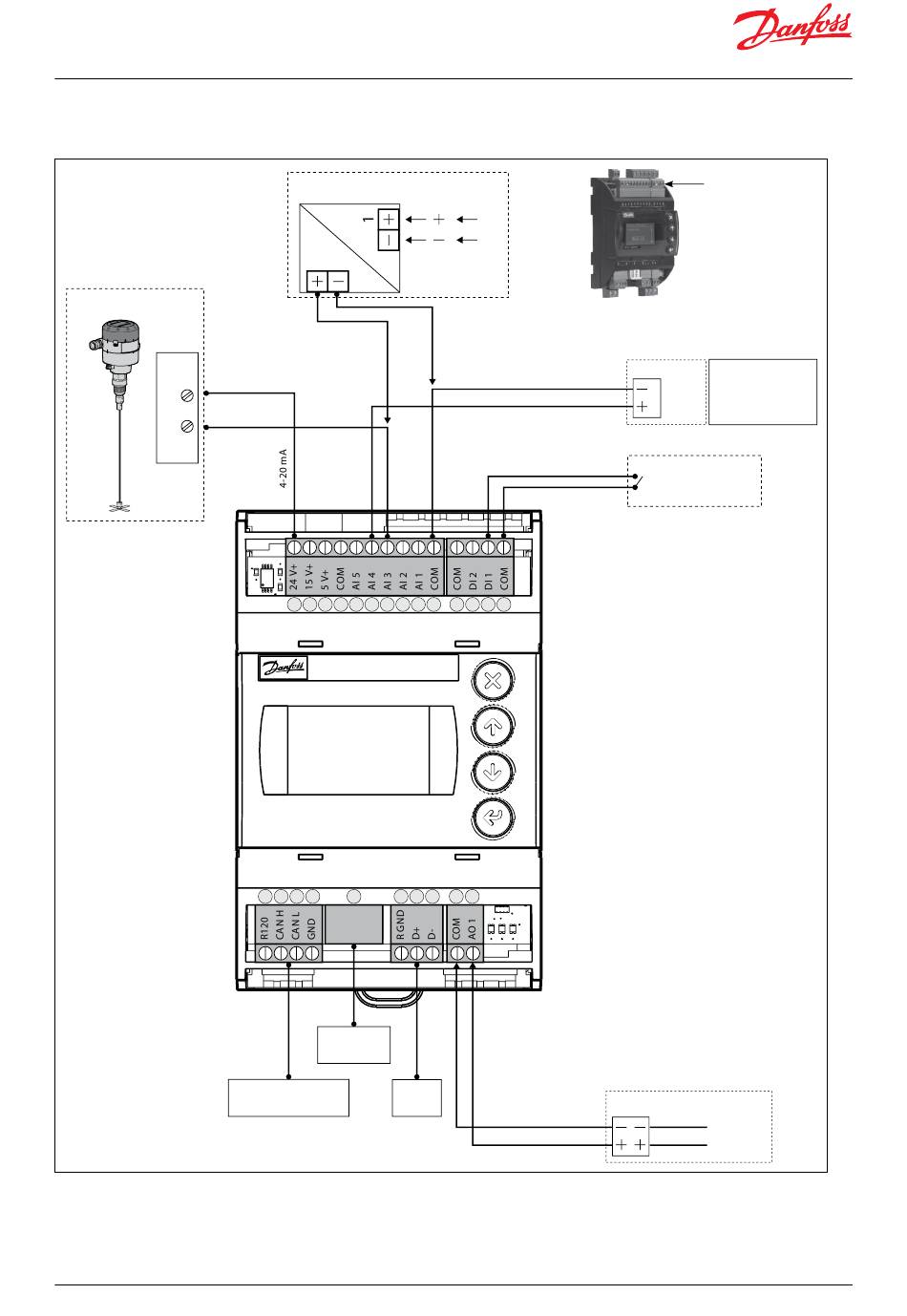

Figure 11: ICAD wired to a Danfoss EKE controller
AKS 4100/4100U
+
–
 NOTE:
For instructions on completely wiring an EKE controller, please see the relevant EKE controller manual.
© Danfoss | Climate Solutions | 2024.01
AKS 41
24 V DC
2 3
4-20 mA
1 2 3 4 5 6 7 8
15 16 17 18 19 20 21 22
CAN RJ
plug for
remote display
CANbus connection
ModBUS
to other EKE controllers
24 V AC
L
N
orange
blue
9 10 11 12 13 14
23 24
orange
yellow
Upper level
ICAD
Optional ICAD/ICM
Valve Position
Feedback
DI1 - main switch
ICAD
brown
24 V DC
white
BC465027827472en-000102 | 13
