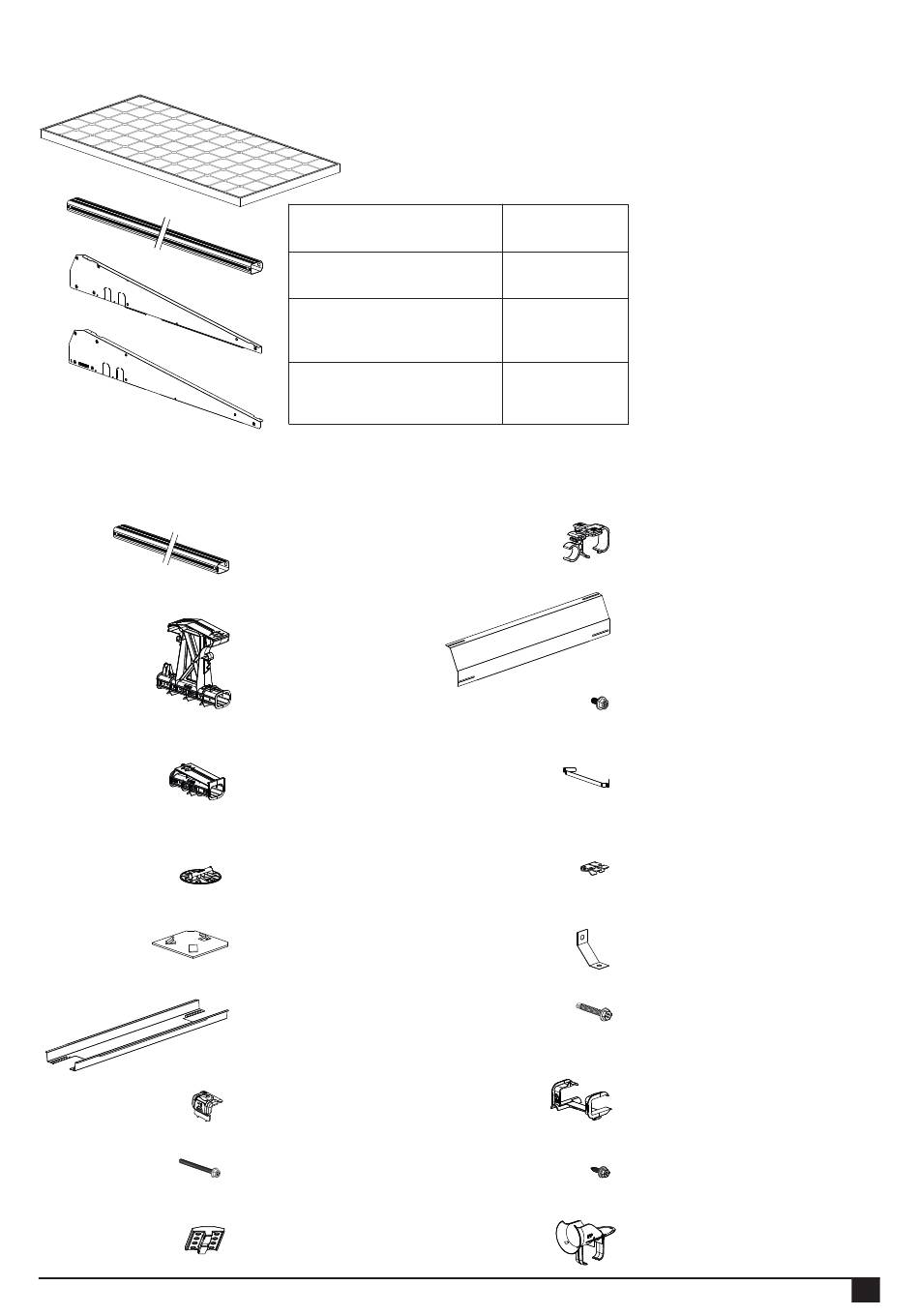

4.2 List of parts
Rev. 08.08.23
Solar panel
1.
length:
Base profile
2.
Portrait
Article no.:
3. Wind deflector left Portrait
Article no.:
3A. Wind deflector right Portrait
Article no.:
2A. Base profile
Article no.: 10071__
For length see annex
section 7.1
4. High base Portrait
Article no.: 1007037
5. Low base Portrait
Article no.: 1007027
6. Roof support
Article no.: 1007012
7. TPO protective mat
Article no.: 1007015
*optional
8. Ballast container Portrait
Article no.: 1007230
9. End clamp
Article no.: 1004__
For type see annex section 7.1
10. Mounting screw M6 x __
Article no.: 10006__
For type see annex section 7.1
11. Universal module clamp
Article no.: 1003022
MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
1690 – 1780 mm
1670 mm
1007197
1007232
1007233
12. Cable-clip Optimiser Ready
Article no.: 1007041
13. Wind deflector rear Portrait
Article no.: 1007231
14. Mounting screw M6x12 Article
no.: 1000612
15. Grounding spring
Article no.: 1007502
*optional
16. Grounding clamp
Article no.: 1007505
*optional
17. Grounding bracket
Article no.: 1007503
*optional
18. Self-drilling screw 6.3x42mm
SW10/T30
Article no.: 1003016
*optional
19. Roof support adapter
Article no.: 1007011
*optional
20. Self-tapping sheet metal screw
6,0 x 25 SW10 HEX/T30 Article
no.: 1008085
21. Cable exit guide
Article no.: 1005570
*optional
04
