6.14 Mounting and equipotential bonding wind deflector rear

The wind deflectors at the rear of the solar panels can optionally be earthed by placing all wind deflectors on the high
bases. The overlap that occurs between the wind deflectors provides the earthing. Use the grounding bracket to connect
the wind deflectors to the rest of the system. NOTE! The diagram in annex section 7.3.2 shows the positions of the
grounding brackets.

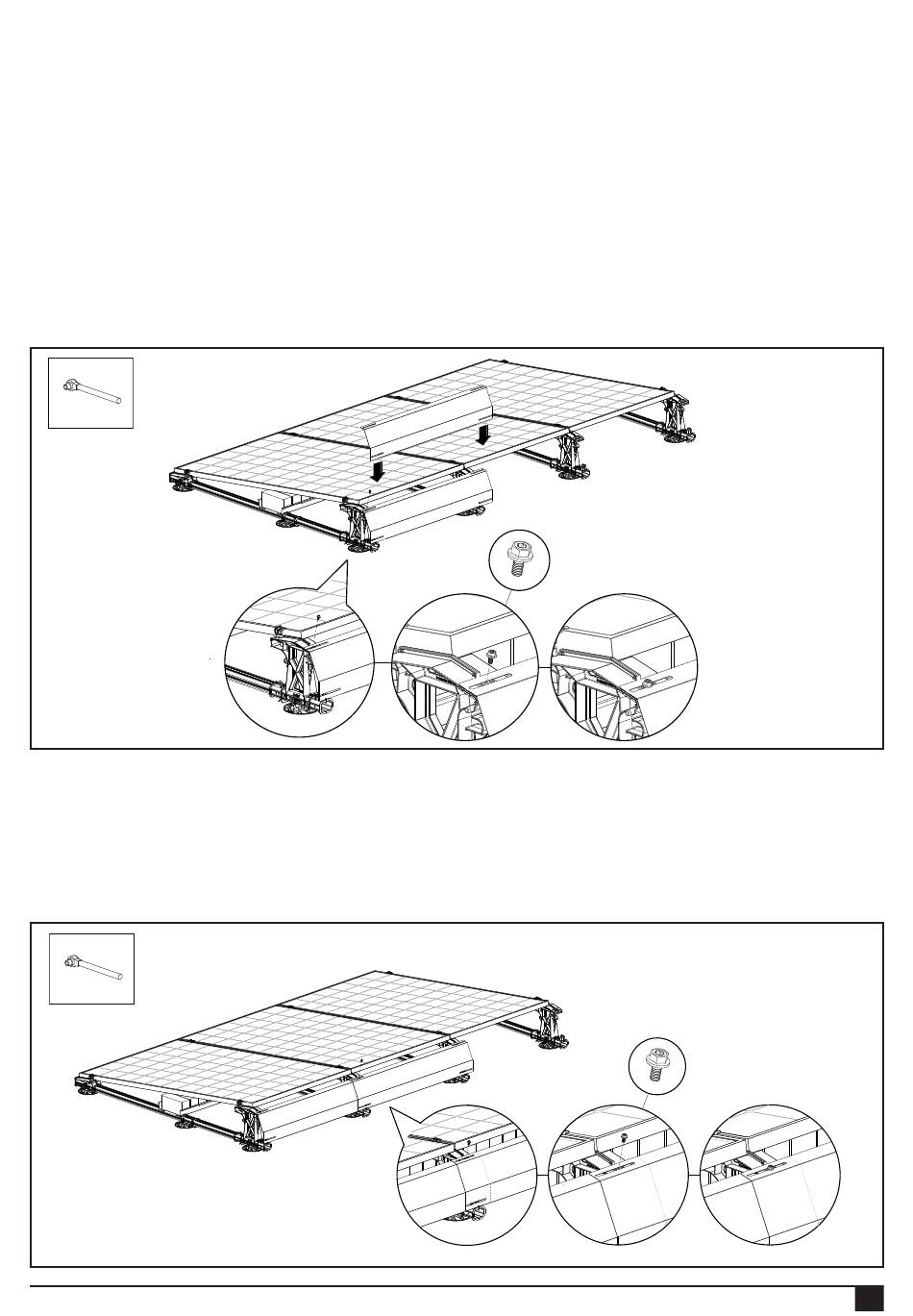

1. Place the 1 wind deflector at the rear of the solar panels, so that the bottom edge of the wind deflector falls between
st
the raised lugs of the high bases and with the side of the wind deflector as level as possible with the outer edge of the high
base.
2. Only attach one side of the wind deflector (instead of the edge of the panel field) to the high base. Place one mounting
screw M6x12 in the slot of the wind deflector and screw it into the lower mounting hole of the high base. NOTE! The
maximum tightening torque of the screw connections is 9 Nm.
Refer to your tool manual to set it to the correct torque.
Place the 2 wind deflector at the rear of the solar panels, so that the bottom edge of the wind deflector falls between the
nd
raised lugs of the high bases and the slots of the wind deflectors, and the screw holes of the high bases overlap. Mount
only one side of the wind deflector (instead of overlap) to the high base by placing the mounting screw M6x12 in the slot
of the 2 wind deflectors and screw it into the mounting holes of the high base. Repeat the above steps for the other wind
deflectors between first and last wind deflectors. NOTE! The maximum tightening torque of the screw connections is 9 Nm.
Refer to your tool manual to set it to the correct torque.
Rev. 08.08.23 MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
M6x12
Article no.:
1000612
M6x12
Article no.:
1000612
