6.5 Coupling FlatFix Fusion segments

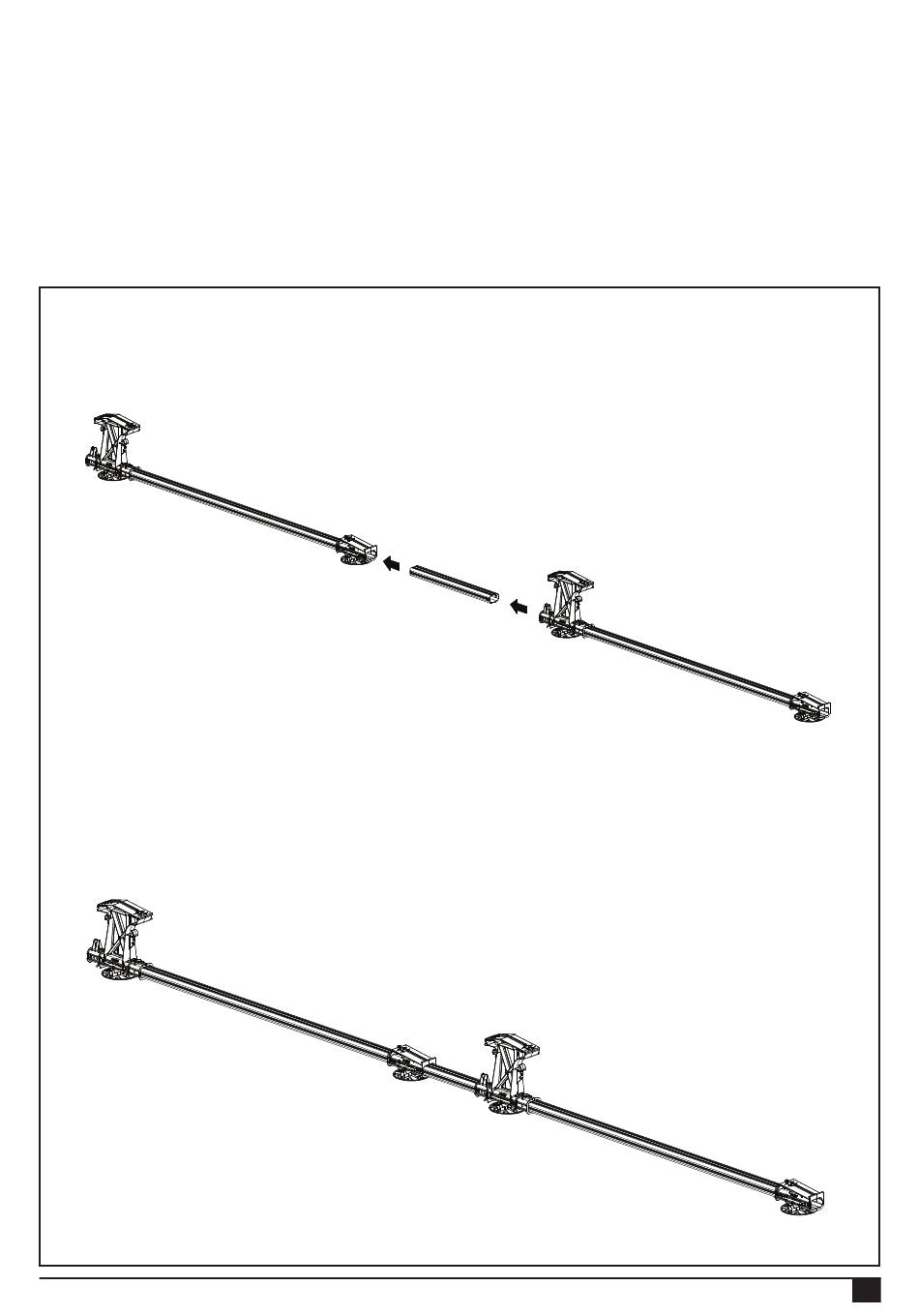

1. Make two FlatFix Fusion segments upright and place them at such a distance behind each other so that the base profile
can be mounted between them. Slide the end of the base profile into the opening on the low side of the first FlatFix Fusion
segment until it clicks.
2. Slide the second FlatFix Fusion segment with the opening of the high side over the end of the base profile until it clicks.
3. The first coupled FlatFix Fusion segments are now ready. Repeat the above steps until you have enough coupled FlatFix
Fusion segments to set out the first two rows of solar panels.
1.
CLICK !
2.
CLICK !
3.
