6.18 Mounting wind deflector left/right

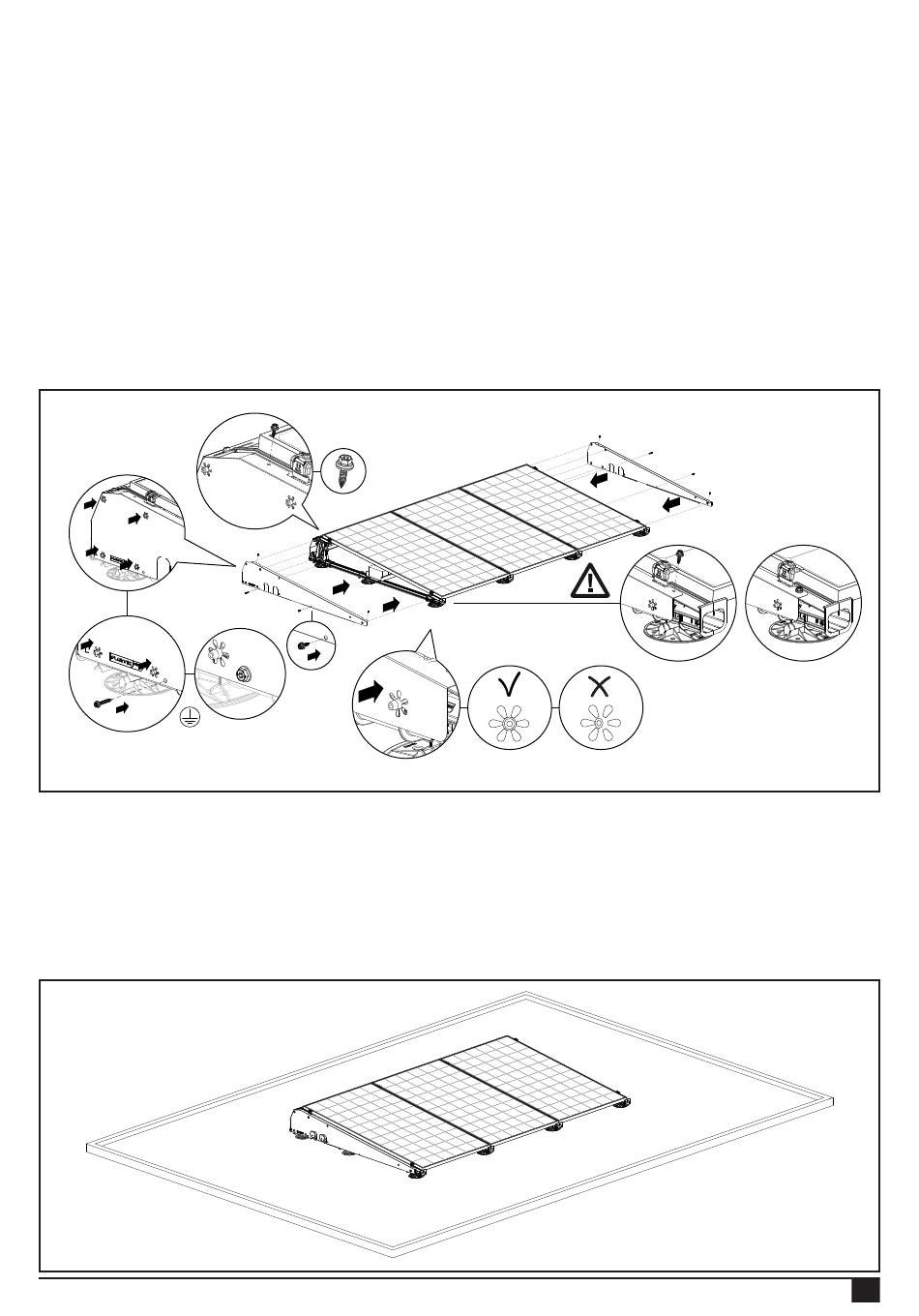

Place the left wind deflector next to the left side of the panel field and the right wind deflector next to the right side.
NOTE! The flange of the wind deflector must always face the panel field.
Mount the 2 wind deflectors (left and right) by pressing the starlock in the wind deflectors over the catches of the bases.
Install the wind deflector carefully. Make sure that all tabs of the starlock engage evenly with the catch of the base. Press
the wind deflector firmly so that it fits firmly to the base. The wind deflectors must then be additionally fixed by the self-
tapping sheet metal screw 6.0 x 25 mm SW10 HEX/T30 (article no. 1008085) at the level of the high and low bases, and
the wind deflectors at the bottom center must be fixed to the base profile with the self-tapping sheet metal screw 6.0 x 25
mm SW10 HEX/T30 (article no. 1008085). If you want to earth the wind deflectors (optional), mount a self-drilling screw
6.3x42mm SW10/T30 (article no. 1003016) through the pre-drilled hole next to the lower starlock in the wind deflector and
the base profile. The crosswind deflectors are now earthed and secured. And the first row of solar panels is now ready!
NOTE! If optional cable exit guides are used, then cut-outs must be made in the wind deflectors. See annex section 7.2.2
for the installation of wind deflectors at cable exit guides.
6,3x42
Article no.:
1003016
You can now mount the 2
The panel field is now ready!
Rev. 08.08.23
6,0x25
Article no.:
1008085
6,0x25
Article no.:
1008085
row of solar panels. To do this, follow the installation steps in sections 6.8 to 6.18.
nd
MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
6,0x25
Article no.:
1008085
23
