ESDEC FLATFIX FUSION Manual page 4

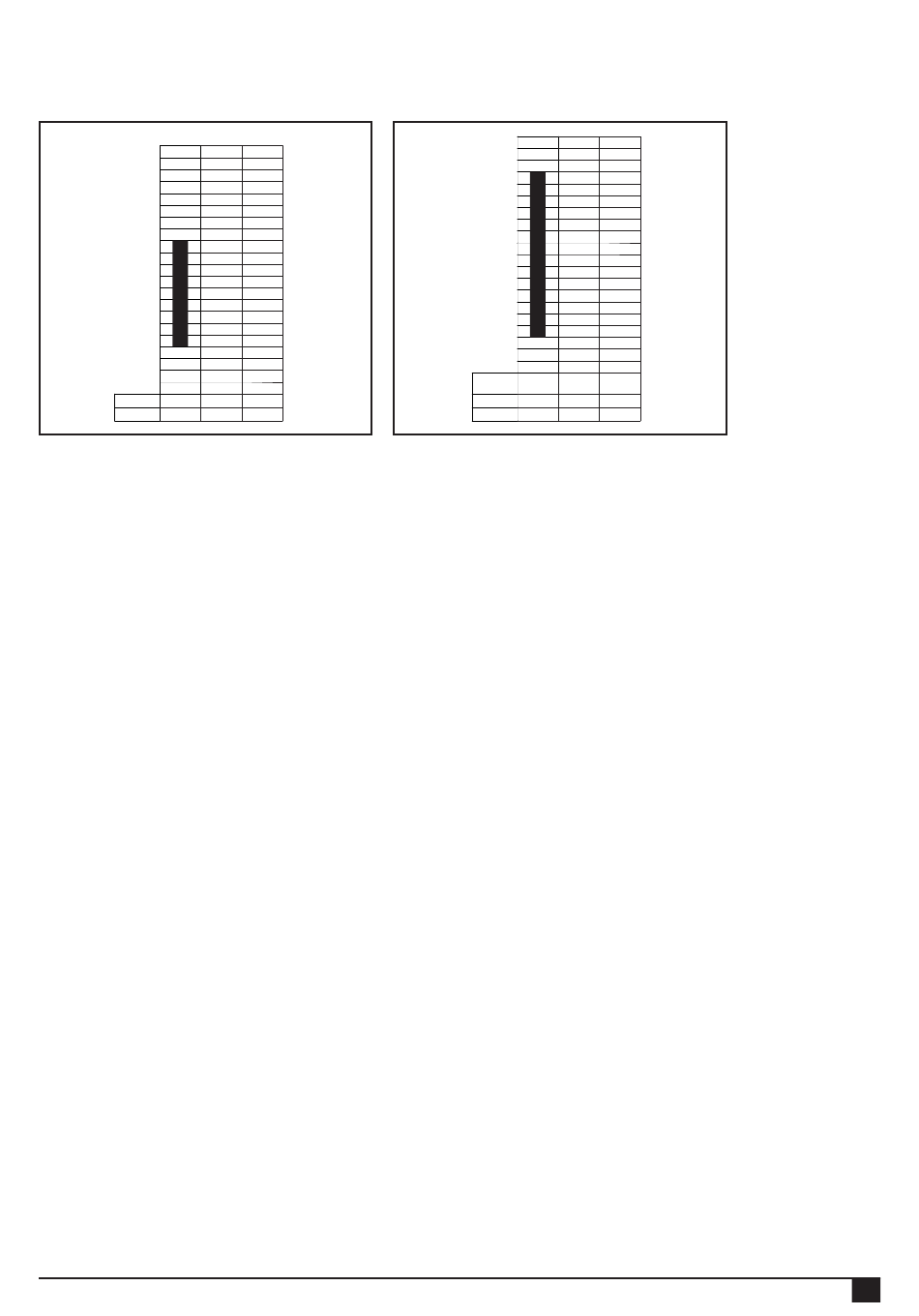

Table range panel dimensions
Panel length range
min 1690
max 1780
Edge zone
The distance from the solar panels to the edge of the roof must be approximately 1/5 of the height of the building with a minimum
distance of 30 cm, due to the very turbulent wind currents in this zone. No solar panels must be installed in this zone, either in whole or in
part. The edge zone to be maintained is derived from the Esdec calculator.
Ballast
If your roof is higher than 20 metres, we recommend that you consult with your supplier to help determine the correct ballast. Use stones
or gravel as ballast. Consult the project plan.
Standards, regulations and rules
When installing the mounting system, it is important to follow the installation manual and related standards to prevent accidents. In
particular, observe the following standards, regulations and rules:
•
Building Regulations 2010
•
EN 1990
•
EN 1991-1-3
•
EN 1991-1-4
•
NEN 7250: 2021
•
HD-IEC 60363 series
•
EN-IEC 62305 Series
•
Health and Safety at Work
•
Health and Safety in Roof work
Removal and disassembly
Dispose of the product in accordance with local laws and regulations. At the end of the service life, all materials are recyclable.
The aluminium base profiles are attached to the bases by means of a click system. Use combination pliers to disassemble the base
profile.
Warranty
Warranty according to the Esdec BV warranty terms. These can be found on the website www.esdec.com.
Liability
The manufacturer accepts no liability for damage or injury caused by failure to comply (strictly) with the safety guidelines and instructions
in this manual, or by negligence during installation of the product and the accessories listed in this document.
Rev. 08.08.23
Panel width range
1850
1840
1830
1820
1810
1800
1790
1780
1770
1760
1750
1740
1730
1720
1710
1700
1690
1680
1670
1660
1650
applicable document see: www.legislation.gov.uk
Basis of structural design
General loads – snowload
General loads – wind pressure
Structural aspects of power systems
Electrical installations for low voltage
Lightning protection
Deregulation Act 2015; see: www.legislation.gov.uk
HSE regulation; see: www.hse.gov.uk
MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
1160
1150
1140
1130
1120
1110
1100
1090
1080
1070
1060
1050
1040
1030
1020
1010
1000
990
980
970
Base profile 1670 mm
min 1000
max 1140
02
