3.1.1 Switches

The ADM-PCIE-8K5-FH has a quad DIP switch SW1, located on the rear side of the board. The function of each
switch in SW1 is detailed below:
Switch
SW1-1
SW1-2
SW1-3
SW1-4
Use IO Standard "LVCMOS33" when constraining the user switch pin.
Functional Description
ad-ug-1342_v1_0.pdf
Factory
Function
Default
User
OFF
Switch
Flash
OFF
Lockdown
Service
OFF
Mode
PCIe Edge
OFF
JTAG
Table 3 : SW1 Switch Functions

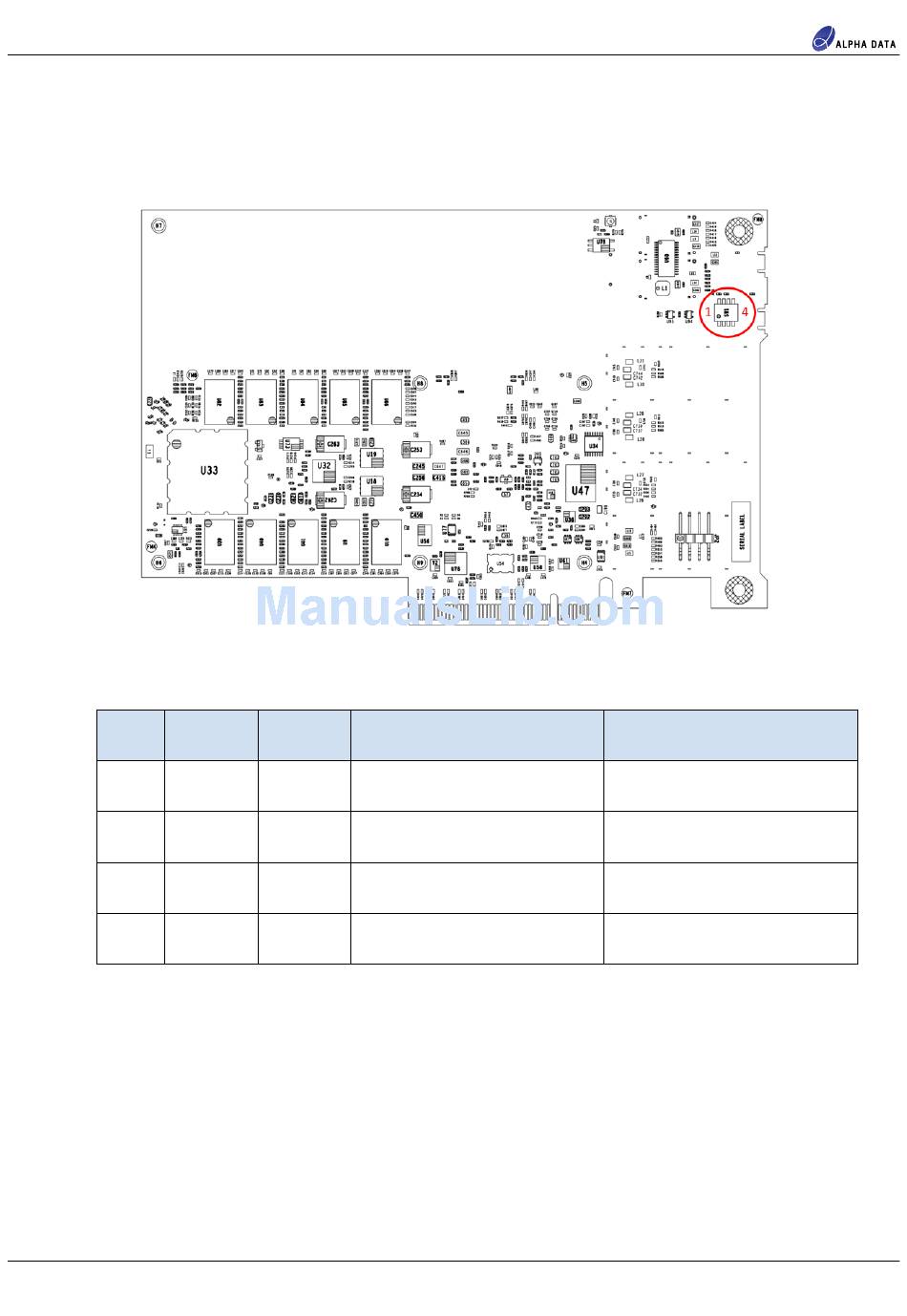

Figure 5 : Switches
OFF State
Pin AV18 = '1'
Flash block Lockdown enabled
Regular Operation
JTAG to FPGA from USB
ON State
Pin AV18 = '0'
Flash block Lockdown disabled
Firmware update service mode
JTAG to FPGA from PCIe Edge
Page 5
