1.4 Performing a Distance Measurement

The following steps show how to start a continuous measurement with the connected sensor.

Step 1: Start the Explorer application, AFBR.S50.Explorer.exe, for example, by selecting AFBR-S50 SDK > AFBR S50

Explorer from the Windows menu.

Step 2: Open a USB connection by clicking the green plug symbol.

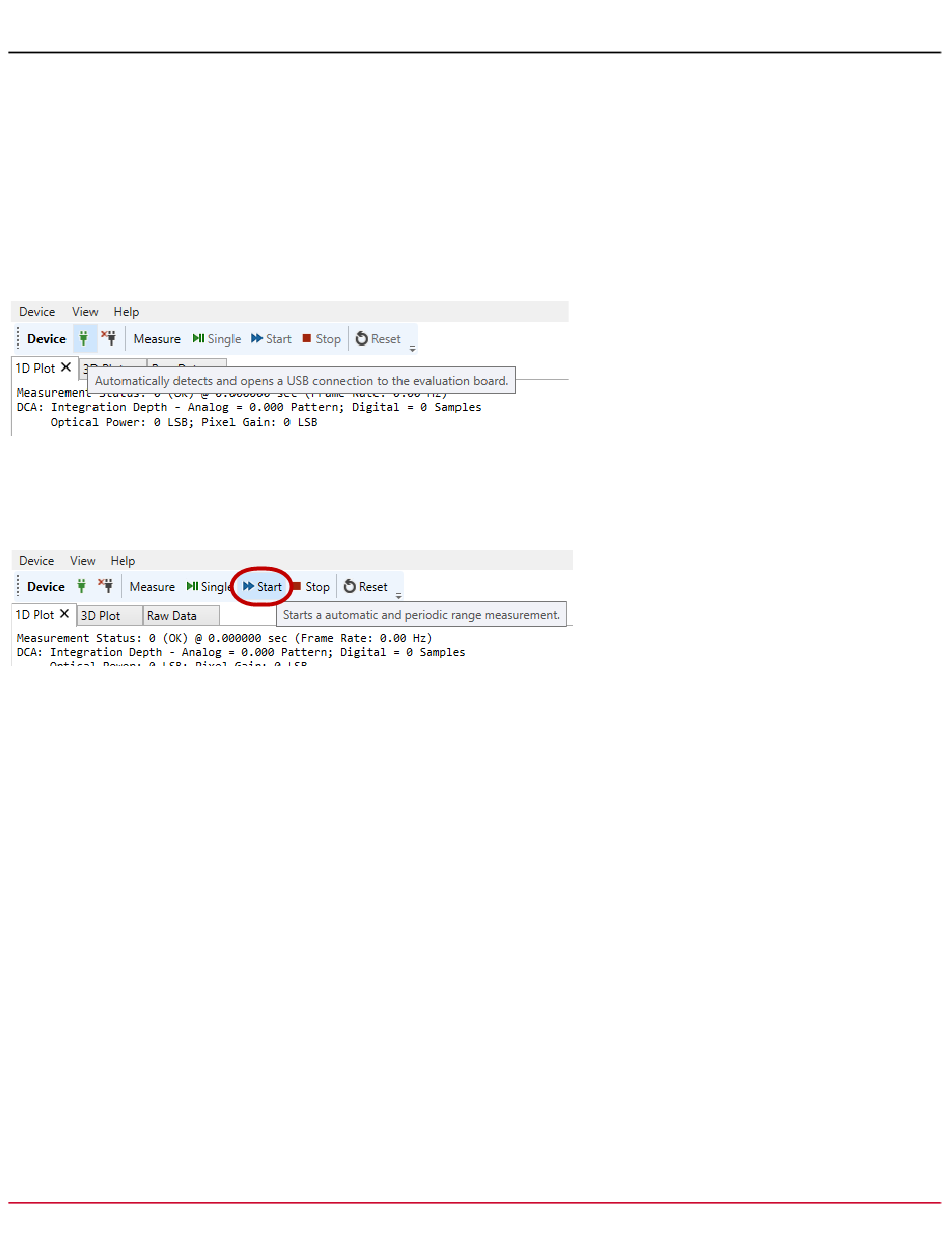

Figure 8: Green Plug Symbol

Step 3: Start the measurement by clicking Start.

Figure 9: Starting the Measurement

ATTENTION: To troubleshoot problems with starting the measurement, see

Troubleshooting and

FAQs.
