AFBR-S50 User Guide

2.4 Data Visualization Views

Below the AFBR-S50 controller tool bar, all measurement data gathered by the ToF sensor device can be displayed in three
different views: 1D Plot, 3D Plot, and Raw Data. Each of these views is introduced in the sections that follow.
Unlike the different views, the measurement status is always shown and provides information on the elapsed time of the
measured signal, the corresponding frame rate, the dynamic configuration adaption (DCA, the number of digital averaging
samples), the optical power, and the pixel gain.
NOTE:
The displayed frame rate might differ depending on the characteristics of your serial connection (USB cable length
and so on).

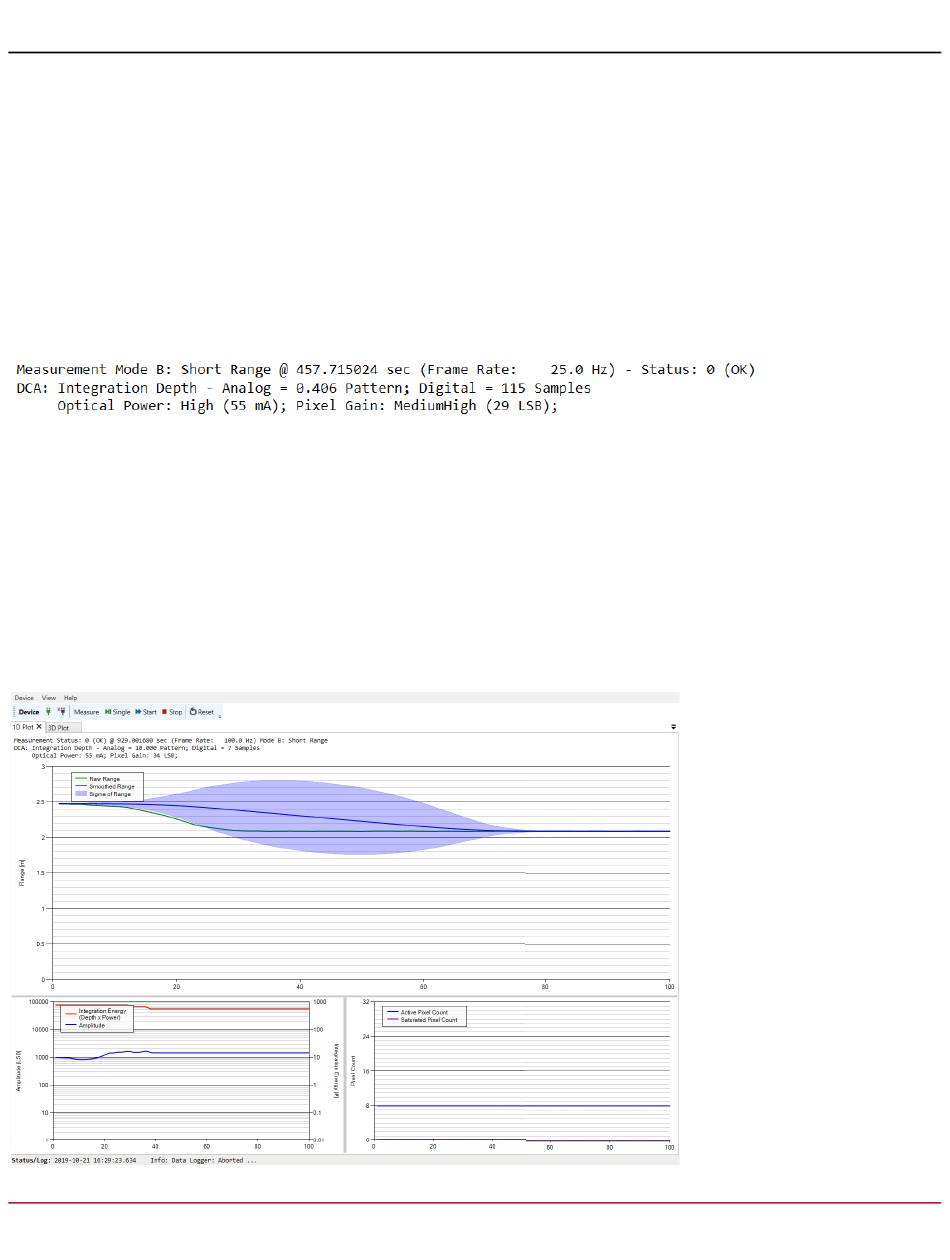

Figure 18: Measurement Status Example
2.4.1 1D Plot View
The 1D Plot view consists of the following three plots and shows the measurement data in real time. It is the standard
measurement view displayed after a measurement first stops. The x-axis for every chart inside the 1D plot view reflects the
number of measurement samples.
Range plot

Amplitude plot

Pixel Count plot

Figure 19: 1D Plot View
