The different plots of the Range plot element can be turned on or off by selecting the respective checkboxes inside the
Options panel. It is also possible to change the minimum and maximum displayed range of the respective axis or select the
Auto Scaling option.

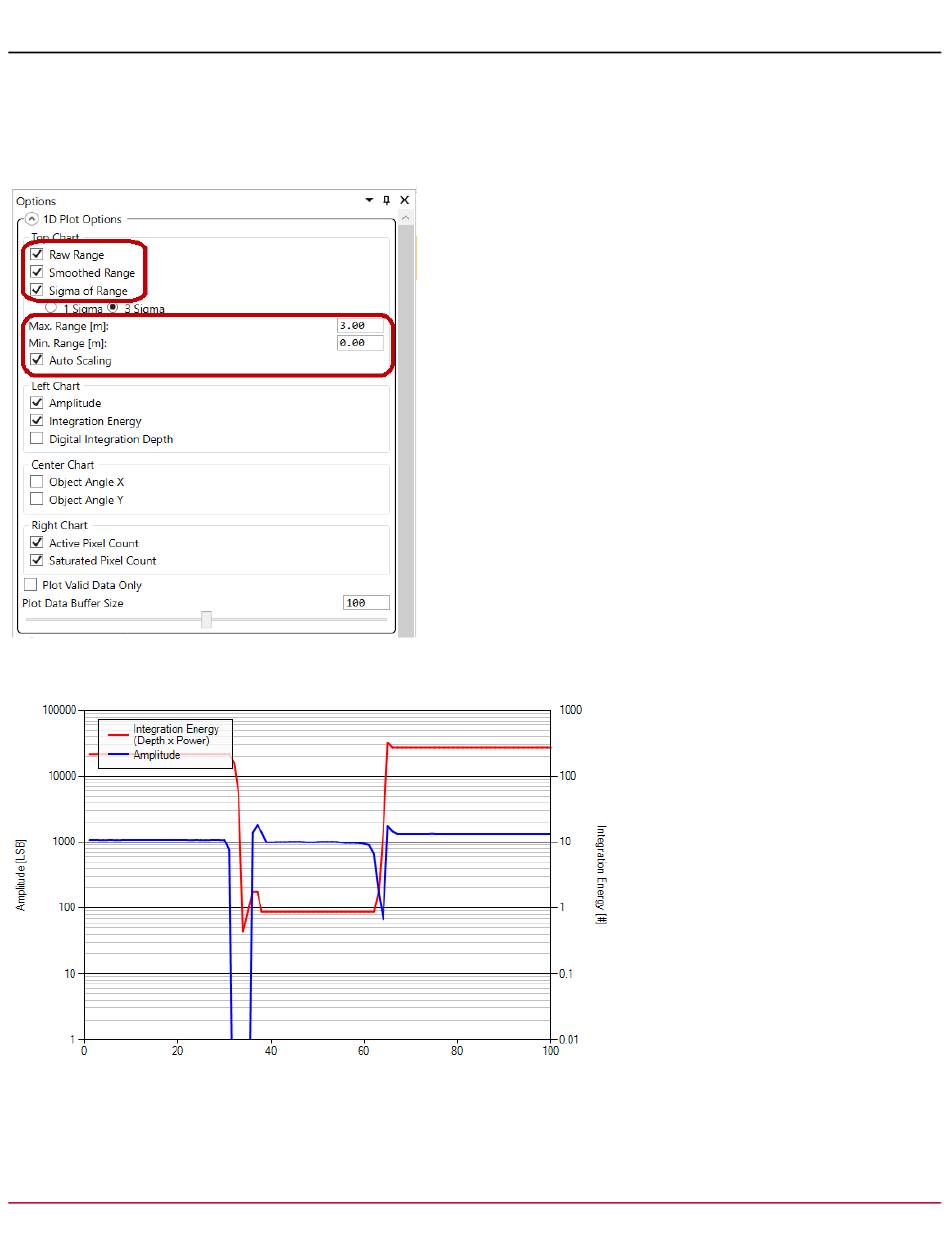

Figure 22: 1D Plot – Center Plot Options
Figure 23: 1D Plot Example
Integration Energy: Calculated by the integration depth per sample multiplied by the optical output power.

Amplitude (maximum) plot: Shows the current maximum measurement signal amplitude, which is determined by all

pixels that are selected by the Pixel Binning Algorithm.
