AFBR-S50 User Guide Evaluation Kit Quick Start Guide

2.4.3 Raw Data View

The Raw Data view is not visible by default; it must be enabled in the View menu first.

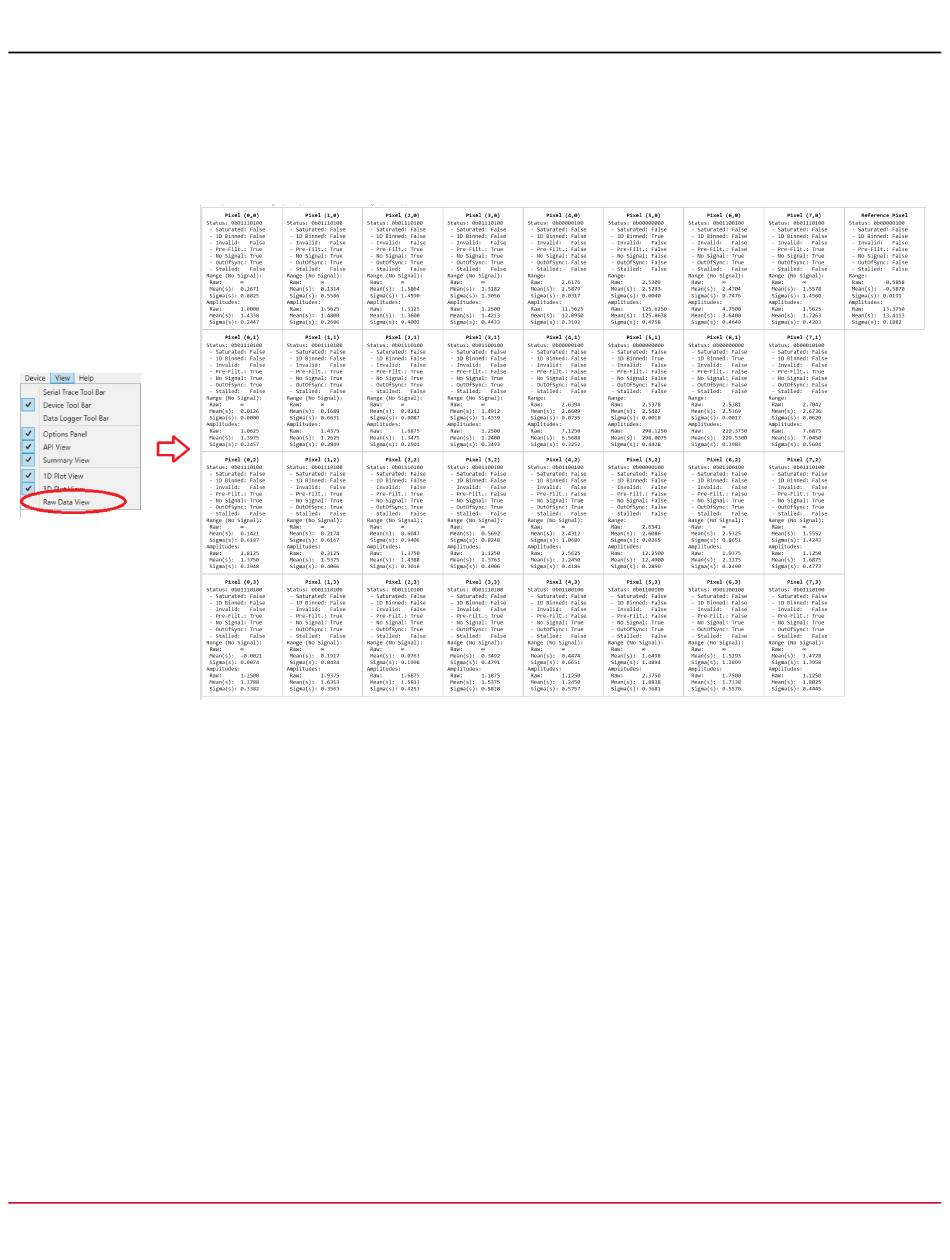

Figure 28: Enabling Raw Data View
In the View menu, select Raw Data View to enable the visibility of the tab.
The Raw Data view provides additional details about each pixel's measured range and amplitude results, including the
corresponding mean values and signal deviations (referred to as sigma). Furthermore, Mean and Sigma of both Raw Range
and Raw Amplitude can be displayed as either SMA or EMA weighted: Mean(s), Mean(e), Sigma(s), Sigma(e). Keep in mind
that the choice between SMA and EMA affects the displayed values of Sigma and Mean in different ways.
