The data logger starts recording once a destination path and file are chosen. In addition, another small menu bar for the data
logger is available.
After clicking Stop, a message appears in the Explorer application with the information and the saved number of samples.

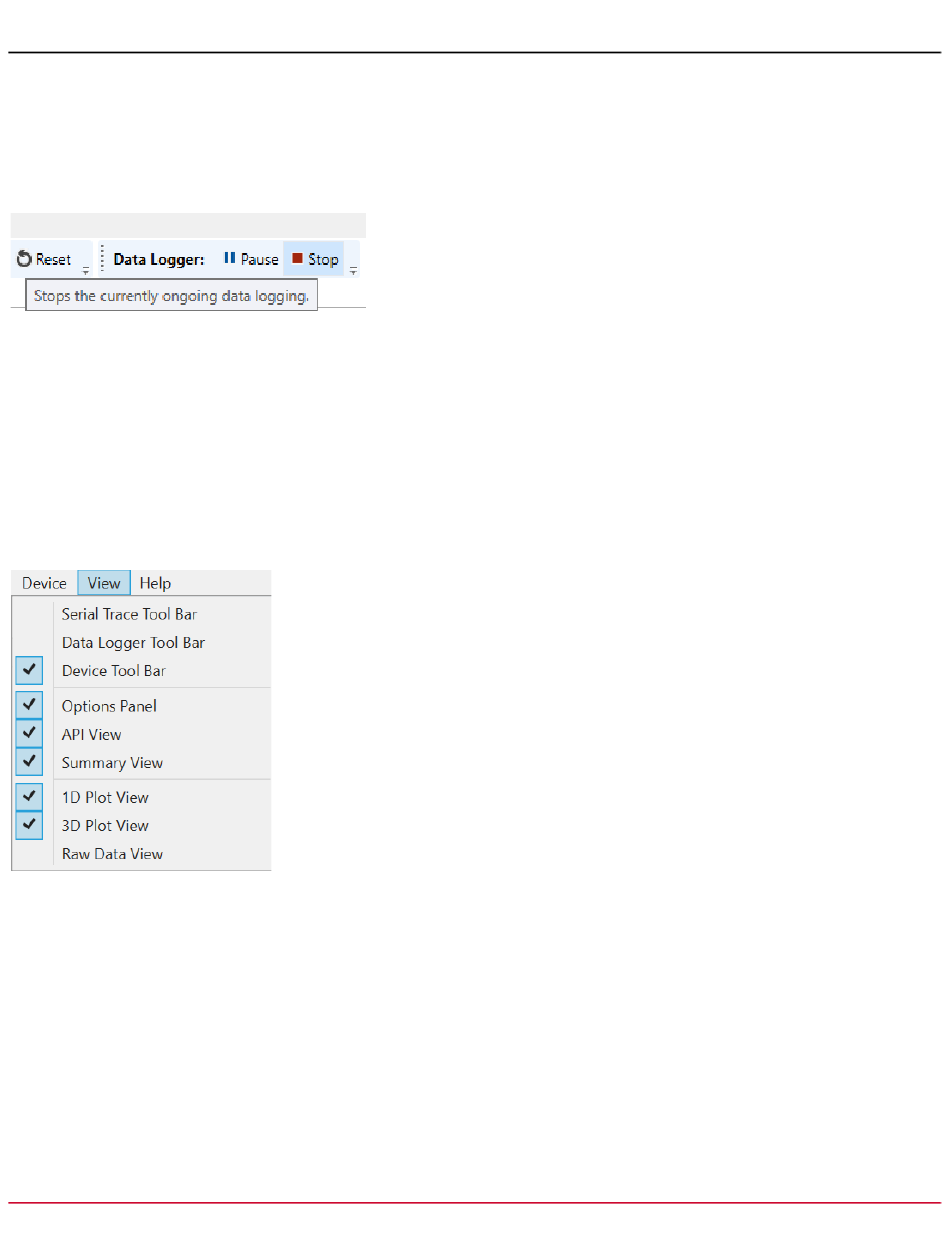

Figure 14: Data Logger Recording Options
NOTE:
The amount of data for the data logger output file can be changed by choosing a different data output mode from
the Configuration API in the API section if Advanced Mode is enabled. To do so, from the Options tab, select API
Options and enable the checkbox.
For formatting reasons, open the created log file either with an advanced text application (for example, Notepad++) or by
importing it directly into a data analysis program. Another helpful debug feature is to perform a serial trace of all the bus
transfers between the microcontroller and the connected device. After the serial trace starts, the application asks for a path
to save the serial trace data. Both the measurement log data and the serial trace are saved as TXT files.
Figure 15: View Menu
Single view modules can be enabled or disabled in the Explorer app with the View menu.
