AFBR-S50 User Guide Evaluation Kit Quick Start Guide
A.3 SCI Error – No Communication to Sensor

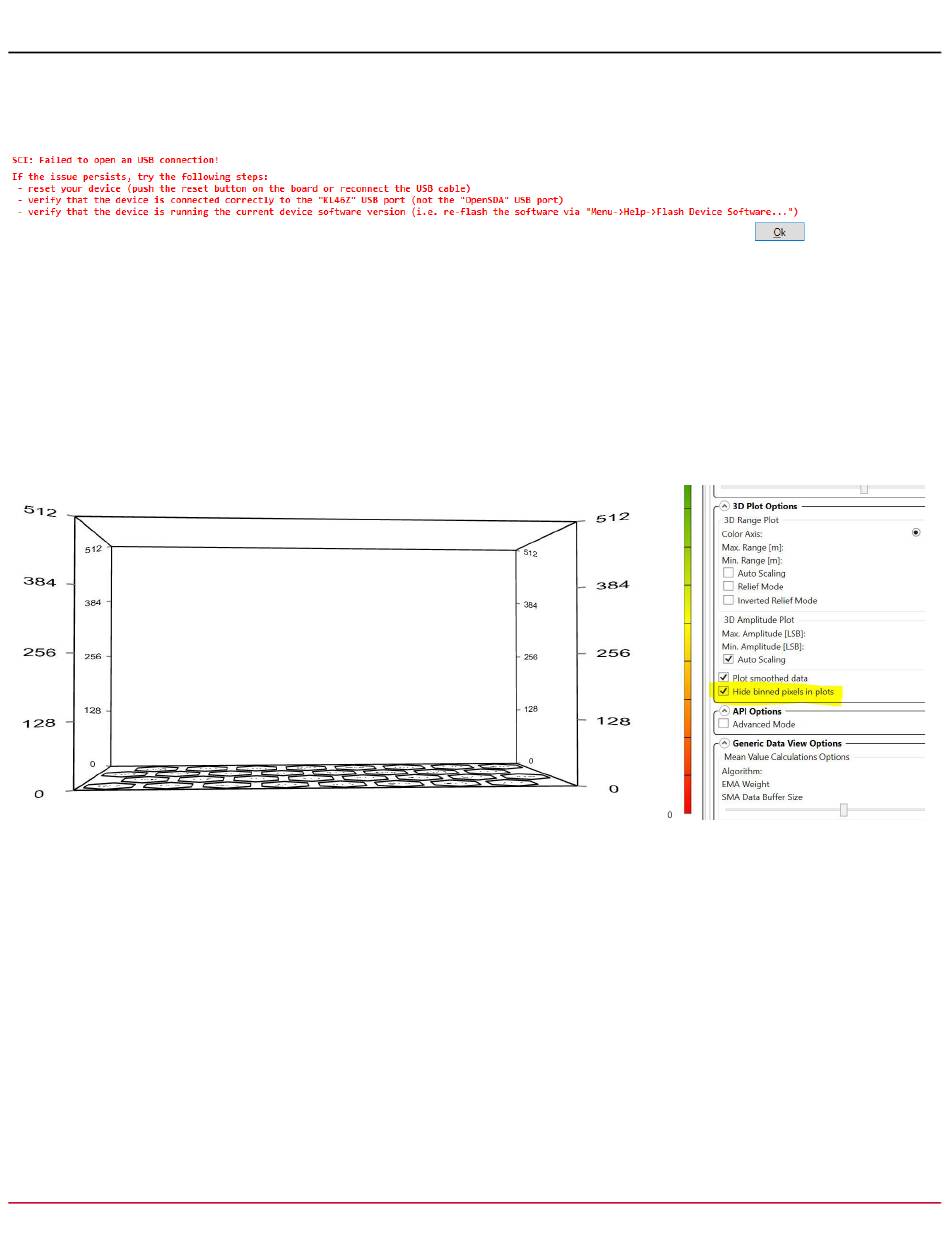

Figure 48: SCI Error
In principle, this message can have multiple causes. Most likely, the USB cable was plugged into the OpenSDA port (see
Figure 7) instead of the KL46Z USB port. Another reason can be that the device software is corrupted and must be flashed
again (see Section A.2, Different Versions of the Explorer and Controller Board). Because this error indicates a serial
communication issue, it is also possible that your sensor is defective or the USB cable might need to be replaced.
A.4 Xtalk Calibration – 3D Plot Not Visible
Figure 49: Xtalk Calibration
If the amplitude chart is empty, the Hide binned pixels in plots checkbox might still be enabled. To see low amplitudes while
performing the Xtalk calibration, make sure that this option is not selected.
Broadcom AFBR-S50-EK-UG104
33
