AFBR-S50 User Guide Evaluation Kit Quick Start Guide

2.5.1.1 Range Offset

This parameter lets you compensate application-specific distance offsets. If the ToF sensor is part of a system that has
another reference edge for assessing the distance, the offset between the sensor and this reference edge must be defined
with the Range Offset parameter.
Formula: Range = RawRange – RangeOffset

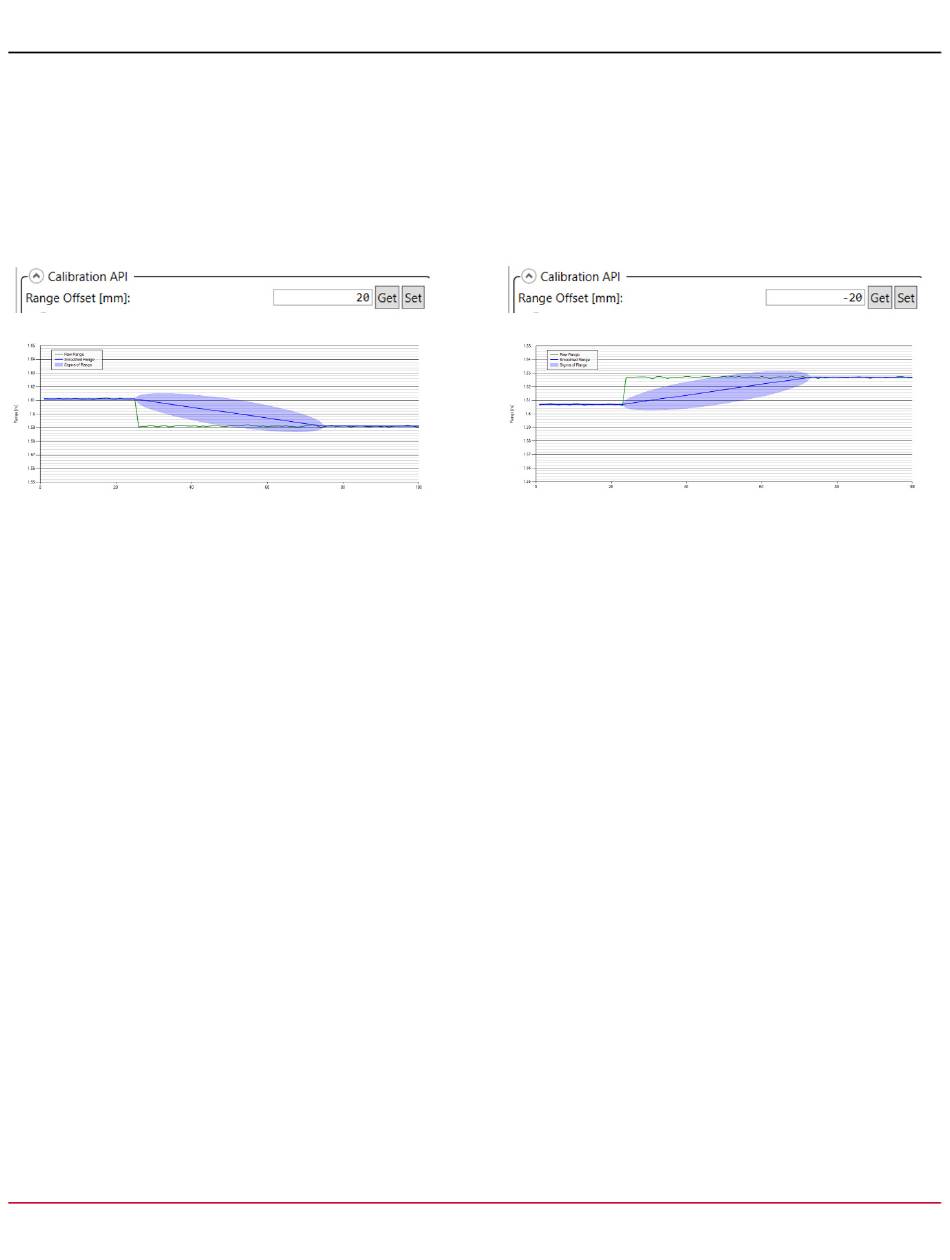

Figure 36: Range Offset
NOTE:
Be careful when setting this parameter because range values might turn negative.
Broadcom AFBR-S50-EK-UG104
26
