AFBR-S50 User Guide
Invalid pixels that do not satisfy the binning criteria will disappear from the plot.

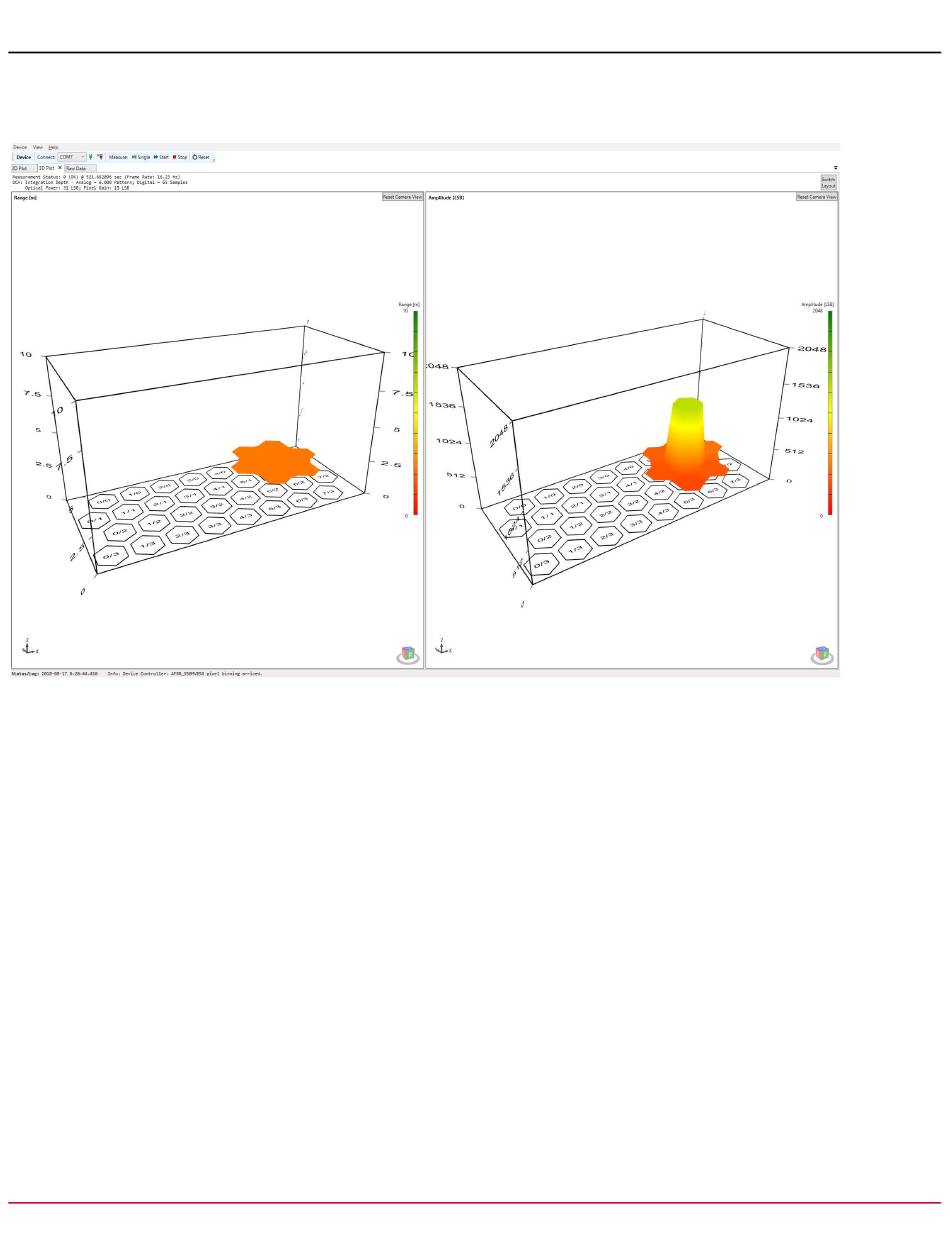

Figure 27: Hidden Binned Pixels
For a closer look at each pixel, zoom in and rotate the 3D plots using the mouse.
To move a plot, click and hold the scroll wheel.

Rotate the plots by clicking and holding the right mouse button.

Use the scroll wheel to zoom in and out.

Double-click the scroll wheel to reset a plot to its default point of view.

