Figure 29: Raw Data View

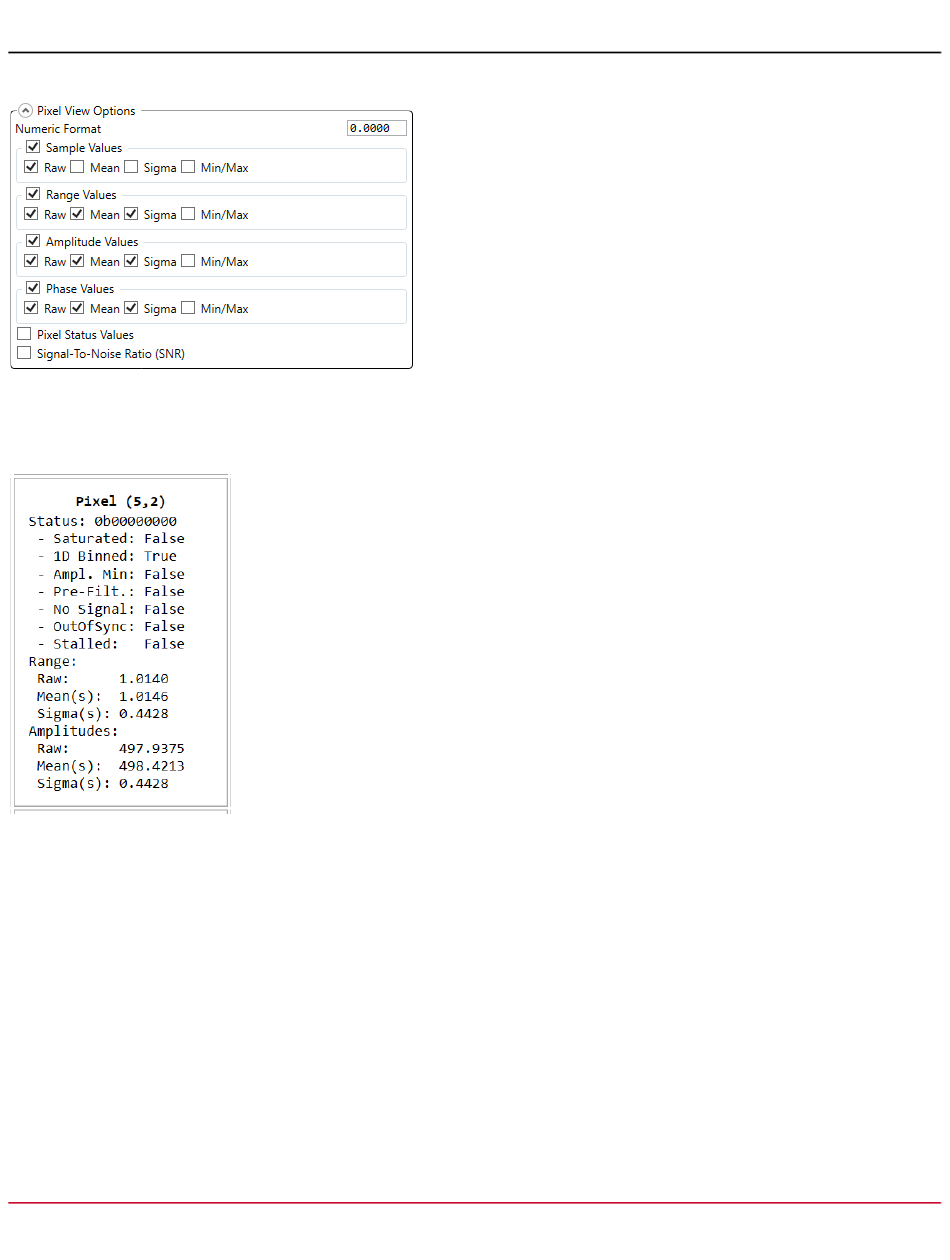

By enabling the Pixel Status Values checkbox, the Raw Data view displays several status flags for each pixel.
Figure 30: Single Pixel Status
For a detailed description of the single statuses, open the API reference manual and type argus_px_status_t in the search
field.
Choose which results to keep visible or hidden by selecting the associated Pixel View Options from the Options panel. In
addition, the numeric format of the displayed results can be adapted.
