A.5 Xtalk Calibration – Amplitude Error

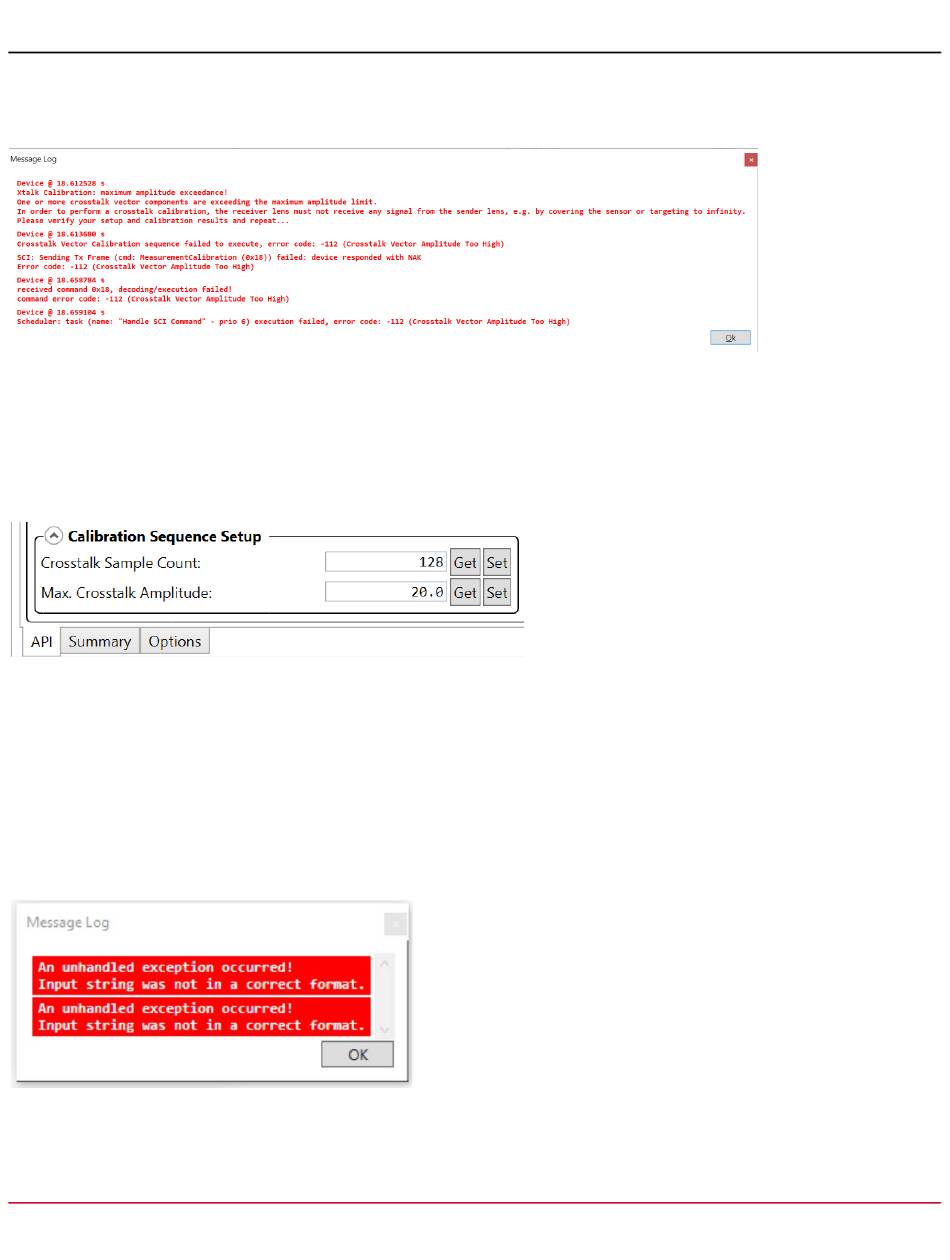

Figure 50: Amplitude Error Message
This error appears when the amplitude exceeds the default maximum amplitude of 20 LSB while running the Xtalk
calibration. For Step 2 and Step 3 of the Xtalk calibration mentioned in the AFBR-S50-XTK Crosstalk Guide (necessary to
compensate cover glasses), it might be necessary to increase this limit. This can be done in the Calibration Sequence
Setup section at the bottom of API tab.
Figure 51: Calibration Sequence Setup Section
If it is not visible, you might need to enable Advanced Mode in the Options tab.
A.6 Wrong Input String Error Message
If the error shown in Figure 52 appears when starting the Explorer, you must change your system language settings to
'english'.
Figure 52: Error: Wrong Input String at Startup
