AFBR-S50 User Guide
2.4.2 3D Plot View
The second tab of the data visualization area opens the 3D Plot view, revealing more pixel-specific information on the
measured range and amplitude in real time.

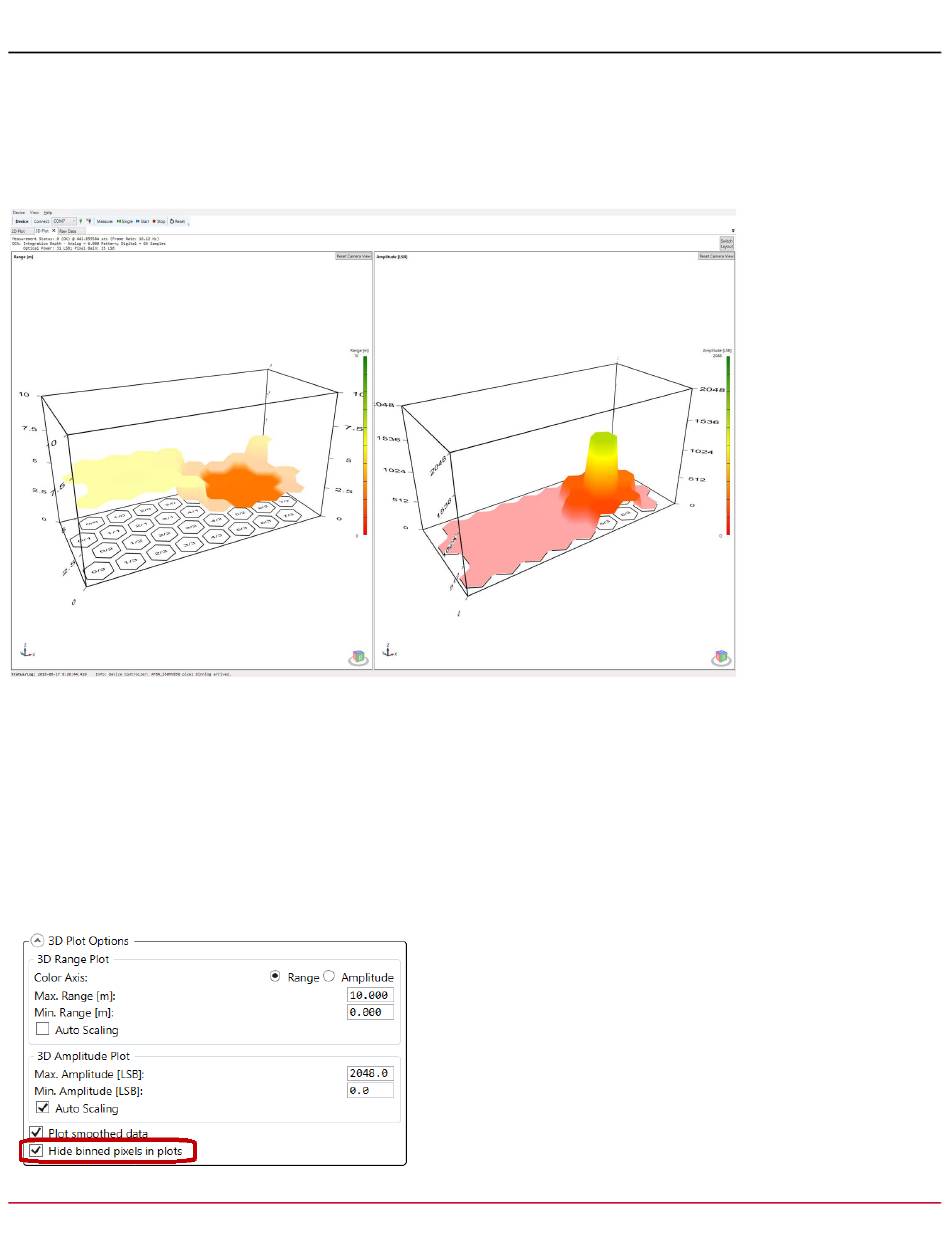

Figure 25: 3D Plot View
This 3D Plot view shows the retrieved measurement signal of every single pixel of the sensor's pixel matrix.
3D Range: The left plot shows the time-based average range values for each available pixel.

3D Amplitude: The right plot shows the time-based average amplitude values for each available pixel.

There is also a color axis for each plot that highlights the corresponding signal magnitude.
Hide binned pixels to see only pixels considered valid for the measurement by enabling the Hide binned pixels in plots
option in the 3D Plot Options tab.
Figure 26: Hide Binned Pixels Option
Broadcom
Evaluation Kit Quick Start Guide
AFBR-S50-EK-UG104
19
