AFBR-S50 User Guide

1.4 Performing a Distance Measurement

Step 1: Start the Explorer Application, AFBR.S50.Explorer.exe, for example, by clicking Windows Menu > AFBR-S50 SDK
> AFBR S50 Explorer.
Step 2: Open a USB connection by clicking the green plug symbol.

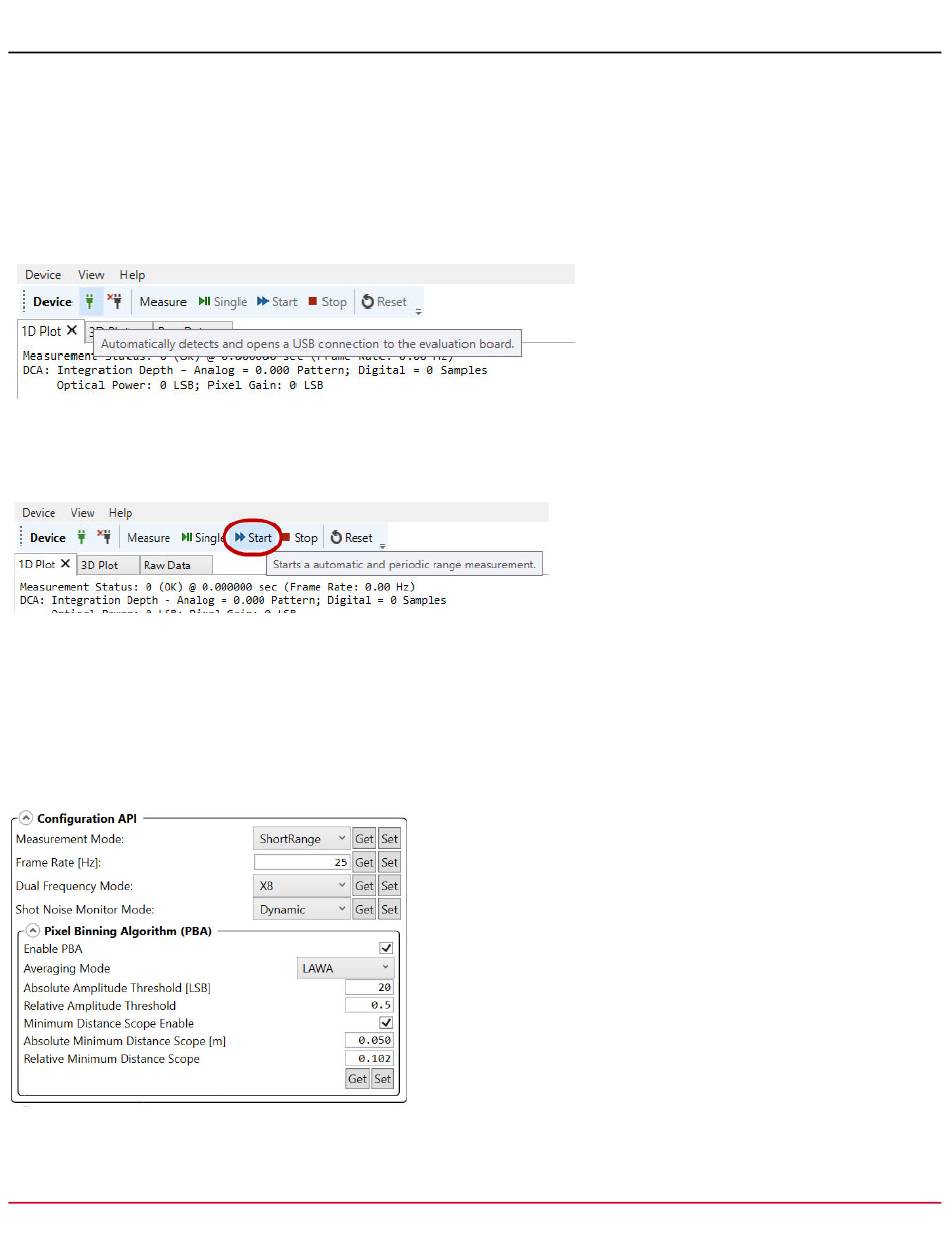

Figure 8: Green Plug Symbol
Step 3: Start the measurement by clicking Start.
Figure 9: Starting the Measurement
ATTENTION: To troubleshoot problems with starting the measurement, see
Step 4: Optionally, set up the device to your needs by choosing, for example, a measurement mode and frame rate both
before and while measuring. The changes will immediately become effective after pressing the respective Set buttons on
the right side of each applicable parameter.
Figure 10: Measurement Mode after a USB Connection Has Been Opened
Information from the Configuration API section is loaded when a device is successfully connected to the explorer
NOTE:
app. The PBA default values differ among the sensor types.
