AFBR-S50 User Guide
The Help menu is used to flash the current AFBR-S50 device software to the connected microcontroller, open the latest
status message log, reset the application values to default, and provide additional links to all necessary documentation on
the SDK.

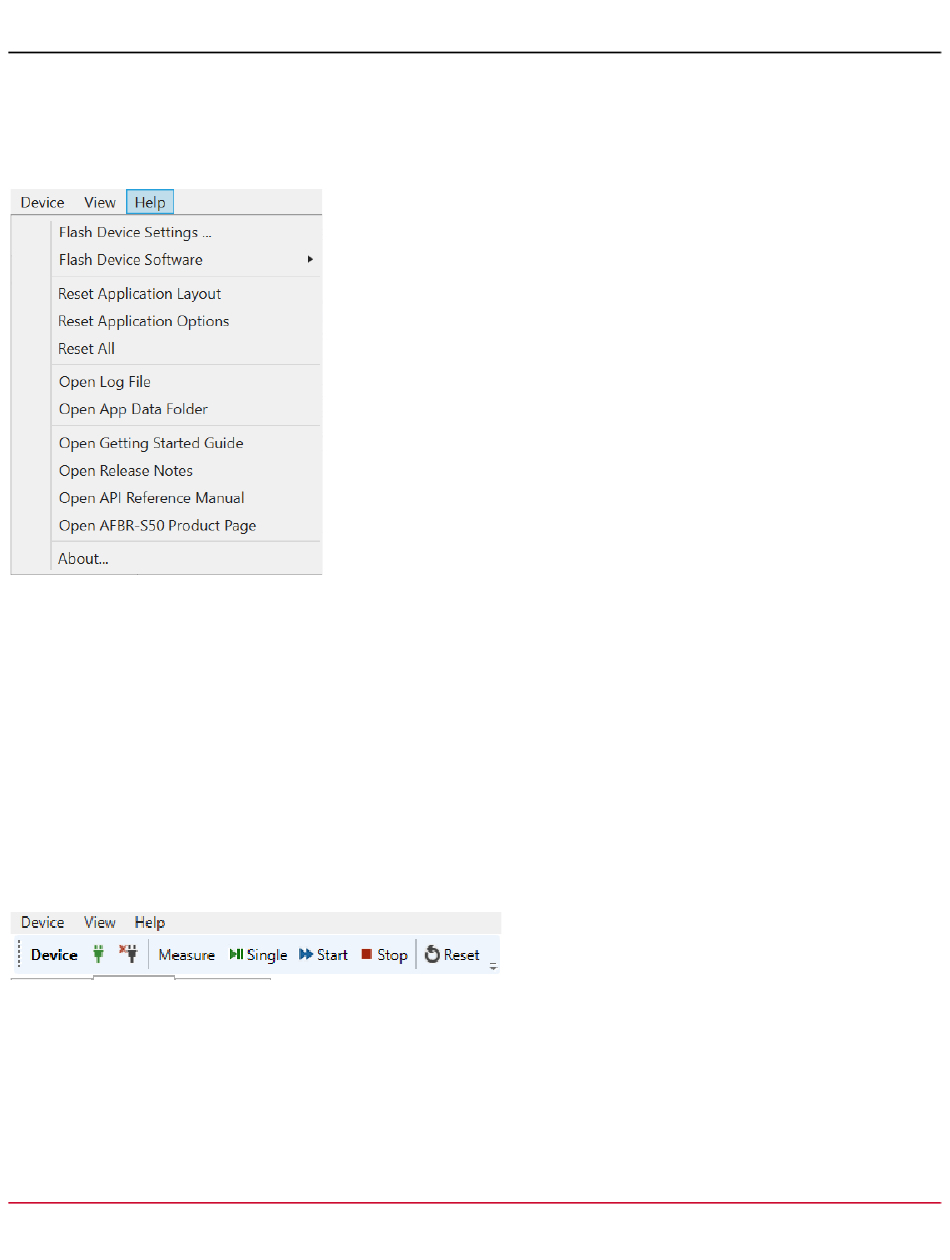

Figure 16: Help Menu

2.3 Controller Tool Bar

The AFBR-S50 controller tool bar provides quick access to the most important operation elements regarding measuring and
resetting the microcontroller. On the left, it delivers simple connect and disconnect options to open and close a connection
via the USB port to the microcontroller on the evaluation kit board.
Single: Sends a trigger signal to the device to perform a single measurement frame. Afterward the device goes into the

idle state.
Start: Starts a periodic measurement loop.

Stop: Stops the periodic measurement loop and makes the device go into the idle state. Note that this option only stops

the measurement loop and prevents new measurements from being triggered. However, it does not stop a currently
ongoing measurement frame.
Figure 17: AFBR-S50 Controller Tool Bar
