AFBR-S50 User Guide Evaluation Kit Quick Start Guide

2.3.3 Raw Data View

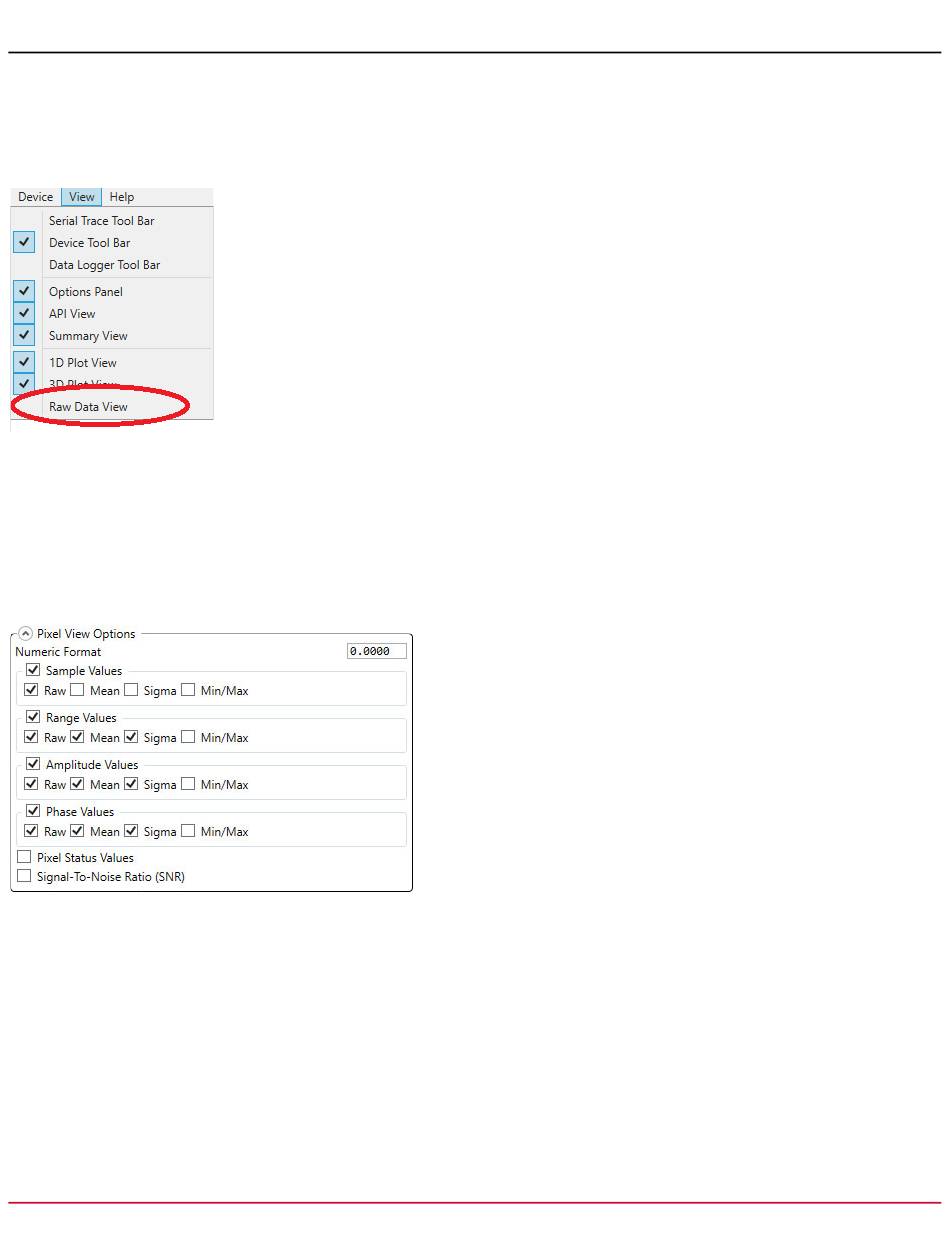

The raw data view is not visible by default, it has to be enabled in the help menu first.
Figure 28: Enabling the Raw Data View
Raw Data view gives additional details about each pixel's measured range and amplitude results including the corresponding
mean values and signal deviations (referred to as sigma). Furthermore, Mean and Sigma of both Raw Range and Raw
Amplitude can be displayed as either SMA or EMA weighted (Mean(s), Mean(e), Sigma(s), Sigma(e)). The above
screenshot shows not all Pixels for reason of better overview. Keep in mind that the choice of SMA and EMA affect the
displayed values of Sigma and Mean in different ways.
Figure 29: Raw Data View
By enabling the Pixel Status Values check box, the Raw data view displays several status flags for each pixel.
Broadcom AFBR-S50-EK-UG102
20
