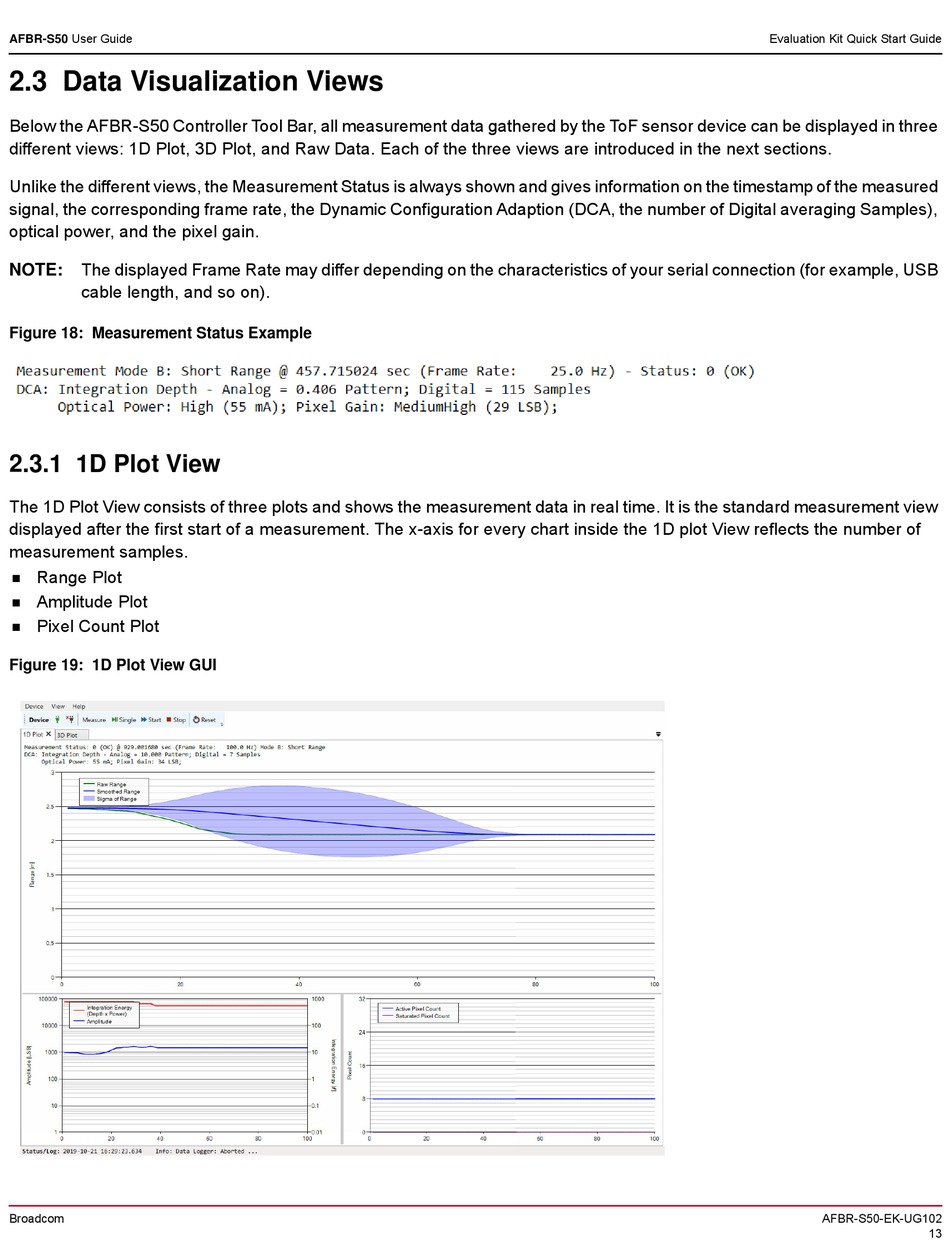

2.3 Data Visualization Views

Below the AFBR-S50 Controller Tool Bar, all measurement data gathered by the ToF sensor device can be displayed in three
different views: 1D Plot, 3D Plot, and Raw Data. Each of the three views are introduced in the next sections.
Unlike the different views, the Measurement Status is always shown and gives information on the timestamp of the measured
signal, the corresponding frame rate, the Dynamic Configuration Adaption (DCA, the number of Digital averaging Samples),
optical power, and the pixel gain.
The displayed Frame Rate may differ depending on the characteristics of your serial connection (for example, USB
NOTE:
cable length, and so on).
Figure 18: Measurement Status Example
2.3.1 1D Plot View
The 1D Plot View consists of three plots and shows the measurement data in real time. It is the standard measurement view
displayed after the first start of a measurement. The x-axis for every chart inside the 1D plot View reflects the number of
measurement samples.
Range Plot

Amplitude Plot

Pixel Count Plot

Figure 19: 1D Plot View GUI
