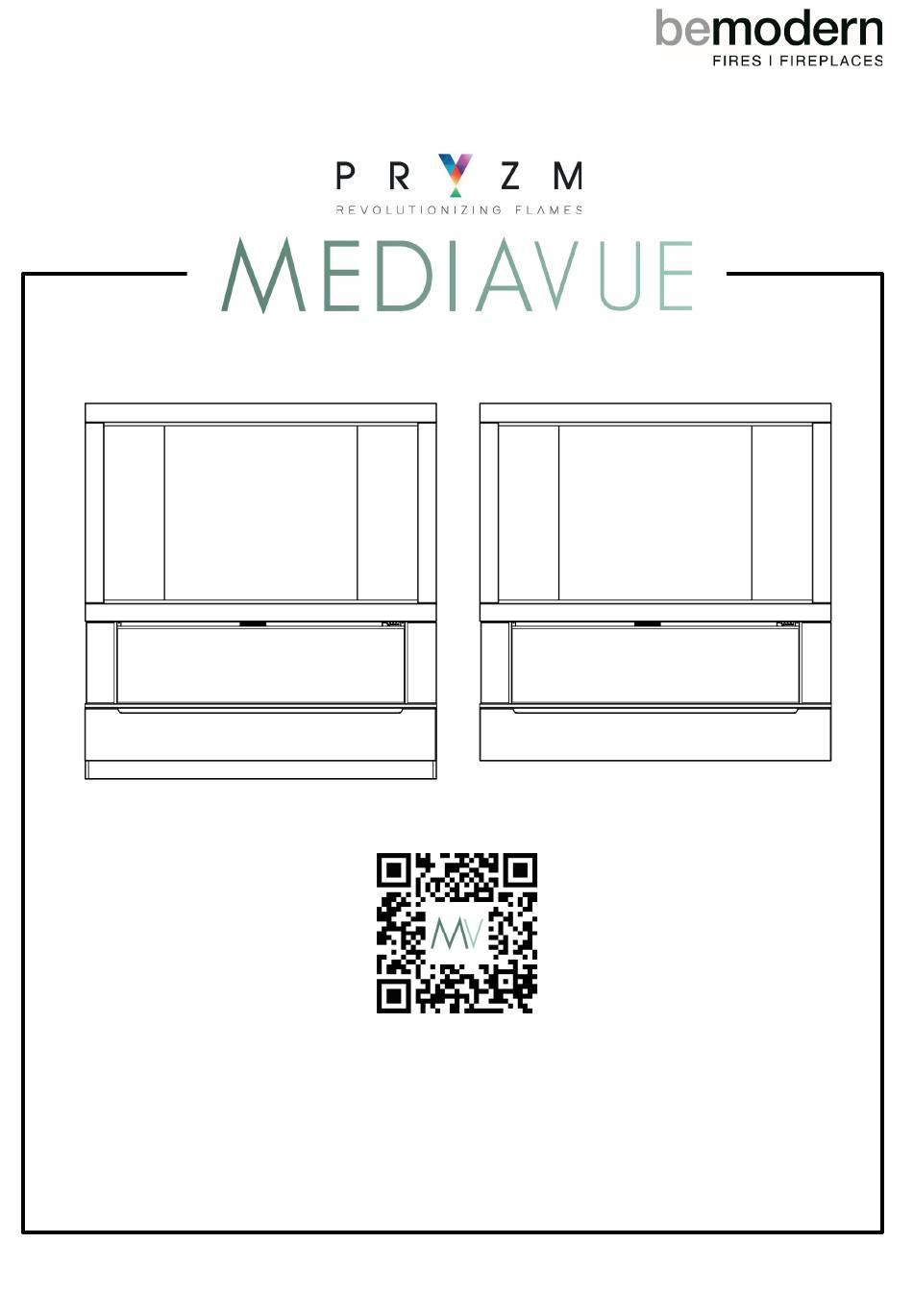

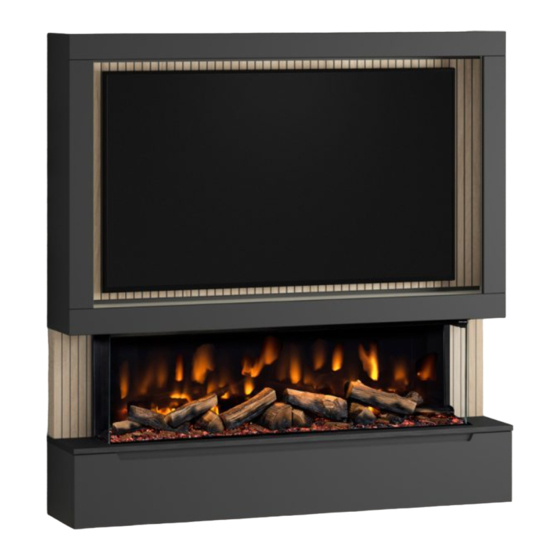

- Page 1 positioned QR- Code for installation guide video Instructions For Installation & Operation 200860_01...
-
Page 2: Table Of Contents
Contents Page Technical Specification What Is In The Box Hardware 4 - 5 Important Safety Information Power Supply Installation Wall Hanging Plates Installation 7 - 8 Floor Standing Installation 8 - 9 Wall Mounted Installation Mounting The Base Unit Unpacking The Fire 12 - 13 Preparing The Fire 14 - 15... -
Page 3: Technical Specification
Technical Specification Note: All dimensions stated above are the minimum requirements for installation in rooms without coving installed. The MediaVue can be installed in rooms with ceiling heights greater than these dimensions. For Wall Hung installations the unit must be installed a minimum of 90mm above floor level. Dimensions Description Floor Standing:... -
Page 4: What Is In The Box
What Is In The Boxes? Box- MediaVue Base Unit Base Unit + Hardware Kit & Fire Support Bracket Box- MediaVue Drawer Styling Kit Styling Kit for the Base Unit - Floor standing & Wall hung options Box- MediaVue TV Unit TV Unit + Hardware Kit Box- MediaVue TV Unit Back Panel TV Unit Back Panel... -
Page 5: Important Safety Information
Hardware - TV Unit 8x -16mm Counter Sunk Screw 4x -Soft Close Hinge 8x -16mm Dome Head Screw 8x -30mm Dome Head Screw 4x -Hinge Plate 4x -Double Wall Hanging 4x -Angle Brackets Plate Important Safety Information Manual Handling BEFORE STARTING THE INSTALLATION OF THE MEDIAVUE, PLEASE READ THE FOLLOWING: CAUTION: This installation is heavy. -
Page 6: Power Supply Installation
Power supply Installation IMPORTANT NOTE: Before starting the installation, consideration will need to be given to the electric supply sockets. They will need routing and installed in the appropriate position for the planned final media setup and fire supply socket requirements. -
Page 7: Wall Hanging Plates Installation
Wall Hanging Plates Installation IMPORTANT NOTE: Wall fixings (i.e. screws/wall plugs etc.) are not supplied as these are crucially dependent upon the type of wall surface the MediaVue suite is going to be fixed too. The installer is therefore responsible for ensuring that suitable fittings are used as well as individual fitting situations and environments. -
Page 8: Floor Standing Installation
Wall Hanging Plates Installation Continued….. Unpack the wall hanging plates which can be found in the Base Unit box and TV Unit box. Referencing Diagram 1. Page 7. mark all the required hanging plate guide lines, using the center line as the datum. Note: The height of the first run of plates may differ from the diagram when mounting the MediaVue higher on the wall. - Page 9 Standing Floor Installation Continued….. Place the right-hand end BASE UNIT TOP iagram panel in position on the righthand gable end of the base unit. The top and rear edges must be flush with the Base Unit top and rear edges. See Diagram 5. Clamp in place with quick clamps at this point.
-
Page 10: Wall Mounted Installation
Wall mounted Installation Unpack the base unit assembly iagram and position top down on the floor. Remove all the drawer boxes from the base unit. To remove the BASE UNIT TOP drawer box assembly. Open the drawer fully. Supporting the drawer weight and push the release button on underside of the drawer runner. -
Page 11: Mounting The Base Unit
Mounting The Base Unit Now that the desired Style Kit is fitted to the Base Unit and the hanging plates have been installed on the wall. To aid the hanging of the Base Unit first screw the hanging bracket arms out away from the Base Unit back panel. -
Page 12: Unpacking The Fire
There is 1x Screw either side of the fire. See Diagram 14 . Large Smal Diagram 14 Please ensure all fixings are present before commencing installation. If anything is missing please call Customer Services on 01914300901 or email us at customerservices@bemodern.co.uk 200860_01... - Page 13 Unpacking The Fire Continued….. Once the screws are removed- the Glass and Glass Bracket can be angled forward from the top of the fire and lifted out of the channel at the base of the glass. Large Note: Place the Glass, Glass Bracket and 2x Screws in a safe place- these will be required later.
-
Page 14: Preparing The Fire
Preparing the Fire 1 Sided (Fully Recessed) Installation The fire comes out the box already set up for 1 sided installation. The 2x Side Panels will be fixed to the fire. See Diagram 19. Side Panels Diagram 19 3 Sided Installation Remove the 14x Screws and the left hand and right hand side panels from the fire. - Page 15 830mm Fly Lead plus 3m LED lights are provided in a set. Note: A compatible LED Light Set is available from Bemodern Ltd. (Code: 050199). Other makes may not be suitable, and will void the warranty. Diagram 23 NOTE: When the LED Light Set is fitted, they should be checked for operation before the access is closed off by the installation.
-
Page 16: Fire Installation & Mounting
Fire Installation and Mounting To mount the fire on the wall. Place iagram the mounting bracket central against the wall resting on the inner gables of the center drawer unit. As with the Base Unit it is very important the mount bracket is central on the Base Unit and horizontally level. -
Page 17: Tv Unit Installation
TV Unit Installation The hanging brackets have been pre-fitted at the factory. To aid with the hanging of the TV Unit first screw the hanging bracket arms out away from the main body of the hanging brackets. Working from the rear of the TV Unit, screw the top adjustment screw clockwise until the arms have move fully out. - Page 18 TV Unit Installation Continued….. Once the TV Unit is in the finished position. To provide extra support and security, 4x optional extra angle-brackets have been supplied in the hardware kit. The angle- brackets can be installed at any position along the inside gable rear edge.
-
Page 19: Base Unit Side Set Installation
Base Unit Side Set Installation At this stage the two Base Unit Side Sets can be unpacked. The magnet catches supplied in the Base Unit hardware kit, can be screwed in place. Screw with 2x 12mm dome head screws in the pilot marked points. - Page 20 TV Unit Back Panel Set Installation Continued….. Securing the center Back Panel. Lift the center Back Panel up and place in the TV Unit frame. The base unit side panel that is not being used for this installation can be used as a packer under the bottom edge.
- Page 21 TV Unit Back Panel Set Installation Continued….. Place the Back Panel side panels face down on a clean work area. Place the 4x hinges in the pre-drill 35mm diameter hinge holes. Using the supplied 16mm screws. Screw the hinges in place with 2x screws per hinge.
-
Page 22: Base Unit Drawer Installation
Base Unit Drawer Installation The last part of the MediaVue installation is to refit the drawer boxes. To attach the boxes, first slide the drawer runner guides out and place the drawer box runner rear edge on to the drawer runner guide about half way along the runner guide. - Page 23 Base Unit Drawer Installation Continued….. To fit the drawer front to the drawer boxes. Lift the drawer front up in line with the Base Unit drawer boxes and with the help of a second person aligning the mounting connectors with the drawer runner connectors.
-
Page 24: Fuel Bed Layout & Log Positioning
Fuel Bed Layout & Log Positioning For instructions on how to dress the fuel bed please follow P24 & P25 here, for the Standard Arteon Log and Fuel bed option pack supplied inside the fire or the separate instruction supplied with the Arteon Enhanced Split Logs and Fuel Bed option pack. -
Page 25: Replacing The Glass
Fuel Bed Layout & Log Positioning Continued….. Positioning the logs- As a starting point follow the example below: Diagram 49- Above shows an example of the 6x log set up for the Arteon 1000 3SL . For the Arteon 15003SL, offset the 1000 3SL 6x log arrangement to the right leaving enough room for 1x smaller log to the right. -
Page 26: Maintenance
Avoid using cleaners or polishes that contain abrasives, solvents, acid and ammonia. Troubleshooting Should you have any queries regarding this product please contact Customer Services on 01914300901 or email us at customerservices@bemodern.co.uk Recycling All cardboard packing is recyclable. IMPORTANT NOTE: Wall fixings (i.e.
