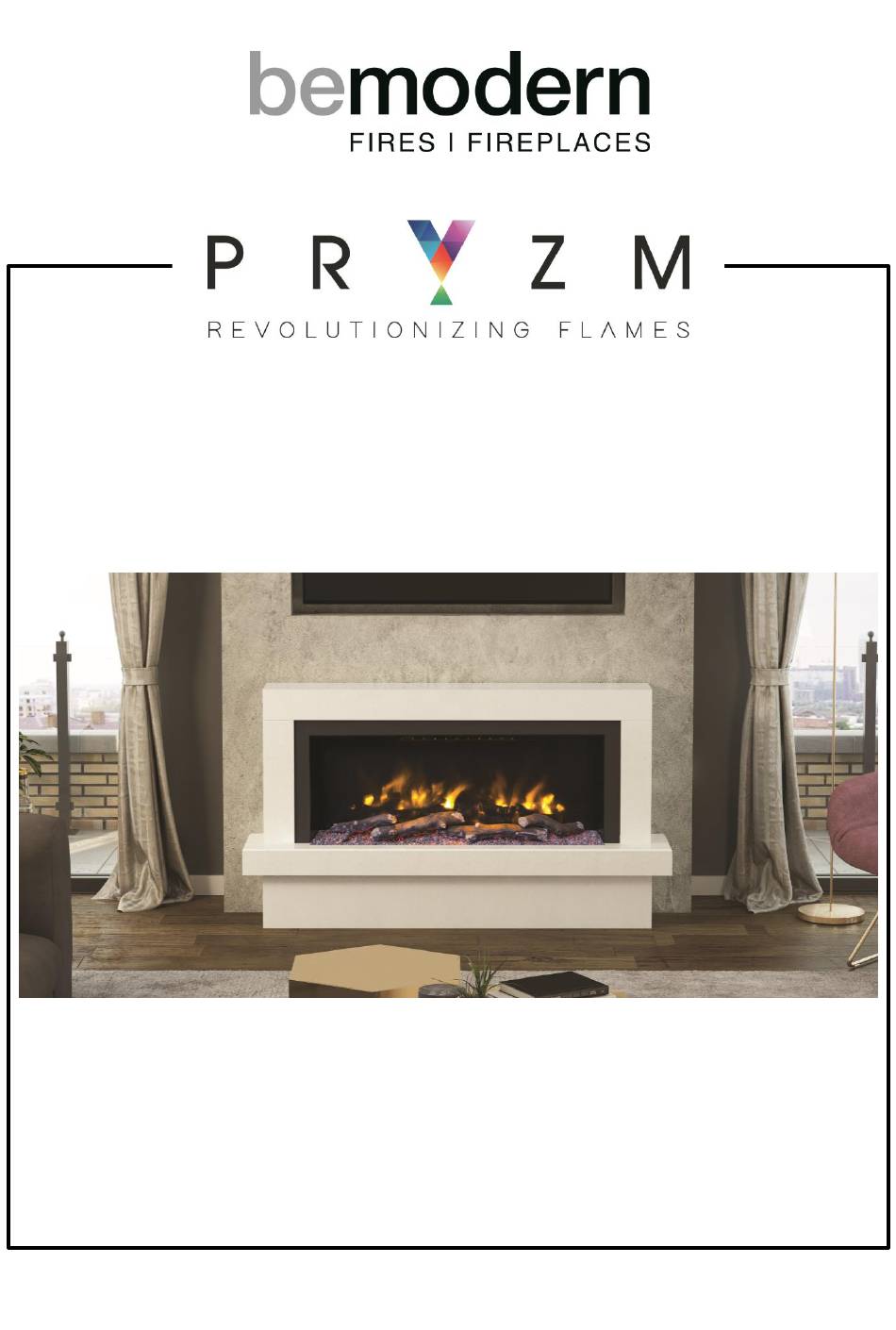

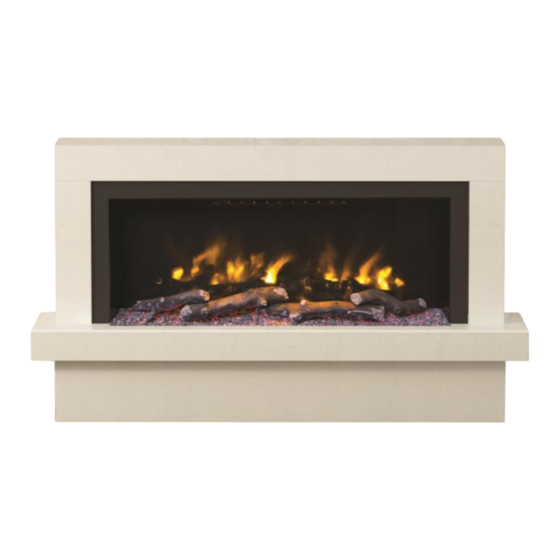

Pryzm 750, 1000

Instructions for use

Patent pending
UK Registered Design
R1 Aug 2019
200788_1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pryzm 750 and is the answer not in the manual?

Questions and answers

Summary of Contents for bemodern Pryzm 750

  • Page 1: Instructions For Use

    Pryzm 750, 1000 Instructions for use Patent pending UK Registered Design R1 Aug 2019 200788_1...
  • Page 2: Table Of Contents

    Contents Tech Specs Safety Info 4 – 5 Dressing the logs (750 Pryzm) 6 – 9 Dressing the logs (100 Pryzm) 10 - 13 User Instructions 14-19 Maintenance General information Guarantee 200788_1...
  • Page 3: Tech Specs

    Technical Specification Model No.: 2653 / 2681 Supply Voltage: AC 230-240V 50Hz Maximum power consumption: 2KW Power for flame effect: 2653: 25W (LED 17W + Motor for flame 8W) 2681: 20.5W (LED 12.5W + Motor for flame 8W) Heat Output: Nominal heat output (Pnom): 2KW Minimum heat output (indicative) (Pmin): 1KW Maximum continuous heat output (Pmax): 2KW...
  • Page 4: Safety Info

    Safety Information Read all of the instructions carefully before using the appliance. For indoor use only This appliance is not suitable for use outside the house and only suitable for well insulated spaces or occasional use. Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool.
  • Page 5 Safety Information (continued) Children and vulnerable people must be supervised at all times when using this appliance, as some parts can become very hot and cause burns. Do not use this appliance in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
  • Page 6: Dressing The Logs (750 Pryzm)

    Dressing the logs Once the installation of your new suite is complete the logs can be positioned. 4 Log Fuel Bed - 750 Pryzm Locate the box containing the logs. Log A Log B Log C Log D 200788_1...
  • Page 7 Dressing the logs (4 logs – 750 Pryzm) Position log A slightly to the right of the centre of the fire Locate log B into log A 200788_1...
  • Page 8 Dressing the logs (4 logs – 750 Pryzm) Locate log C into log B Locate log D into log A 200788_1...
  • Page 9 Dressing the logs (4 logs – 750 Pryzm) Finally twist the interlocked logs into the desired position and centre if required Log C, B, A & D 200788_1...
  • Page 10: Dressing The Logs (100 Pryzm)

    Dressing the logs Once the installation of your new suite is complete the logs can be positioned. 4 Log Fuel Bed - 1000 Pryzm Locate the box containing the logs. Log A Log B Log C Log D 200788_1...
  • Page 11 Dressing the logs (4 logs 1000 PRYZM) Position log B slightly to the right of the centre of the fire Locate log A into log B 200788_1...
  • Page 12 Dressing the logs (4 logs – 1000 Pryzm) Locate log C into log B Log A, B and C Locate log D into log A 200788_1...
  • Page 13 Dressing the logs (4 logs - 1000 Pryzm) Finally twist the interlocked logs into the desired position and centre if required Log D, A, B & C 200788_1...
  • Page 14: User Instructions

    User Instructions WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you suspect the appliance is damaged or has malfunctioned call a qualified service engineer to inspect the appliance, and replace any part of the electrical system if necessary, before reuse.
  • Page 15 User Instructions Continued Manual control panel NOTE: The manual buttons control basic functions, not a full range of controls. Use the remote hand set to carry out all functions. The user controls on appliance are located on the upper right side of the appliance. Turning on the appliance with the main power switch to “—“position.
  • Page 16 User Instructions Continued Remote control operation NOTE: This is a thermostatic remote control. The remote should be in the same room as fireplace and placed on a flat surface. It must be placed away from the fire so the hot air will not blow on it and affect thermostatic reading.
  • Page 17 User Instructions Continued Remote control operation Fuel bed colour Press to enter the fuel bed light adjustment screen. Press the ‘←’ or ‘→’ button to cycle through the 13 colours of fuel bed or the colour-cycle mode. Setting 14 Press the ‘+’ or ‘-’ button to select 1 of the 5 brightness levels for the fuel bed and the OFF setting Normal mode Normal control mode is factory set.
  • Page 18 User Instructions Continued Remote control operation Daily timer mode Press until shows at the upper right corner of the screen, then enter the daily timer heating mode. Hold the button for 8 seconds to enter the daily heating setting. Max 3 timed heating periods per day. Press ‘←’...
  • Page 19 User Instructions Continued Remote control operation Advance mode Under the daily and week timer mode Pressing will turn the heater on or off Window open detection When the transmitter detects a rapid drop in room temperature, it will be judged as a window open, the warning icon will be displayed and the heater will be turned off automatically.
  • Page 20: Maintenance

    Maintenance WARNING: Before any maintenance or whilst cleaning the exterior of the fireplace, the unit should be disconnected from the power supply until it has cooled down. Remote Handset Battery Replacement When the batteries are at full power, the battery symbol will show When the batteries are half full, the battery symbol will show When the batteries are out of power and need replacing immediately, the battery symbol will show...
  • Page 21: General Information

    General Information Environment Meaning of crossed –out wheeled dustbin: Electrical appliances should not be disposed as unsorted municipal waste. Separate collection facilities should be used in the disposal of electrical appliances. Contact your local government for the information about the available collection systems. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
  • Page 22: Guarantee

    On requiring service the purchaser should contact the retailer who supplied your product who will assist and advise you as necessary. Be Modern Ltd. 19/34 Bedesway Bede Industrial Estate Jarrow Tyne and Wear NE32 3BE Tel: (0191) 430 0901 Fax: (0191) 430 9522 http://www.bemodern.com 200788_1...
