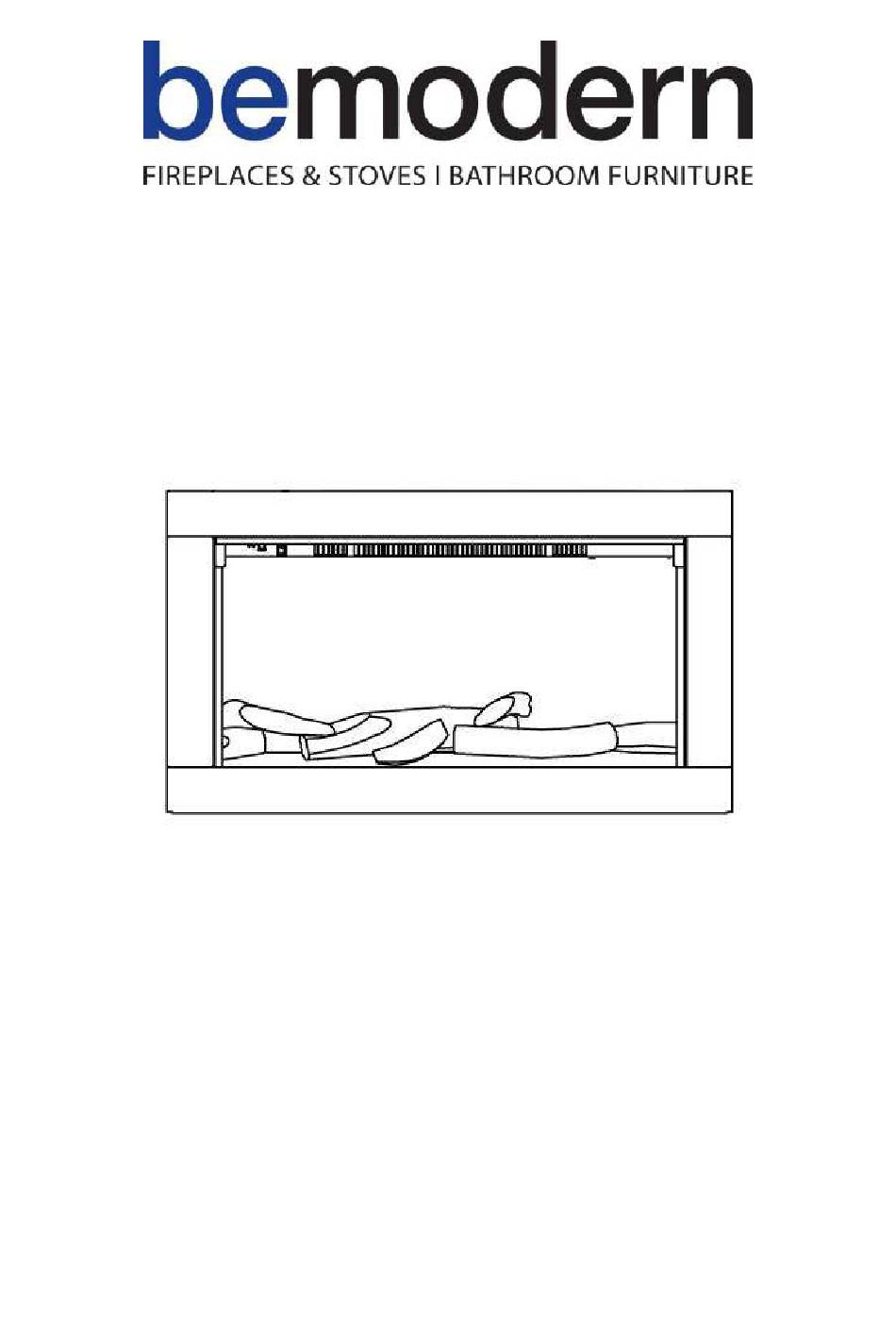

- Page 1 INSET LED Electric Fire Model No.2100 / 2606 INSTALLATION AND OPERATION INSTRUCTIONS Please read the instructions carefully before installation or use and keep for future reference.
-
Page 2: Table Of Contents
CONTENTS 1. Important Safety Information ··································································· 1 - 3 2. Technical Specifications ··················································································4 3. Parts and Hardware ························································································5 4. Appliance Dimensions ·····················································································6 5. Installation Instructions ············································································ 7 - 8 6. Operating Instructions ····················································································9 6a. Manual Control Panel ············································································ 10 6b. Remote Controls ············································································· 11 - 16 7. -
Page 3: Important Safety Information
1. IMPORTANT SAFETY INFORMATION 1.1 Read all of the instructions carefully before using the appliance. 1.2 For indoor use only. This appliance is not suitable for use outside the house and only suitable for well insulated spaces or occasional use. 1.3 Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. - Page 4 1.10 Warning: in order to avoid overheating, do not allow the appliance to be covered or let the air inlet / outlet to become obstructed. 1.11 To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 meter from the air outlet.
- Page 5 1.17 Cleaning and user maintenance shall not be made by children without supervision. 1.18 Children aged from 3 years and less than 8 years only can switch on / off the appliance provided that it has been placed or installed in its intended normal operating position and instructions and supervisions concerning the safe way of the use of the appliance are offered.
-
Page 6: Technical Specifications
2. TECHNICAL SPECIFICATIONS Model No.: 2100/2606 Supply Voltage: AC 230-240V 50Hz Maximum power consumption: 2KW Power for flame effect: 2100:20.5W (LED 12.5W + Motor for flame 8W) 2606:25W (LED 17W + Motor for flame 8W) Heat Output: Nominal heat output (Pnom): 2KW... -
Page 7: Parts And Hardware
3. PARTS AND HARDWARE 3.1 Unpacking the fire carefully, make sure that the appliance is intact with no signs of damage caused by transport and no part has been exposed to water. If in doubt, do not use the appliance and contact an authorised service centre. 3.2 Keep plastic wrapping away from children. -
Page 8: Appliance Dimensions
4. APPLIANCE DIMENSIONS Unit: mm MODEL 2100 746.7 762.7 717.3 2606 1036.7 1052.7 1010 1007.3... -
Page 9: Installation Instructions
13 Amp fuse approved by ASTA to BS 1362 must be used. Before switching on, please read the following fire installation instructions. • In the event of any problems please contact: Be-Modern Helpline on 0191 430-0901. • Fixings supplied (4 off 20 x 10 trim magnets) Model 2100... - Page 10 Model 2606...
-
Page 11: Operating Instructions
6. OPERATING INSTRUCTIONS WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you suspect the appliance is damaged or has malfunctioned call a qualified service engineer to inspect the appliance, and replace any part of the electrical system if necessary, before reuse. -
Page 12: 6A. Manual Control Panel
6a. MANUAL CONTROL PANEL NOTE: The manual buttons control basic functions, not a full range of controls. Use the remote hand set to carry out all functions. 6a.1 The manual buttons are located at the upper right hand-side of the appliance. -
Page 13: 6B. Remote Controls
REMOTE CONTROLS NOTE: This is thermostatic remote control. The remote should be in the same room as fireplace and placed on a flat surface. It must be placed away from the fire so the hot air will not blow on it and affect thermostatic reading. The communication frequency between the fire and remote has already been set up. - Page 14 Flame Effect 6b.4 Press to enter the flame effect adjustment screen. 6b.5 Press the ‘←’ and ‘→’ button to select the 3 kinds of flame effect. 6b.6 Press the ‘+’ and ‘-’ button to select the 5 brightness settings of the flame effect or the OFF setting.
- Page 15 The heater can be automatically run by using daily timer and weekly timer on the remote. Set up Day, Time and Comfortable temperature. 6b.11 Press to turn on the remote handset. Hold the button for 3 seconds to enter the setting screen. 6b.12 Press the ‘←’...
- Page 16 6b.18 To check your daily timer settings, press 6b.19 If the heating needs to be turned off, it will be necessary to go back to the Normal Mode to turn off. Week Timer Heating 6b.20 The following are pre-set heating periods, which can be altered if desired. From Monday to Friday From Saturday to Sunday 06:00 until 08:30...
- Page 17 Advance Mode 6b.25 Under the daily and weekly timer mode press 6b.26 To turn the heater off when the heater is on during a pre-set heating period. 6b.27 To turn the heater on when the heater is off in between pre-set heating periods. Adaptive Start Control 6b.28 According to room temperature and set temperature, the heater will...
- Page 18 Set up the communication between the remote and appliance 6b.31 The below operations should be carried out before programming, when changing to a new remote or in the event the appliance cannot be controlled by the remote: Hold the reset button on the appliance for 3 seconds (pen Point may needed) until you hear 3 short beeps from the unit, release the button.
-
Page 19: Maintenance
7. MAINTENANCE WARNING: Before any maintenance or cleaning of the exterior of the fireplace, the unit should be disconnected from the power supply until it has cooled down. Remote Handset Battery Replacement 7.1 When the batteries are at full power, the battery symbol will show 7.2 When the batteries are half full, the battery symbol will show 7.3 When the batteries are out of power and need replacing immediately, the battery symbol will show... -
Page 20: Others
Frequency: ASK/OOK 433.92MHZ Hardware: Hardware: RF290B V1.2 Maximum transmit power: 10mW RC01-041B01 Hardware:RF290A-TX-V1.3 Software: VI Software: RF290A_C_V0.6.0.hex Be Modern Ltd. 19/34 Bedesway, Bede Industrial Estate, Jarrow, Tyne and Wear NE32 3BE Tel: (0191) 430 0901 Fax: (0191) 430 9522 http://www.bemodern.com...
