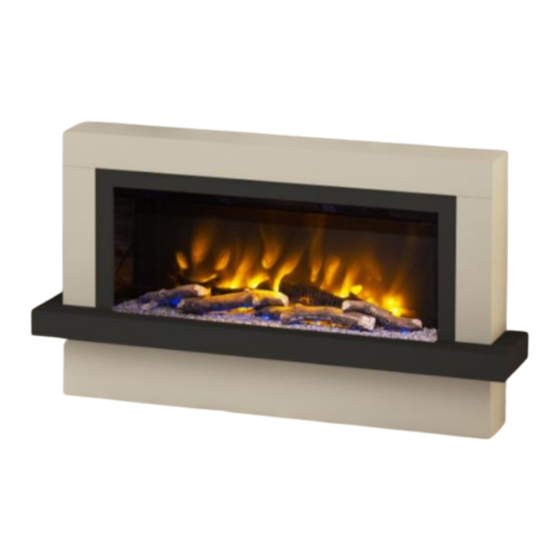

bemodern Pryzm 750 Series Instructions For Installation And Use Manual
Timber suites
Hide thumbs
Also See for Pryzm 750 Series:
- Instructions for use manual (22 pages) ,
- Instructions for installation manual (11 pages)
Subscribe to Our Youtube Channel
Related Manuals for bemodern Pryzm 750 Series
Summary of Contents for bemodern Pryzm 750 Series
- Page 1 Vardo & Huxton Timber Suites Pryzm 750 & 1000 Instructions for installation and use Patent pending UK Registered Design R2 Aug 2019 601227_2...
- Page 2 Contents Tech Specs What’s in the Box Installation – Timber Maintenance 601227_2...
- Page 3 Technical Specification Dimensions Fire Description Logs 57” VARDO 810 / 609 4 LRG 1320mm 277mm 1450mm PRYZM 5D 1000 Timber 53” VARDO Wall mounted & 810 / 609 4 SML 1220mm 277mm 1350mm PRYZM 5D 750 floor standing: with optional plinth 47”...
- Page 4 What’s in the box(s) Installation Booklet x2 Pre-installed Fire 1000 Wall Bracket – Suite support bracket (x1) Attached to the back of the fire Logs 4 Logs Located under the surround or in the leg of surround Mantle Hooks (x2) Screws (x2) Batteries (x2) (dependent on model)
- Page 5 Installation - Timber This is a 2 adult person lift. Do not attempt to lift from the centre of the top panel, lift from under the hearth and underside of the trim as shown below. Diagram 1 1. Remove Rear Bracket Unpack your new suite and remove the rear wall mount bracket which has been screwed to the rear of the fire for transit.
- Page 6 Installation – Timber continued Mantel hooks must be fitted for both floor standing and wall mounted models. Fix the mantel hooks securely in position as indicated in diagram 2 with the correct fixings for your wall material (fixings not supplied). See ‘Important Note’ on page 7. 3.
- Page 7 CAUTION: Abrasive cleaners should not be used on the glass panel. Liquids should not be sprayed directly onto any surface of the unit. Troubleshooting Should you have any queries regarding this product please contact Customer Services on 0191 4300901 or email us at customerservices@bemodern.co.uk Recycling All cardboard packing is recyclable IMPORTANT NOTE: Wall fixings (i.e.
