Unpacking The Fire

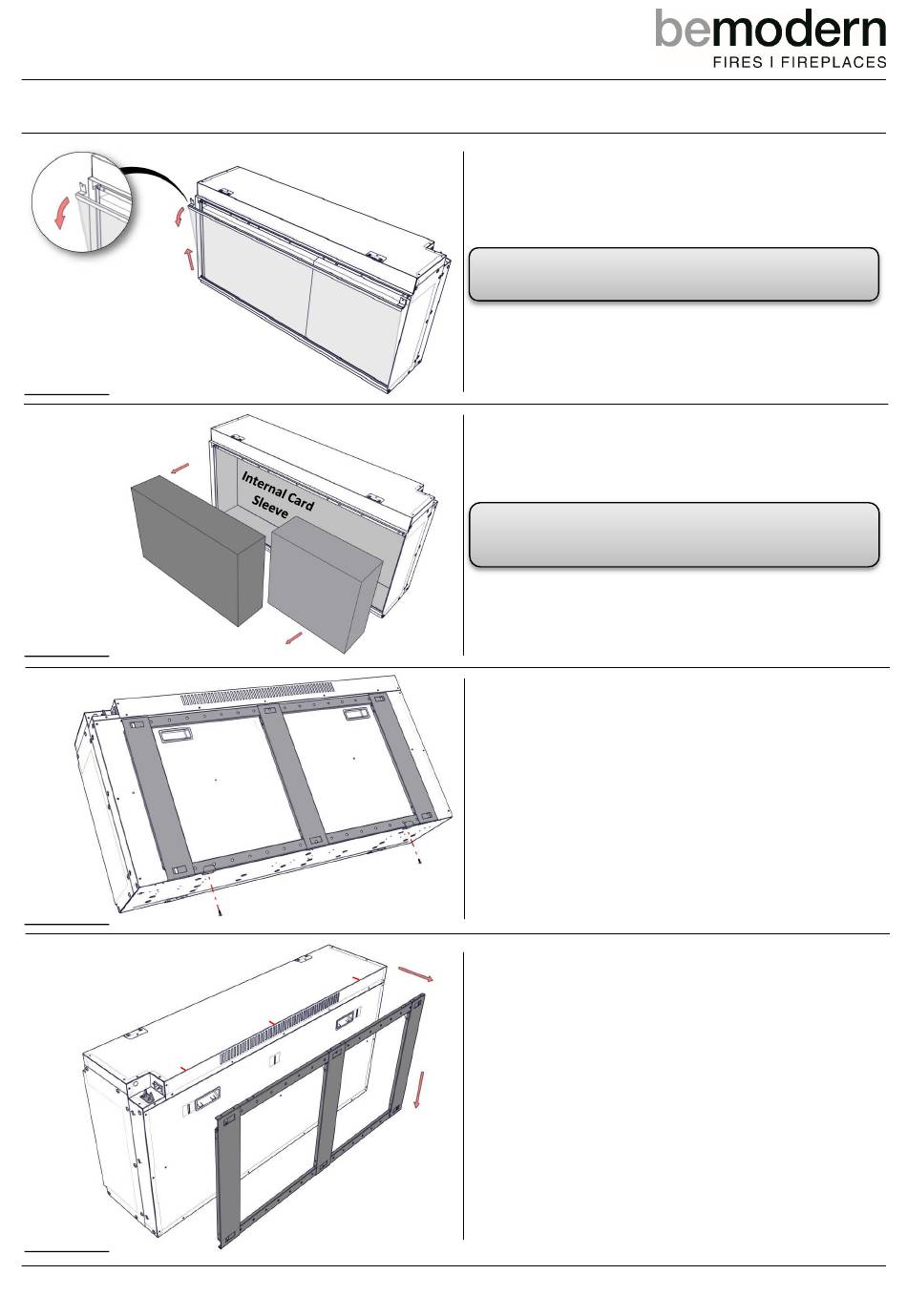

Diagram 15
Large
Box
Diagram 16
Diagram 17
Diagram 18
Continued.....
Large
Box
Small
Box
l
Smal
Box
200860_01
Once the screws are removed- the Glass and Glass
Bracket can be angled forward from the top of the
fire and lifted out of the channel at the base of the
glass.
Note:
Place the Glass, Glass Bracket and 2x Screws in a
safe place- these will be required later.
See Diagram 15.
Remove the 2x Cardboard Boxes from inside the fire
and depending on the model purchased, check the
contents.
Tip
- Leave the protective internal card sleeve in place.
This will help keep the internal of the fire clean during
installation.
See Diagram 16.
For installation into the MediaVue, the rear
mounting bracket must be first removed from the
fire.
With the fire positioned on the floor lean the fire
forward and remove the 2x Screws holding the
bracket in place. These screw fixings will not be re-
used in this installation.
See Diagram 17.
Once the screws are removed, lower the mount
bracket and lift the bracket away from the rear of
the fire. Place mounting bracket safely to one side
as this will be mounted to the wall later in this
installation
.
See Diagram 18.
Note: Adding guide mark lines to the top of the fire
and wall in line with the hook positions will help
with the fire installation
