Preparing the Fire

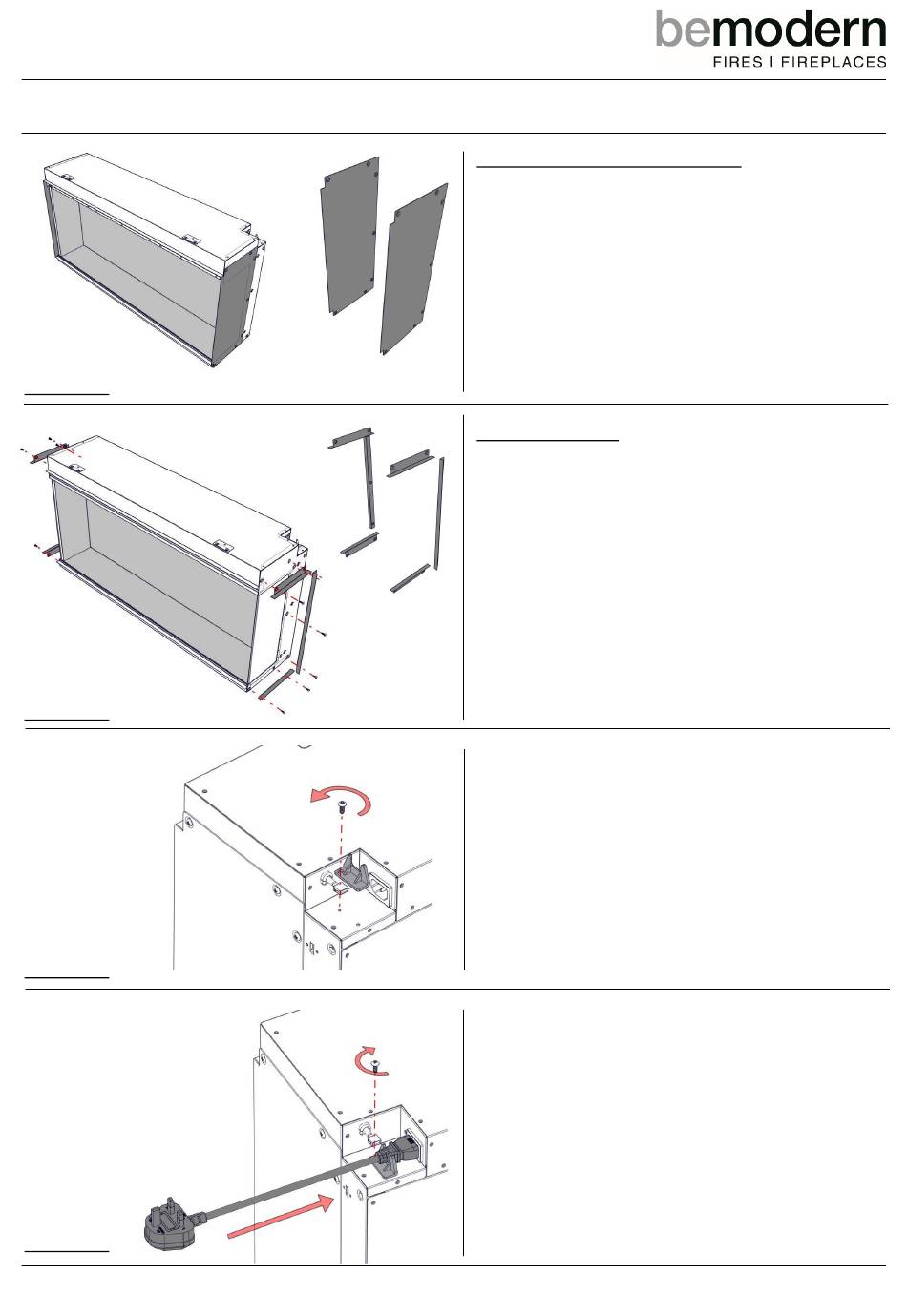

Diagram 19
Diagram 20
Diagram 21
Diagram 22
1 Sided (Fully Recessed) Installation
The fire comes out the box already set up for 1
sided installation.
The 2x Side Panels will be fixed to the fire.
See Diagram 19.
Side
Panels
3 Sided Installation
Remove the 14x Screws and the left hand and right
hand side panels from the fire.
Locate the 4x Small Side Brackets and 2x Large Side
Brackets and fix in place using the previously removed
14x Screws.
See Diagram 20.
Before fitting the fire ensure the power cable is
installed.
Remove the 1x Screw holding the power cable fixing
clip in place.
See Diagram 21.
Once removed place the cable clip under the IEC
end of the power cable - insert the IEC into the
connector port on the fire.
Finally screw the cable clip back in place.
See Diagram 22.
