Standing
Floor
Place the right-hand end
panel in position on the
righthand gable end of the
base unit. The top and rear
edges must be flush with the
Base Unit top and rear
edges. See Diagram 5.
Clamp in place with quick
clamps at this point. If you
do not have clamps, have a
second person support the
end panels while screwing
together. Using the 4x
supplied 30mm dome head
screws (it will help to pilot
drill the holes). See Diagram
5 & 6. Screw through the
gable end panel and in to
the cabinet end panel,
securing the panel in place.
Slide the plinth front panel
on to the dowel / cam bolts.
Position the lefthand cabinet
end panel on the lefthand
gable end with the dowel /
cam bolts located in the
plinth front panel. Screw in
place as with the right-hand
side, using the supplied
cams. Place the cams over
the cam bolt head through
the rear 15mm holes in the
plinth front panel and turn
180 degrees to lock in
position. Confirm the plinth
front panel is parallel to the
cabinet front and screw the
2x L-brackets on to the Base
Unit cabinet base. See
Diagram 7.
Next step is Mounting the
Base Unit. See Page 11.
Installation
Continued.....

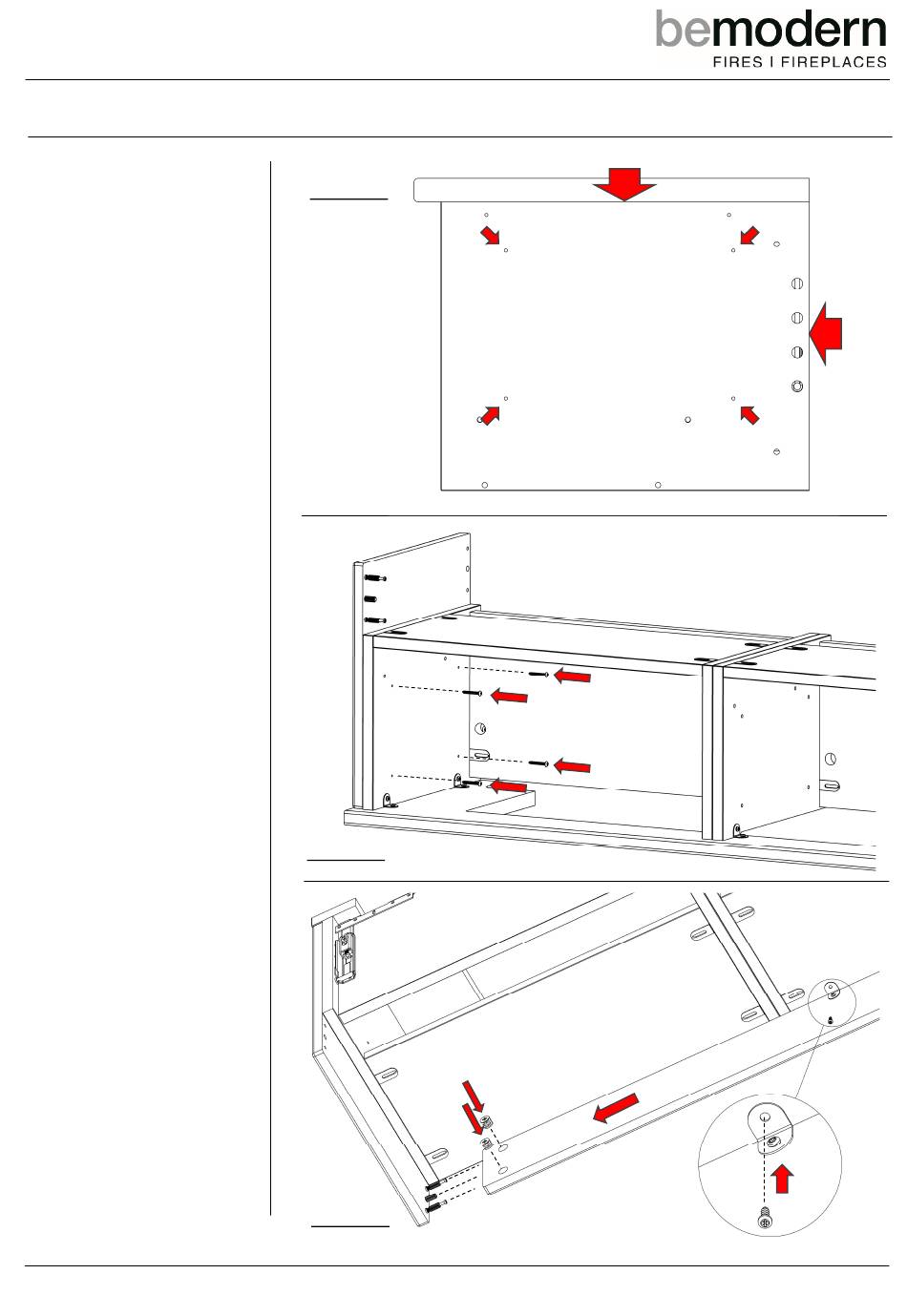

D 5
