Base Unit Drawer Installation

The last part of the MediaVue
installation is to refit the
drawer boxes. To attach the
boxes, first slide the drawer
runner guides out and place
the drawer box runner rear
edge on to the drawer runner
guide about half way along
the runner guide. Then lower
the draw box down on to the
runner guides and slide the
complete assembly back until
they click in place. The drawer
box and runners should move
in and out as one. Repeat for
the three drawer boxes and
confirm the drawer boxes are
moving in and out smoothly.

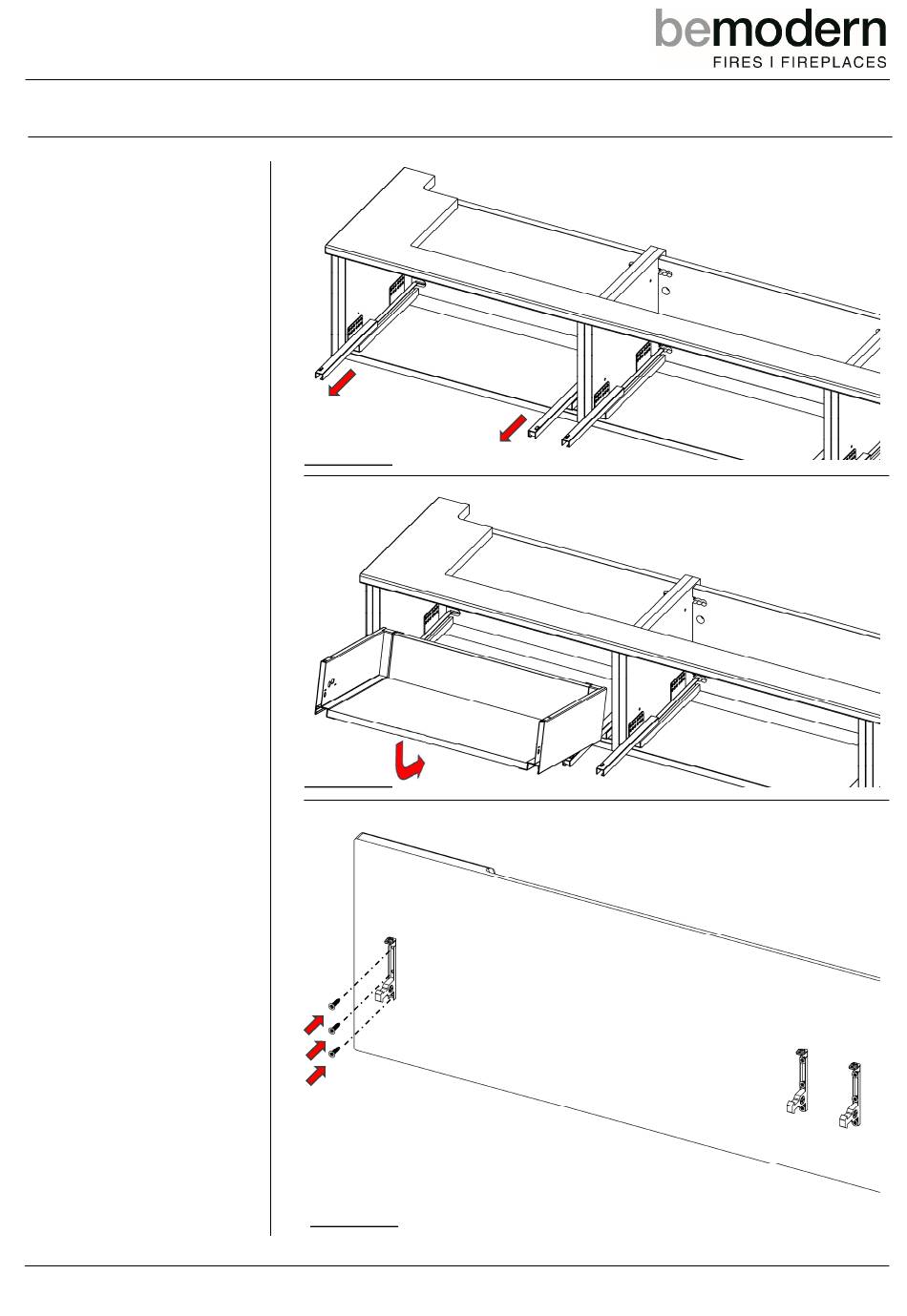

See Diagram 37 & 38.
Locate the Style Kit Drawer
Front panel, stored safety in
an earlier step and lay it flat
on a clean work area. Screw
the 6x mounting connectors,
(supplied in the Base Unit
hardware kit) to the Drawer
Front Panel. The drawer front
is pre-drilled with 2x pilot
holes per mounting
connector. First screw the
mount connector in place
through the two bottom
holes. Once the mount
connector is fixed securely in
place, the third top screw can
be added. See Diagram 39.
D 37
iagram
D 38
iagram
D 39
iagram
