Related Manuals for bemodern Arteon 4119
Summary of Contents for bemodern Arteon 4119

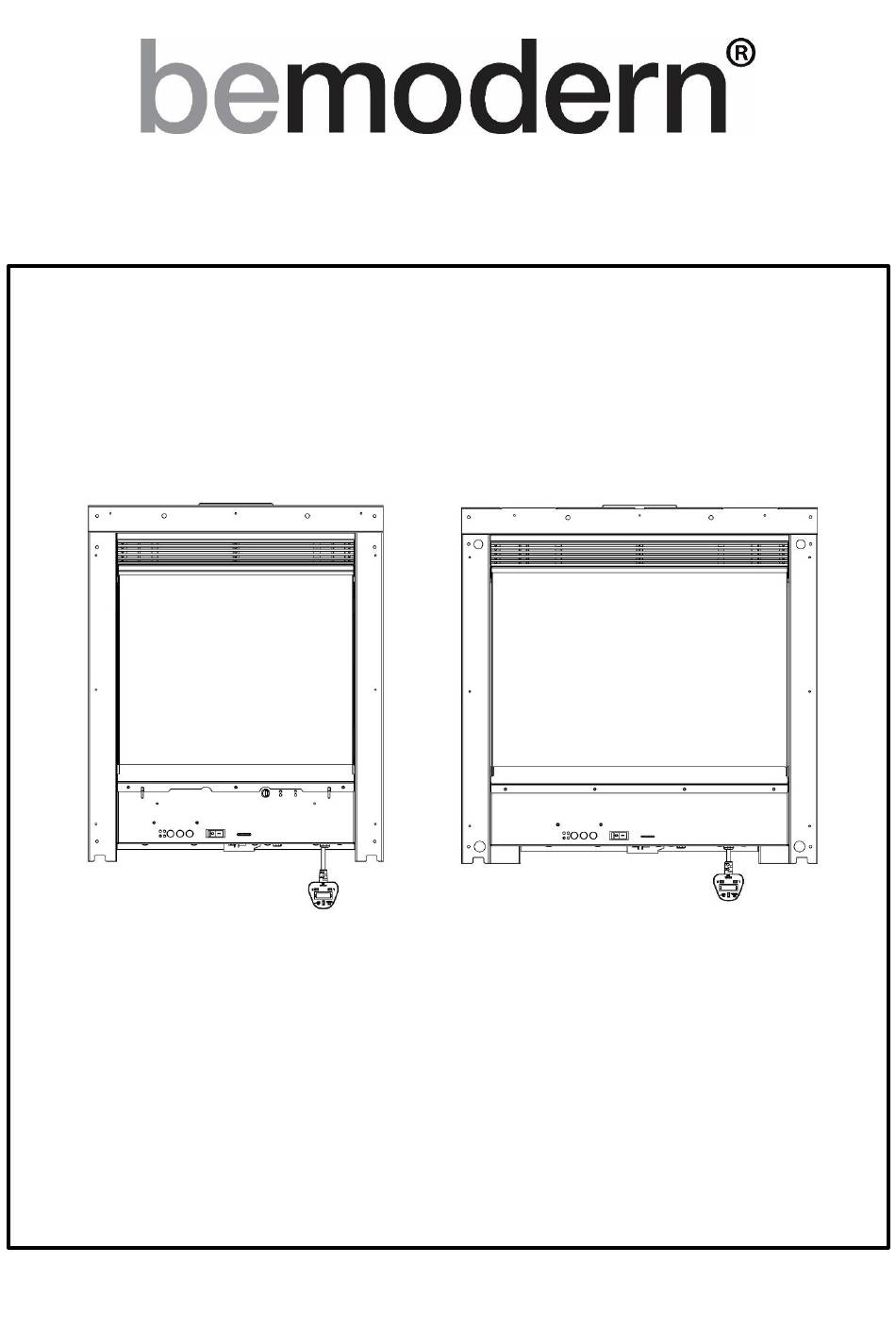

- Page 1 16”, 22-16”, Arteon Electric Fires Prior to installing this product locate the data label and note the model and serial number. This is required when registering your guarantee. Model:____________________ Serial Number:___________________________ Instructions for Use R1 Aug / 22...
- Page 2 Technical Specification Model No: 4119 (16”), 4112 (22”-16”), Supply Voltage: AC 230-240V 50Hz, Maximum power consumption: 2016W. Model: 4119 4112 Power for Flame Effect 2.4w 2.4w Power for Fuel Bed Power for Down Light Power for Mood Light Heat Output Model 4119 4112...
-
Page 3: Important Safety Information
Important Safety Information Read all the instructions carefully before using the appliance. For indoor use only. This appliance is not suitable for use outside the house and only suitable for well insulated spaces or occasional use. Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. Do not use this fire as a free-standing appliance. - Page 4 Important Safety Information Continued….. Do not use this fire in rooms that have explosive fumes in them (for example petrol), or if you are using solvents, glue, aerosol spray or in flammable paints, as these may catch fire. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 5 User Instructions WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you suspect the appliance is damaged or has malfunctioned call a qualified service engineer to inspect the appliance, and replace any part of the electrical system if necessary, before reuse. WARNING! To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 meter from the air outlet.
- Page 6 User Instructions – Manual Control NOTE: Image below shows location of buttons on 16” and 22-16” version. Wi-Fi pairing button Main ON / OFF Switch Heater Low, High, Off All lights On / Off Flame effect On, change colour x 3, Off NOTE: The manual buttons control basic functions, not a full range of controls.
- Page 7 User Instructions – Remote Control Power Used to turn on and off all the lighting effects. Button Used to turn on the flame effect function. There are total three flame effects: high power yellow, high power Flame yellow + amber, high power red and off. Press “←” “→”buttons to choose the type of flame, press “+”...
- Page 8 User Instructions - APP Control Download the APP and Register an account 2. Register an account 1. Download "My Pryzm" APP 3. Choose your country. Enter your mobile 4. Enter the verification code. number or a valid Email address to get verification code.
- Page 9 User Instructions - APP Control Add a device 1. Click Add Device or “+” 2. Download "My Pryzm" APP 3. Select Wi-Fi network and enter the password, click “Next” Note: Make sure your router is using a 2.4 GHz channel. The distance between the router and fireplace isn't less than 50cm.
- Page 10 User Instructions - APP Control Add a device - continued 6. Start to add device 7. Once added the fuel bed will 8. Click "Done" to complete turn green and stop flashing Pairing 8. If the pairing fails in EZ 9.
- Page 11 User Instructions - APP Control Add a device - continued 10. Choose the AP Mode, 11. Click "Go to Connect" 12. Choose a Wi-Fi called confirm the indicator is flashing "SmartLife-XXX". and click "Next". 13. Go back to the APP. Start 14.
- Page 12 User Instructions - APP Control Add a device - continued 16. Click the name of fireplace to enter the home screen 200827_1...
- Page 13 User Instructions - APP Control Using the APP - Home Screen Flame mode Heater mode Note: The AUTO mode will only work when you set the daily / weekly timer for the flame effect or heater. Use the slide bar to turn off / on Using the APP - Changing the Flame Effect Colour the lights Note: The slider under the flame effect colour options controls the brightness from 0% (off) to 100%.
- Page 14 User Instructions - APP Control Using the APP - Changing the Fuel Bed Colour Use the slide bar to turn off / on the lights Use the slide bar to turn off / on Using the APP - Changing the Downlight Colour the lights Note: The slider under the colour options controls the brightness of the lights from 0% (off) to 100%.
- Page 15 User Instructions - APP Control Using the APP - Changing the optional mood light Colour Use the slide bar to turn off / on the lights Note: The slider under the colour options controls the brightness of the lights from 0% (off) to 100%. 200827_1...
- Page 16 User Instructions - APP Control Using the APP - Setting a flame effect program. Up to 4 time periods per day with 3 different weekly schedules can be programmed 200827_1...
- Page 17 User Instructions - APP Control Using the APP – Setting temperature unit Manually changing the temperature Using the APP – Setting a heating program. Up to 4 time periods per day with 3 different weekly schedules can be programmed 200827_1...
- Page 18 User Instructions - APP Control Using the APP - Setting a heating program continued Using the APP – Setting the timer 200827_1...
- Page 19 User Instructions - APP Control Using the APP - Renaming your device 1. Click the 2. Click the you can create a new name for your device Using the APP – Creating a “Home” 3. Enter a home name, select the 4.
- Page 20 User Instructions - APP Control Using the APP – Adding a Member NOTE: Download the APP for the new member first. 1. Select "Me" → "Home Management" → "Name of Home“ → "Home Settings". Select "Add Member". 2. Select 1: "APP account". NOTE: This is to be completed on the new members account not your own 200827_1...
- Page 21 User Instructions - APP Control Using the APP – Adding a Member continued 1. Select "Others" to get invitation code. Then go to "Me > Home Management > Join Home“ and enter the code. Select the Home and ready for operate the appliance. 200827_1...
- Page 22 User Instructions - APP Control Using the APP – Share Device 2. Click “Share Device” 3. Click “Add Sharing” 1. Click the 5. Receive the message 4. Select APP account or Others 200827_1...
-
Page 23: Maintenance
“+” button APP not operating fire Ensure the fire and mobile are connected to same Wi-Fi Should you be experiencing any problems with your fire please call Customer Services on 01914300901 or email us at customerservices@bemodern.co.uk 200827_1... -
Page 24: General Information
General Information Environment Meaning of crossed –out wheeled dustbin: Electrical appliances should not be disposed as unsorted municipal waste. Separate collection facilities should be used in the disposal of electrical appliances. Contact your local government for the information about the available collection systems. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well- being. - Page 25 On requiring service the purchaser should contact the retailer who supplied your product who will assist and advise you as necessary. Be Modern Ltd. 19-34 Bedesway Bede Industrial Estate Jarrow Tyne and Wear NE32 3BE Tel: (0191) 430 0901 Fax: (0191) 430 9522 Website: Bemodern 200827_1...
