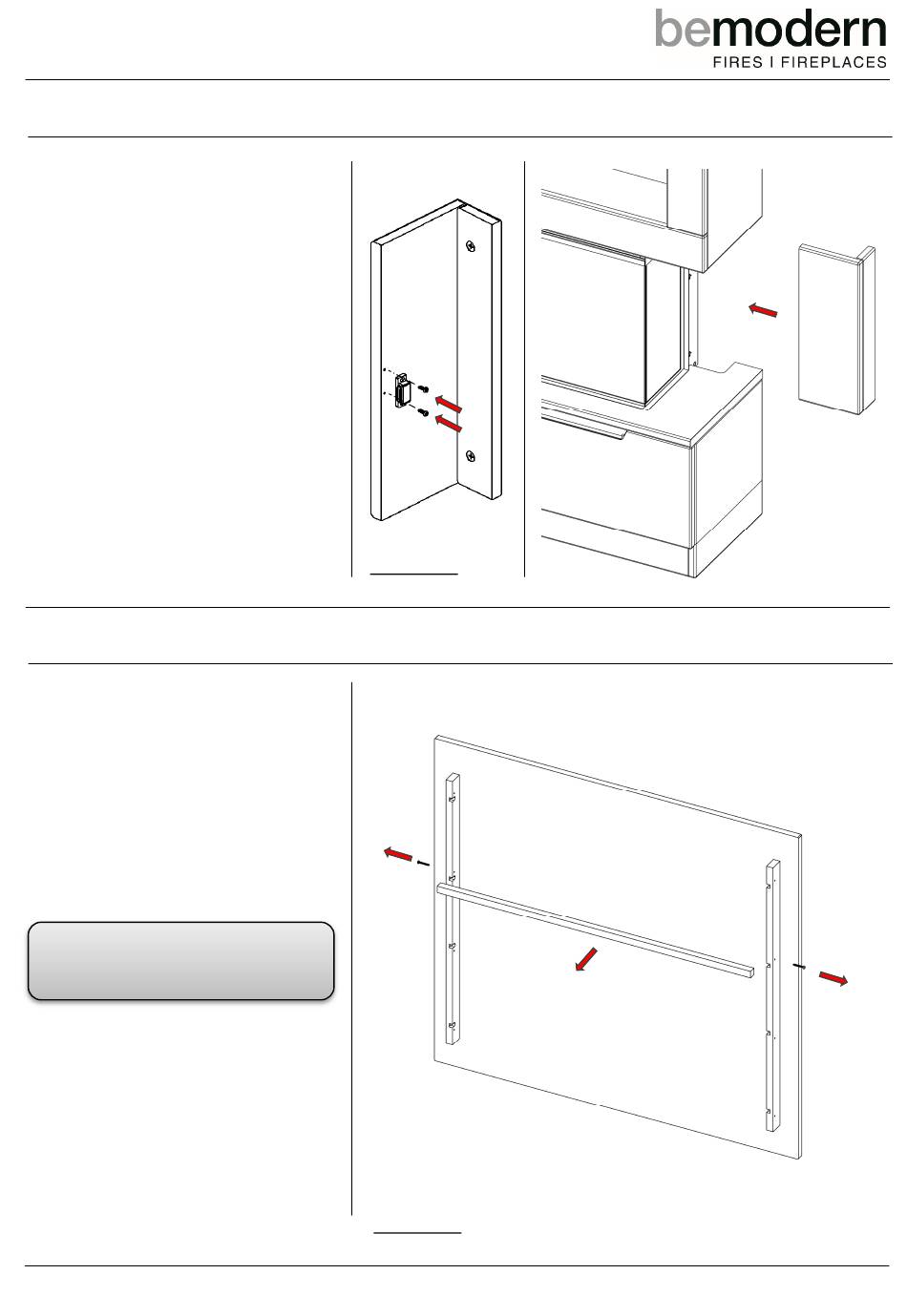

Base Unit Side Set Installation
At this stage the two Base Unit Side Sets
can be unpacked. The magnet catches
supplied in the Base Unit hardware kit,
can be screwed in place. Screw with 2x
12mm dome head screws in the pilot
marked points. The Side Sets can be
placed in position on the Base Unit Top
at each side of the Fire. The Side Sets
should slide in to position behind the
Fire side trims and magnetically attach
to the Fire. See Diagram 31.
If it is found that the Side Sets are
binding on the base of the TV Unit when
fitting. The TV Unit can be lifted by
adjusting the hanging brackets slightly.
TV Unit Back Panel Set Installation
Dependent on the planned TV mount
installation. Consideration will need to
be given to the TV and bracket mounting
specifications, power cable, accessory
cable routing and any cut-outs required
in the main center Back Panel. We
recommend any cutting required, is
carried out before the Center Back Panel
is installed.
IMPORTANT NOTE: Arm style TV mount
brackets should be mounted directly to
the main wall.
To fit the Back Panels in place first start
with the main center Back Panel. The
main center Back Panel is packed from
the factory with a transit rail between
the two fixing rails. Unpack the Back
Panel parts and remove the transit rail
which is screwed to the fixing rails at
both sides. The transit rail is no longer
required. See Diagram 32.
D
31
iagram
D
32
iagram
200860_01
19
