bemodern PRIZM MEDIAVUE Instructions For Installation & Operation page 23

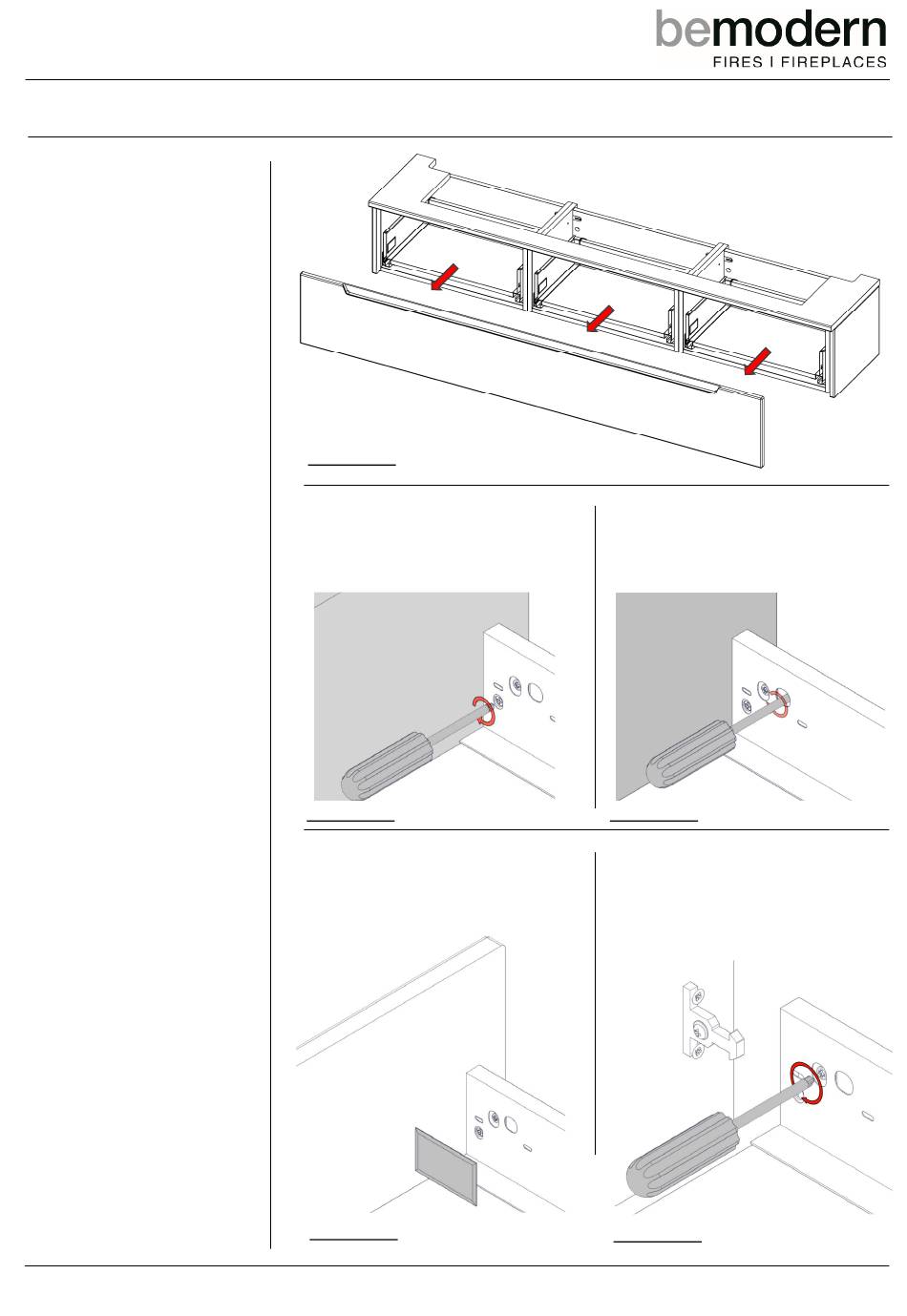

Base Unit Drawer Installation
To fit the drawer front to the
drawer boxes. Lift the drawer
front up in line with the Base
Unit drawer boxes and with
the help of a second person
aligning the mounting
connectors with the drawer
runner connectors. Slide each
drawer boxes out individually,
guiding the connectors in to
the draw box until they click in
place. See Diagram 40. Once
all drawer boxes have been
connected. Cycle the drawers
in and out to confirm all 6
connectors have locked in
place. Once the drawer front
is secured in place. The
drawer front alignment can be
adjusted with a screw driver
using the internal adjusters.
See the Drawer Adjustment
details for fine tuning of the
drawer front panel. Diagrams
41,42,43 & 44.
If handles are being installed
with the smooth styling kit
then these can now be fitted
in the desired position-
consider placing them over
the drawer joints of the base
unit.
D 40
iagram
Drawer Left/Right Adjustment
Turn screw Clockwise to adjust drawer
to the right. Turn screw Anti-Clockwise
to adjust drawer to the left.
D 41
iagram
Cover Cap Fitting
Fit the cover caps onto drawer
side. Push fitting into slotted.
groves in drawer side.
D 43
iagram
200860_01
Continued.....
Drawer Up/Down Adjustment
Turn screw Clockwise to adjust drawer
upwards. Turn screw Anti-Clockwise to
adjust downwards.
D
iagram
Drawer Front Removal
Remove the cover caps. Turn the
screw anticlockwise as indicated
below. This will release the drawer
front from the drawer box.
D
iagram
42
44
