Mounting The Base Unit

Now that the desired Style Kit
is fitted to the Base Unit and
the hanging plates have been
installed on the wall. To aid
the hanging of the Base Unit
first screw the hanging
bracket arms out away from
the Base Unit back panel. The
hanging brackets have been
pre-fitted at the factory.
Working from the rear of the
Base Unit, screw the top
adjustment screw clockwise
until the arms have move
fully out. See Diagram 10.
Once all four hanging
brackets arms are wound out,
the Base Unit can be lifted in
to place, centrally with the
pre-marked center line. With
the help of a second person,
lift the base unit into position
on to the pre-fitted wall
hanging plates, ensuring the
hanging brackets engage
fully. At this point it is very
important to confirm the
base unit is vertical and
horizontally level. The
hanging brackets can be
adjusted from the front,
through an access hole in the
rear panel. First adjust the
top screws in the four
hanging brackets, pulling the
base unit to the wall. Before
the unit is tight against the
wall, adjust the bottom screw
to set the unit height level
with the earlier marked Base
Unit top level line. Turn the
screw clockwise to lift the
unit and turn the screw
counter clockwise to lower.
See Diagram 11.

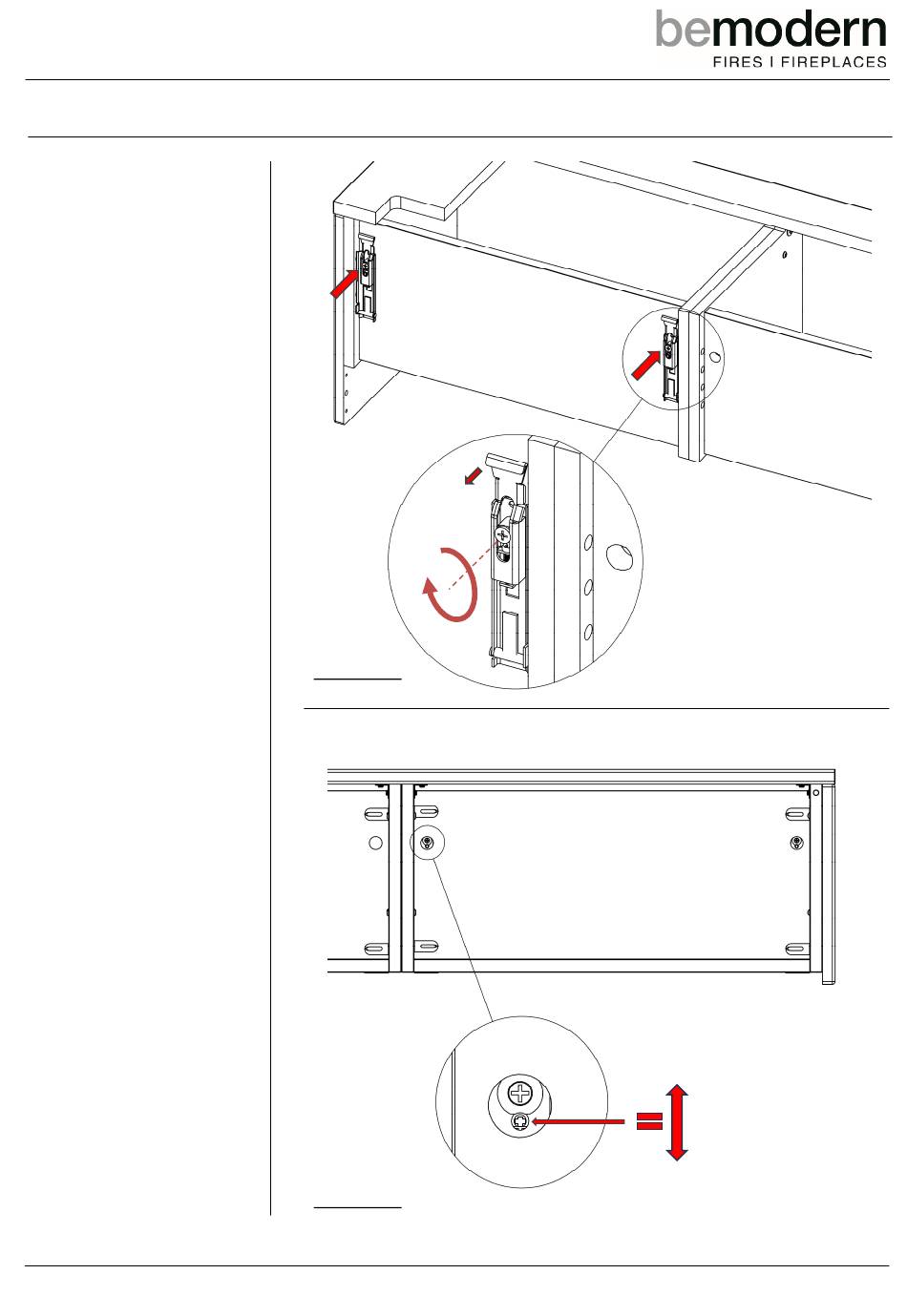

D 10
