Wall mounted Installation

Unpack the base unit assembly
and position top down on the
floor. Remove all the drawer boxes
from the base unit. To remove the
drawer box assembly. Open the
drawer fully. Supporting the
drawer weight and push the
release button on underside of
the drawer runner. See Diagram 2.
The drawer box will release from
the runner guides. Place the
drawer boxes to one side for later
re-installation.
Unpack the Base Unit Style Kit.
Wall hung cabinet end panel are
identified by having no holes in
the panel rear. Note: Remove the
protective covers from the three
panels where applied, before
fitting in place. Only certain color
finishes have a protective cover.
Place the right-hand end panel in
position on the righthand gable
end of the base unit. The top and
rear edges must be flush with the
base unit top and rear edges. See
Diagram 8. Clamp in place with
quick clamps at this point if you
have them or have a second
person support the end panels
while screwing together. Using the
4x supplied 30mm dome head
screws (it will help to pilot drill the
holes). See Diagram 8 & 9. Screw
through the gable end panel and
in to the cabinet end panels,
securing the panel in place and
repeat for the lefthand end panel.
Next step is Mounting the Base
Unit. See Page 11.

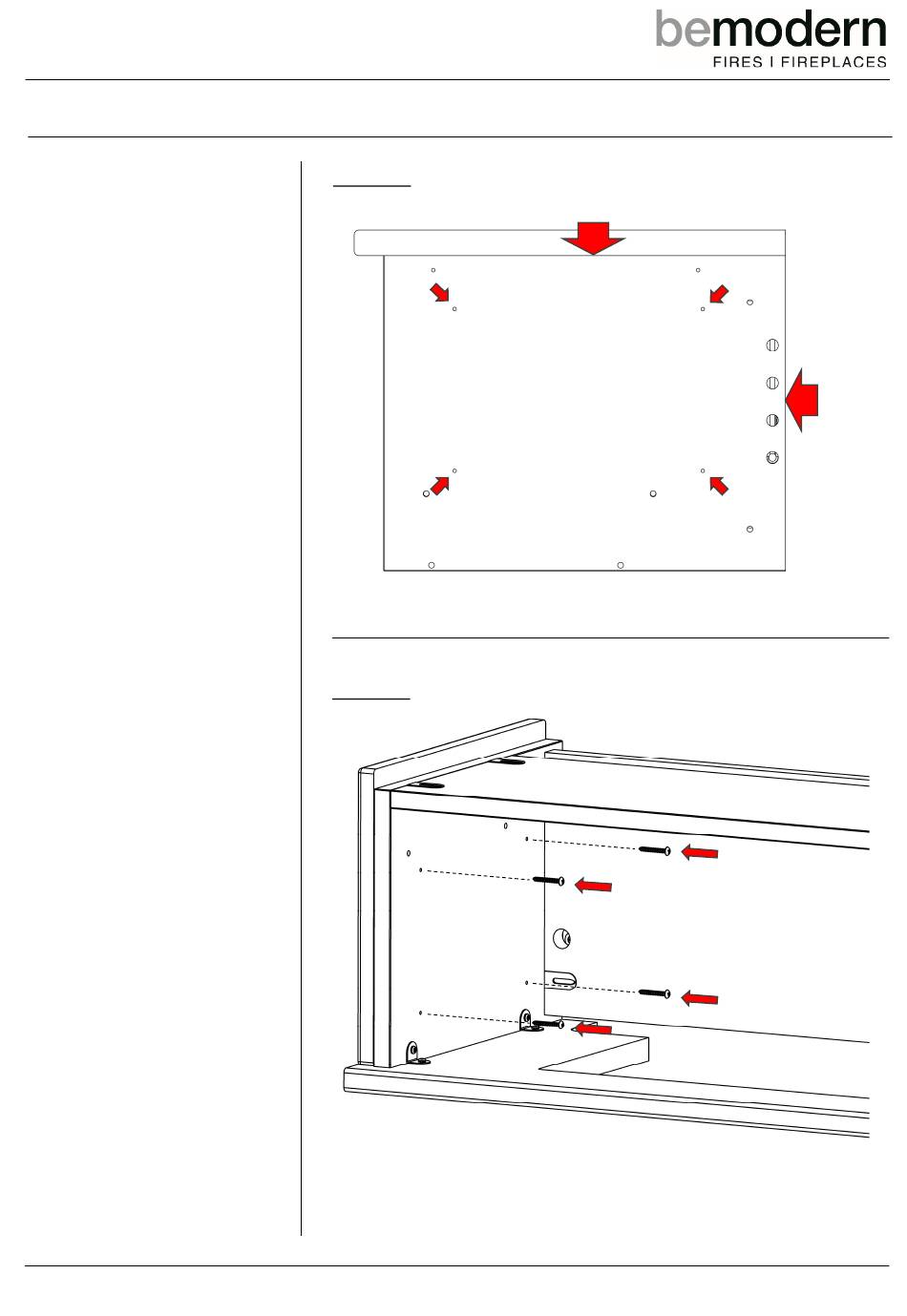

D 8
iagram
BASE UNIT TOP
D 9
iagram
200860_01
BASE
UNIT
REAR
10
