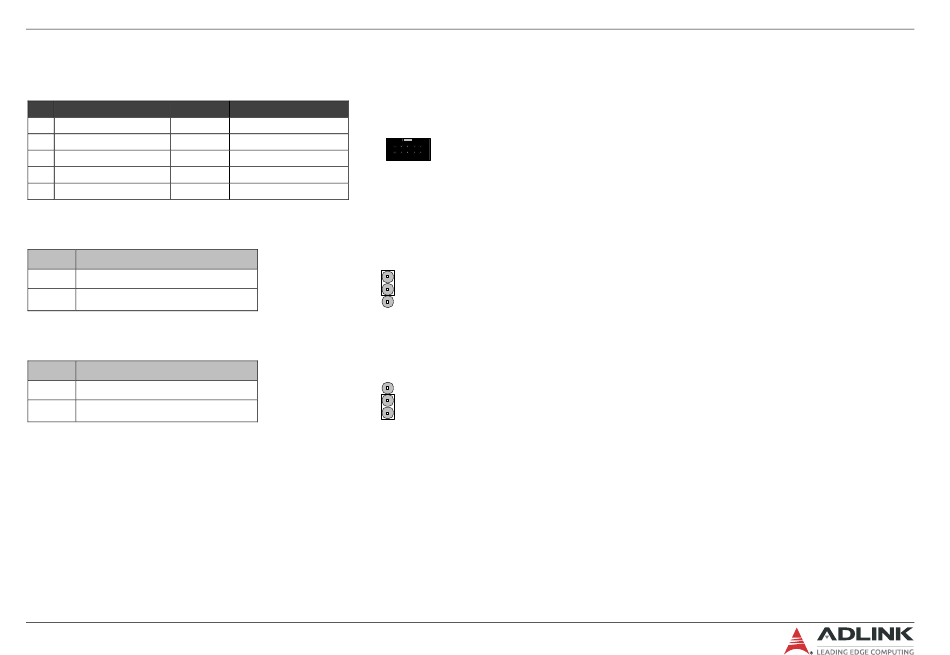

6.13. COM Port Connector

COM1: the Module UART port1
Pin Signal
1 CM1_DCD 2
3 SER1_RX 4
5 SER1_TX 6
7 CM1_DTR 8
9 GND 10
JP9: MUX of Module UART1 or BMC UART SOL
Jumper Status
1-2 BMC UART2 SOL <<<<
2-3 Module's UART1
JP34: MUX of Module UART0 or BMC UART1 (Console)
Jumper Status
1-2 BMC UART1 Console
2-3 Module UART0 <<<<
Page 31
CN1_DSR
SER1_RTS_L
SER1_CTS_L
CM1_RI
NC
1
2
3
1
2
3
