COM-HPC Server Base User's Guide

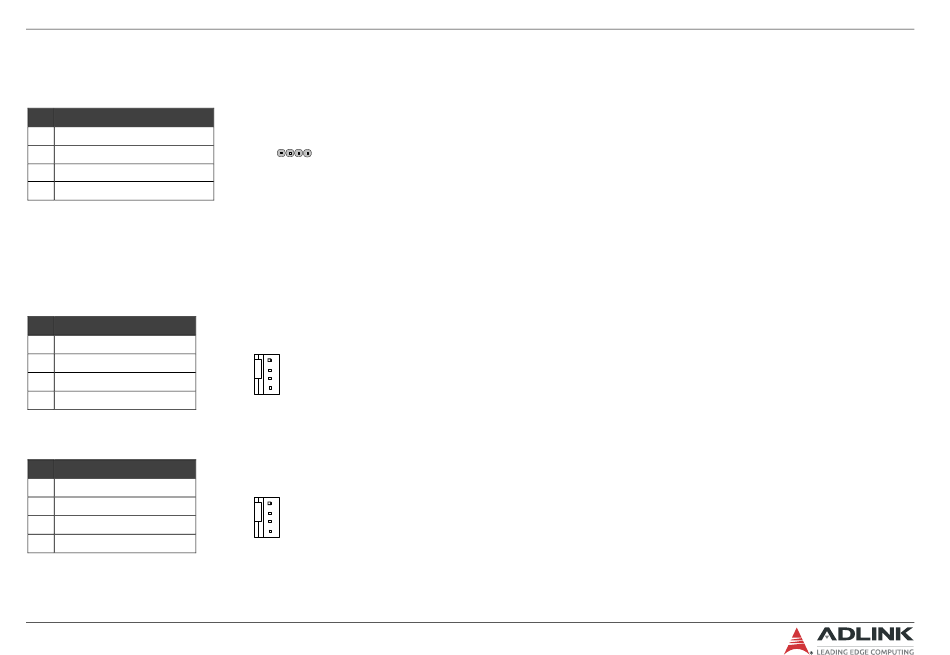

6.16. External SMBus Header
CN35: External SMBus for connecting to the MUX of KR/SFI
Pin Signal
1
GND
2
N.C
3
RT_SDC
4
RT_SDA
6.17. Fan Header
FAN_0: Module controlled FAN
Pin Signal
1
GND
2
+12V_5V_FAN
3
SENSE_FAN
4
PWMOUT_FAN
FAN_1: BMC controlled FAN 1
Pin Signal
1
GND
2
+12V_5V_FAN0
3
SENSE_FAN0
4
PWMOUT_FAN0
Page 33
Copyright © 2023 ADLINK Technology, Inc.
PICMG COM-HPC Rev 1.0
