COM-HPC Server Base User's Guide

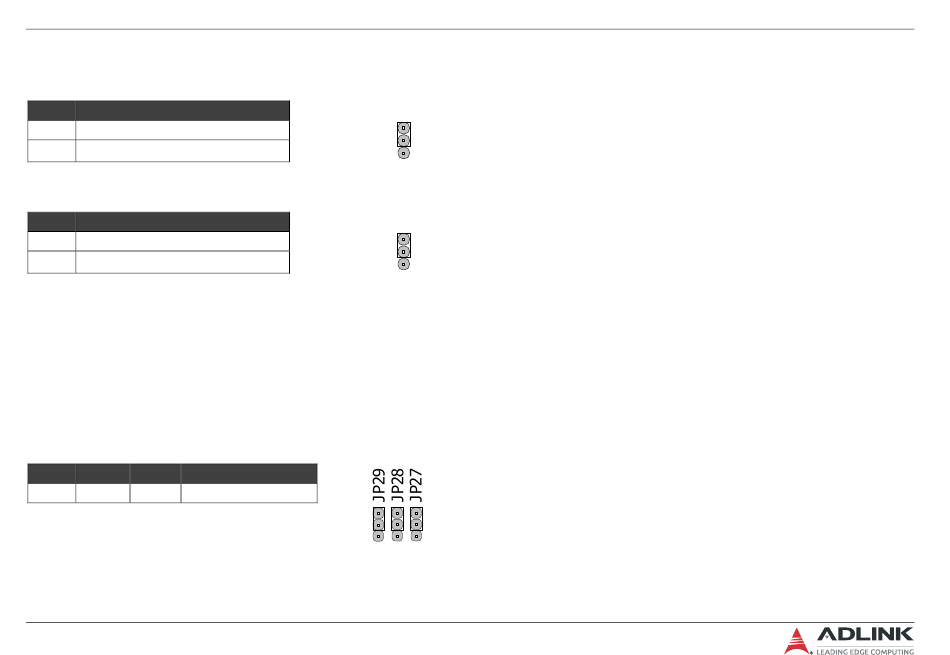

6.23. Module (I2C0) / BMC (I2C8) Jumpers

JP2: I2C CLK switch for I2C8 (BMC) or I2C0 (module)
Jumper Status
1-2 I2C8, BMC
2-3 I2C0, Module
JP3: I2C DAT switch for I2C8 (BMC) or I2C0 (module)
Jumper Status
1-2 I2C8, BMC
2-3 I2C0, Module

6.24. Other Jumpers

JP27/28/29: BIOS Selection.
Boot from SPI Secondary BIOS, see below for details.
Setting Boot from Module BIOS
JP29 JP28 JP27
1-2 1-2 1-2 Module BIOS
Page 39
1
2
3
1
2
3
BOOT
<<<<
