2. Special Features

2.1. Three PCI Express x16

Maximum 2x FHFL PCI Express cards at PCIE16-31 slot and PCIE32-47 slot, and 1x FHHL PCI Express card at PCIE48-63 slot
PCIE16-31 and PCIE32-47 slots can accommodate up to 2-slot-width PCI Express cards, in the condition of not using PCIE4-7 slot

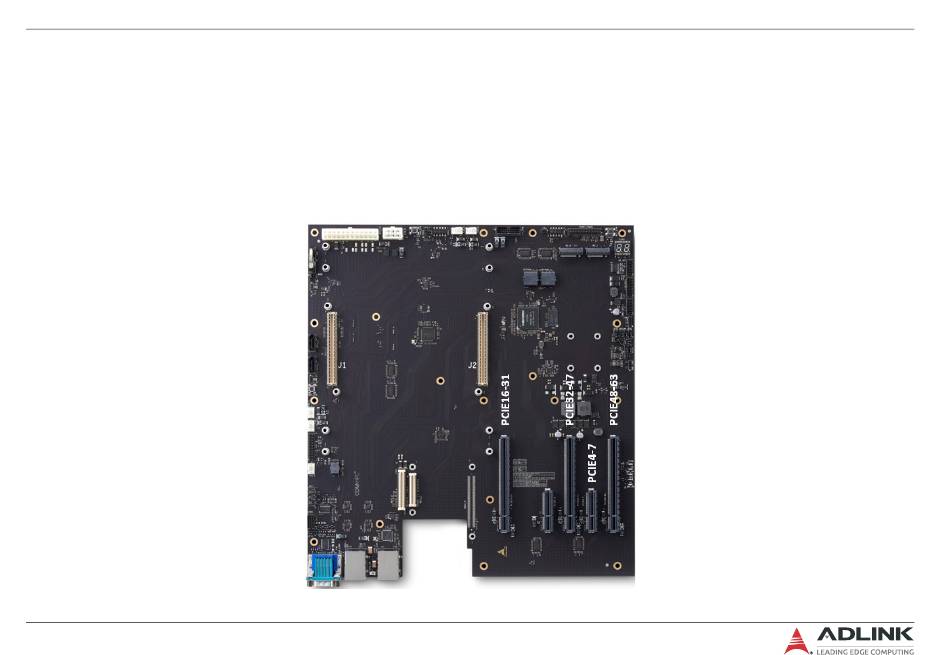

Figure 1 – Carrier top view
