SNMP MANAGER:

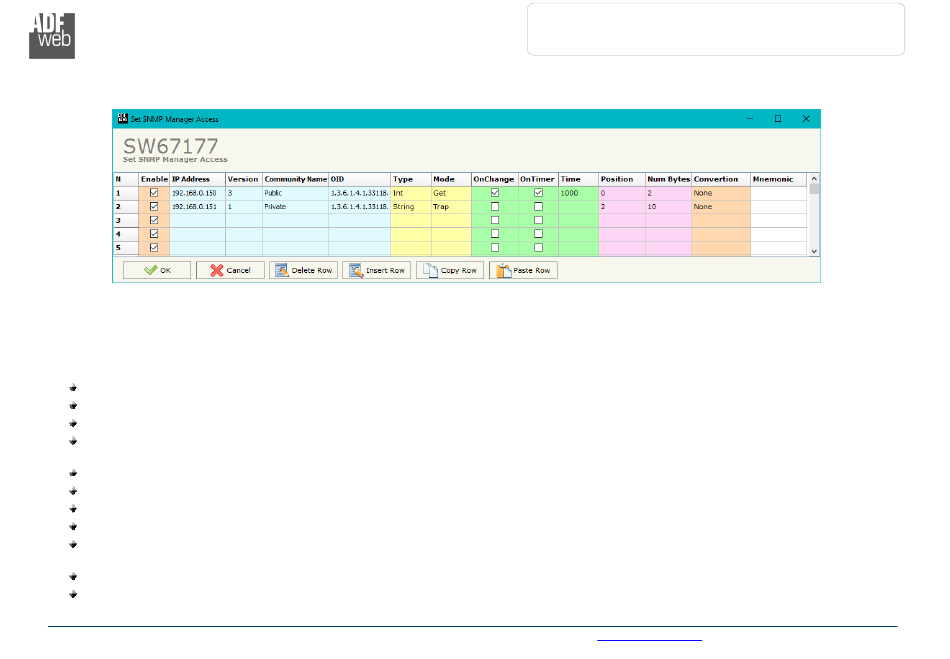

Figure 4: "Set SNMP Manager Access" window
By Pressing the "SNMP Manager" button from the main window for SW67177 (Fig. 2) the window "Set SNMP Manager Access" appears
(Fig. 4).
The meaning of the fields in the window are the follows:
If the field "Enable" is checked, the SNMP request is enabled;
In the field "IP Address" the address of the SNMP Agent device that you have to read/write is defined;
In the field "Version" the SNMP version used to send the SNMP request (1, 2 or 3) is defined;
In the field "Community
defined;
In the field "OID" the OID to read/write from/to the SNMP Agent device is defined;
In the field "Address" the start address of the register/status to read/write is defined;
In the field "Type" the type of data to read/write ('String' or 'Int') is defined;
In the field "Mode" the type of SNMP request used ('Get', 'Set' or 'Trap') is defined;
By checking the field "On
changed;
If the field "On Timer" is checked, the SNMP request is sent cyclically;
In the field "Time" the delay in ms between two SNMP requests is defined (if "On Timer" is checked);
ADFweb.com Srl – IT31010 – Mareno – Treviso
Name" the Community Name used for the SNMP request ('Public' or 'Private' or editable manually) is
Change" the SNMP request (only for the 'Set' Mode) is made only if Modbus data written by the Master are
