ADF Web HD67170-IP-A1 User Manual

Bacnet slave / snmp manager - converter

Hide thumbs

page of 32

/ 32
Bookmarks

Quick Links

Download this manual

Industrial Electronic Devices

User Manual

Revision 1.000

English

BACnet Slave / SNMP Manager -

Converter

(Order Code: HD67170-IP-A1, HD67170-MSTP-A1,

HD67170-MSTP-B2)

for Website information:

www.adfweb.com?Product=HD67170

for Price information:

www.adfweb.com?Price=HD67170-IP-A1

www.adfweb.com?Price=HD67170-MSTP-A1

www.adfweb.com?Price=HD67170-MSTP-B2

Benefits and Main Features:

Very easy to configure

Electrical isolation

Temperature range: -40°C/85°C (-40°F/185°F)

User Manual

ADFweb.com Srl – IT31010 – Mareno – Treviso

Axis Solutions Pvt Ltd is the Authorized Distributor of

www.axisindia.in | info@axisindia.in

User Manual BACnet Slave / SNMP Manager

Document code: MN67170_ENG

For others SNMP Manager products, see also the following links:

Converter SNMP Manager to

www.adfweb.com?Product=HD67171

www.adfweb.com?Product=HD67172

www.adfweb.com?Product=HD67173

www.adfweb.com?Product=HD67174

www.adfweb.com?Product=HD67175

www.adfweb.com?Product=HD67176

www.adfweb.com?Product=HD67177

www.adfweb.com?Product=HD67178

Do you have an your customer protocol?

www.adfweb.com?Product=HD67003

Do you need to choose a device? do you want help?

www.adfweb.com?Cmd=helpme

INFO:

www.adfweb.com

in India

Revision 1.000

Pagina 1 di 32

(CAN)

(CANopen)

(DeviceNet Slave)

(EtherNet/IP)

(Modbus Slave)

(Modbus TCP Slave)

(PROFIBUS Slave)

(PROFINET)

Phone +39.0438.30.91.31

Need help?

Do you have a question about the HD67170-IP-A1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADF Web HD67170-IP-A1

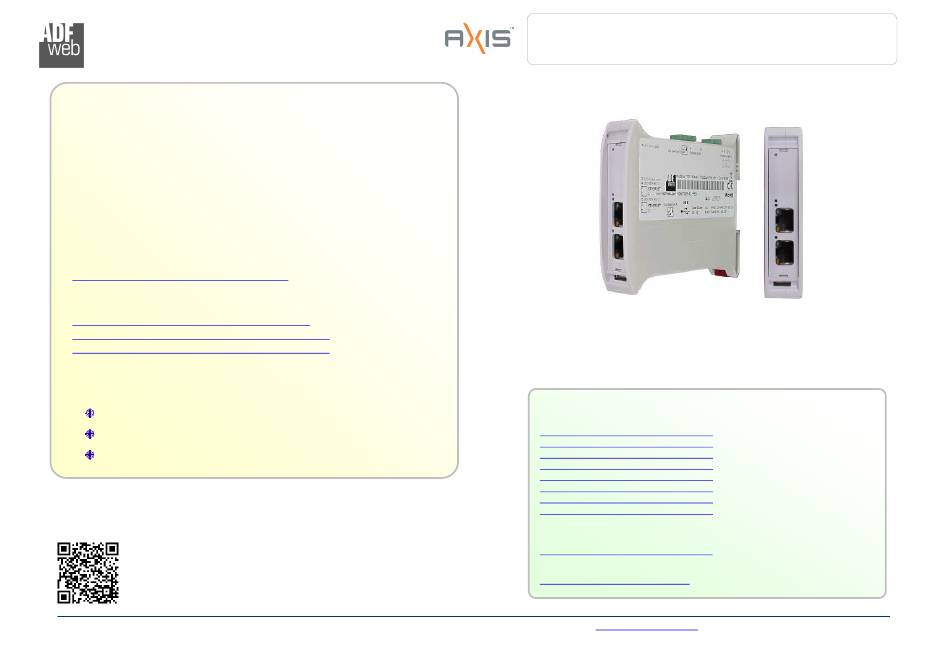

Page 1 Revision 1.000 Pagina 1 di 32 Industrial Electronic Devices User Manual Revision 1.000 English BACnet Slave / SNMP Manager - Converter (Order Code: HD67170-IP-A1, HD67170-MSTP-A1, HD67170-MSTP-B2) for Website information: www.adfweb.com?Product=HD67170 for Price information: www.adfweb.com?Price=HD67170-IP-A1 www.adfweb.com?Price=HD67170-MSTP-A1 www.adfweb.com?Price=HD67170-MSTP-B2 Benefits and Main Features:...
