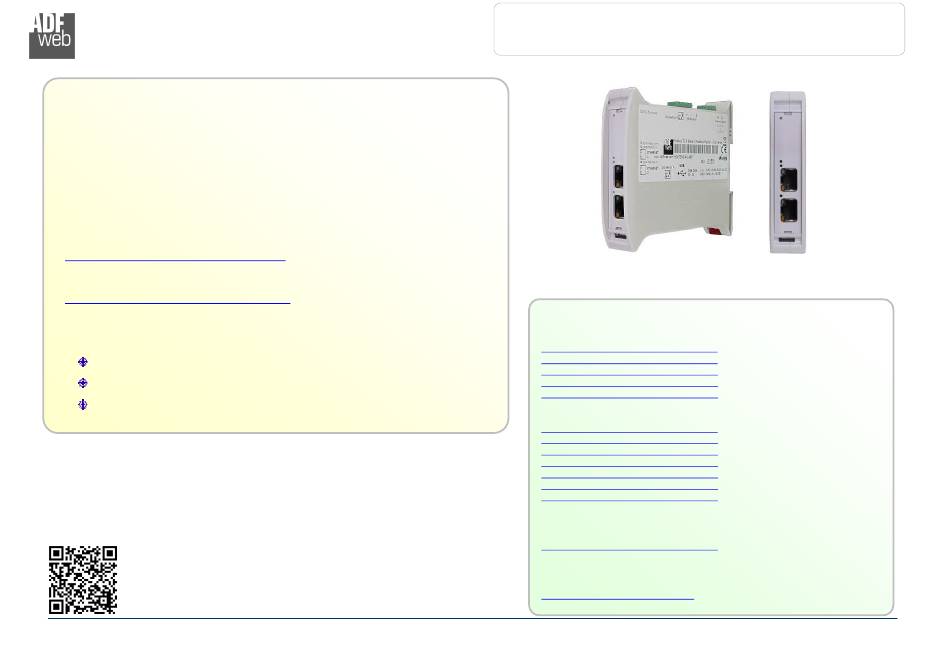

Industrial Electronic Devices
User Manual
Revision 1.000
English

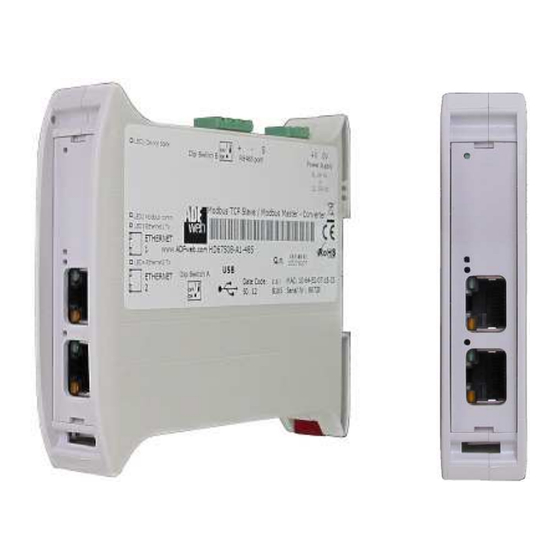

Modbus TCP Slave / Modbus TCP Slave -
Converter
(Order Code: HD67157-A1)
For Website information:
www.adfweb.com?Product=HD67157
For Price information:
www.adfweb.com?Price=HD67157-A1
Benefits and Main Features:
Very easy to configure
Triple Electrical isolation
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual Modbus TCP Slave / Modbus TCP Slave
Document code: MN67157_ENG
For others Modbus devices, see also the following links:
Modbus Master from/to ...
www.adfweb.com?Product=HD67141
www.adfweb.com?Product=HD67506
www.adfweb.com?Product=HD67011
www.adfweb.com?Product=HD67507
www.adfweb.com?Product=HD67561
Modbus Slave from/to ...
www.adfweb.com?Product=HD67029
www.adfweb.com?Product=HD67222
www.adfweb.com?Product=HD67510
www.adfweb.com?Product=HD67580
www.adfweb.com?Product=HD67012
www.adfweb.com?Product=HD67151
www.adfweb.com?Product=HD67138
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
Revision 1.000
Page 1 of 21
(... DeviceNet Slave)
(... Ethernet)
(... CAN)
(... Modbus TCP Slave)
(... PROFIBUS Slave)
(... M-Bus)
(... NMEA 2000)
(... Modbus TCP Master)
(... PROFIBUS Master)
(... CAN)
(... DeviceNet Master)
(... DeviceNet Slave)

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD67157-A1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADF Web HD67157-A1

  • Page 1 Industrial Electronic Devices User Manual Revision 1.000 English Modbus TCP Slave / Modbus TCP Slave - Converter (Order Code: HD67157-A1) For Website information: www.adfweb.com?Product=HD67157 For Price information: www.adfweb.com?Price=HD67157-A1 For others Modbus devices, see also the following links: Modbus Master from/to …...
  • Page 2: Table Of Contents

    User Manual Modbus TCP Slave / Modbus TCP Slave Document code: MN67157_ENG Revision 1.000 Page 2 of 21 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that INDEX you need to check that the following document is: UPDATED DOCUMENTATION Updated REVISION LIST...
  • Page 3: Security Alert

    User Manual Modbus TCP Slave / Modbus TCP Slave Document code: MN67157_ENG Revision 1.000 Page 3 of 21 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.
  • Page 4: Example Of Connection

    User Manual Modbus TCP Slave / Modbus TCP Slave Document code: MN67157_ENG Revision 1.000 Page 4 of 21 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com S.r.l.
  • Page 5: Connection Scheme

    User Manual Modbus TCP Slave / Modbus TCP Slave Document code: MN67157_ENG Revision 1.000 Page 5 of 21 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67157-A1 ADFweb.com S.r.l.
  • Page 6: Characteristics

    Revision 1.000 Page 6 of 21 Industrial Electronic Devices CHARACTERISTICS: The HD67157-A1 are Modbus TCP Slave / Modbus TCP Slave - Converters. It allows for the following characteristics: Isolation between Modbus TCP – Power Supply; Two-directional information between Modbus TCP busses;...
  • Page 7: Power Supply

    The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67157-A1 Caution: Do not reverse the polarity power HD67157-A1 ADFweb.com S.r.l.
  • Page 8: Function Modes

    User Manual Modbus TCP Slave / Modbus TCP Slave Document code: MN67157_ENG Revision 1.000 Page 8 of 21 Industrial Electronic Devices FUNCTION MODES: The device has got two function modes depending on the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’...
  • Page 9: Leds

    User Manual Modbus TCP Slave / Modbus TCP Slave Document code: MN67157_ENG Revision 1.000 Page 9 of 21 Industrial Electronic Devices LEDS: The device has got seven LEDs that are used to give information about the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered...
  • Page 10: Ethernet

    ETHERNET: Modbus TCP connection and the updating of the converter must be made using Connector3 and/or Connector4 of the HD67157-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps.
  • Page 11: Use Of Compositor Sw67157

    User Manual Modbus TCP Slave / Modbus TCP Slave Document code: MN67157_ENG Revision 1.000 Page 11 of 21 Industrial Electronic Devices USE OF COMPOSITOR SW67157: To configure the Converter, use the available software that runs with Windows called SW67157. It is downloadable on the site www.adfweb.com and its operation is described in this document.
  • Page 12: New Configuration / Open Configuration

    User Manual Modbus TCP Slave / Modbus TCP Slave Document code: MN67157_ENG Revision 1.000 Page 12 of 21 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “Modbus TCP Slave / Modbus TCP Slave - Converter”...
  • Page 13: Software Options

    User Manual Modbus TCP Slave / Modbus TCP Slave Document code: MN67157_ENG Revision 1.000 Page 13 of 21 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
  • Page 14 User Manual Modbus TCP Slave / Modbus TCP Slave Document code: MN67157_ENG Revision 1.000 Page 14 of 21 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
  • Page 15: Set Communication

    User Manual Modbus TCP Slave / Modbus TCP Slave Document code: MN67157_ENG Revision 1.000 Page 15 of 21 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, Modbus TCP 1 and Modbus TCP 2. By Pressing the “Set Communication”...
  • Page 16: Update Device

    User Manual Modbus TCP Slave / Modbus TCP Slave Document code: MN67157_ENG Revision 1.000 Page 16 of 21 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port.
  • Page 17 User Manual Modbus TCP Slave / Modbus TCP Slave Document code: MN67157_ENG Revision 1.000 Page 17 of 21 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67157 device. Warning: If Fig.
  • Page 18: Mechanical Dimensions

    User Manual Modbus TCP Slave / Modbus TCP Slave Document code: MN67157_ENG Revision 1.000 Page 18 of 21 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 6: Mechanical dimensions scheme for HD67157-A1 ADFweb.com S.r.l.
  • Page 19: Ordering Informations

    Enclosure Type A: 1M, 35mm DIN Rail mounting Device Family HD67157: Modbus TCP Slave / Modbus TCP Slave - Converter Order Code: HD67157-A1 Modbus TCP Slave / Modbus TCP Slave – Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –...
  • Page 20: Disclaimer

    User Manual Modbus TCP Slave / Modbus TCP Slave Document code: MN67157_ENG Revision 1.000 Page 20 of 21 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
  • Page 21: Warranties And Technical Support

    User Manual Modbus TCP Slave / Modbus TCP Slave Document code: MN67157_ENG Revision 1.000 Page 21 of 21 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
