Industrial Electronic Devices
User Manual
Revision 1.100
English
Modbus Master / Modbus MultiSlave - Converter
(Order Code: HD67146-A1)
For Website information:
www.adfweb.com/?Product=HD67146
For Price information:
www.adfweb.com/?Price=HD67146-A1
Benefits and Main Features:
Modbus up to 115200bps
Industrial temperature range: -40°C / +85°C (-40°F / +185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual Modbus Master / Modbus MultiSlave
Document code: MN67146_ENG
For others Modbus devices, see also the following links:
Modbus Master from/to ...
www.adfweb.com?Product=HD67001
www.adfweb.com?Product=HD67011
www.adfweb.com?Product=HD67050
www.adfweb.com?Product=HD67059
www.adfweb.com?Product=HD67141
www.adfweb.com?Product=HD67506
www.adfweb.com?Product=HD67507
www.adfweb.com?Product=HD67508
www.adfweb.com?Product=HD67518
www.adfweb.com?Product=HD67561
www.adfweb.com?Product=HD67591
www.adfweb.com?Product=HD67671
www.adfweb.com?Product=HD67733
www.adfweb.com?Product=HD67812
www.adfweb.com?Product=HD67842
www.adfweb.com?Product=HD67933
www.adfweb.com?Product=HD67961
www.adfweb.com?Product=HD67D01
www.adfweb.com?Product=HD67E01
www.adfweb.com?Product=HD67F01
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.100
Page 1 of 23
(CANopen)
(CAN)
(J1939)
(M-Bus Slave)
(DeviceNet Slave)
(Ethernet)
(Modbus TCP Slave)
(Modbus TCP Slave)
(DMX)
(PROFIBUS Slave)
(EtherNet/IP Slave)
(BACnet IP Slave)
(IEC 61850 Server)
(KNX)
(DALI)
(MQTT)
(IO-Link Slave)
(LoRaWAN)
(EtherCAT Slave)
(LoRaWAN Gateway)
Phone +39.0438.30.91.31

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD67146-A1 and is the answer not in the manual?

Questions and answers

Related Manuals for ADF Web HD67146-A1

Summary of Contents for ADF Web HD67146-A1

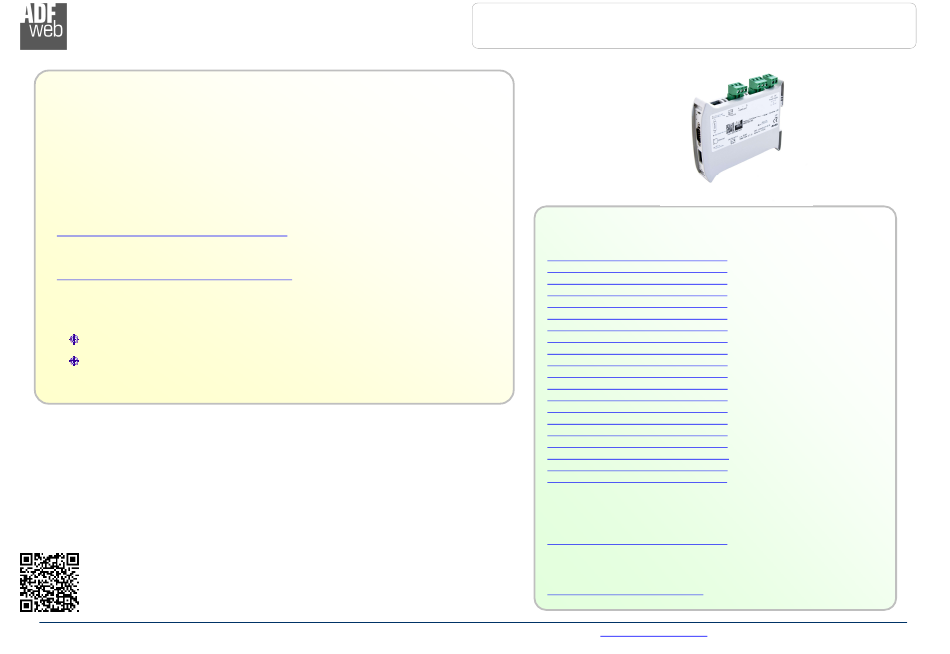

  • Page 1 Page 1 of 23 Industrial Electronic Devices User Manual Revision 1.100 English Modbus Master / Modbus MultiSlave - Converter (Order Code: HD67146-A1) For Website information: For others Modbus devices, see also the following links: www.adfweb.com/?Product=HD67146 Modbus Master from/to … www.adfweb.com?Product=HD67001...

  • Page 2: Table Of Contents

    User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 2 of 23 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated;...

  • Page 3: Security Alert

    User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 3 of 23 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for each individual application, legal and safety regulation.

  • Page 4: Example Of Connection

    User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 4 of 23 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...

  • Page 5: Connection Scheme

    User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 5 of 23 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67146-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...

  • Page 6: Characteristics

    User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 6 of 23 Industrial Electronic Devices CHARACTERISTICS: The configurable “Modbus Slave / Modbus Slave - Converter” has the following characteristics: Galvanic isolation between the Modbus ports. Mountable on 35mm Rail DIN; Power Supply 8...24V AC or 12...35V DC;...

  • Page 7: Power Supply

    The devices can be powered at 8…24V AC and 12…35V DC. The consumption depends to the code of the device. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67146-A1 Consumption at 24V DC: Device W/VA HD67146-A1 Caution: Not reverse the polarity power HD67146-A1 ADFweb.com Srl –...

  • Page 8: Function Modes

    User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 8 of 23 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’: The first, with Dip1 in Off position (factory setting), is used for the normal working of the device. The second, with Dip1 in On position, is used for upload the Project/Firmware.

  • Page 9: Leds

    User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 9 of 23 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...

  • Page 10: Ethernet

    ETHERNET: The Ethernet connection must be made using Connector5 of HD67146-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable.

  • Page 11: Rs485

    User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 11 of 23 Industrial Electronic Devices RS485: To terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet).

  • Page 12: Use Of Configurator Sw67146

    User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 12 of 23 Industrial Electronic Devices USE OF COMPOSITOR SW67146: To configure the Converter, use the available software that runs with Windows called SW67146. It is downloadable on the site www.adfweb.com and its operation is described in this document.

  • Page 13: New Configuration / Open Configuration

    User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 13 of 23 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “Modbus Master / Modbus MultiSlave - Converter”...

  • Page 14: Software Options

    User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 14 of 23 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
  • Page 15 User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 15 of 23 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.

  • Page 16: Set Communication

    User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 16 of 23 Industrial Electronic Devices SET COMMUNICATION: This section defines the fundamental communication parameter of three ports Modbus. By pressing the “Set Communication” button from the main window for SW67146 (Fig. 2) the window “Set Communication”...
  • Page 17 User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 17 of 23 Industrial Electronic Devices The means of the fields for “RS485 0 / RS232 - Master” are: In the field “Serial” is possible to select the serial used for the Master Modbus between “RS232” and “RS485”. In the field “Baudrate”...

  • Page 18: Update Device

    User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 18 of 23 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. If you don’t know the actual IP address of the device you have to use this procedure: Turn OFF the Device;...
  • Page 19 User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 19 of 23 Industrial Electronic Devices Note: When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67146 device.

  • Page 20: Mechanical Dimensions

    User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 20 of 23 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 6: Mechanical dimensions scheme for HD67146-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...

  • Page 21: Ordering Informations

    Enclosure Type A: 1M, 35mm DIN Rail mounting Device Family HD67146: Modbus Master / Modbus MultiSlave - Converter Order Code: HD67146-A1 Modbus Master / Modbus MultiSlave - Converter ACCESSORIES: Order Code: AC34107 Null Modem Cable Fem/Fem DSub 9 Pin 1,5 m...

  • Page 22: Disclaimer

    User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 22 of 23 Industrial Electronic Devices DISCLAIMER All technical content within this document can be modified without notice. The content of the document content is a recurring audit. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.

  • Page 23: Warranties And Technical Support

    User Manual Modbus Master / Modbus MultiSlave Document code: MN67146_ENG Revision 1.100 Page 23 of 23 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
