FUNCTION MODES:

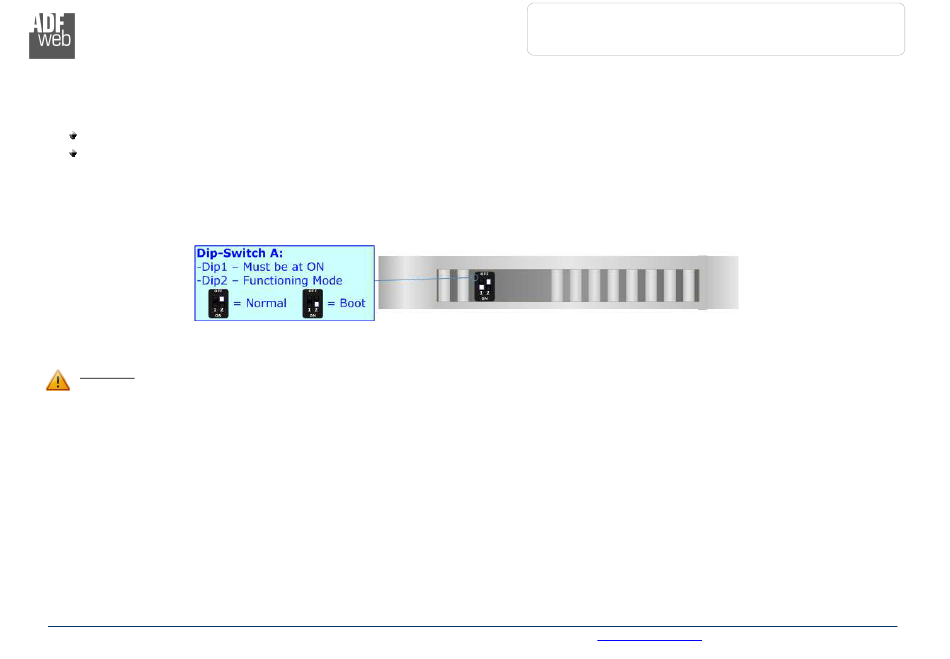

The device has got two functions mode depending of the position of the 'Dip2 of Dip-Switch A':
The first, with 'Dip2 of Dip-Switch A' at "OFF" position, is used for the normal working of the device.
The second, with 'Dip2 of Dip-Switch A' at "ON" position, is used for upload the Project and/or Firmware.
For the operations to follow for the updating, see 'UPDATE DEVICE' section.
According to the functioning mode, the LEDs will have specifics functions, see 'LEDS' section.
Warning:
Dip1 of 'Dip-Switch A' must be at ON position for working even if the Ethernet cable isn't inserted.
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG
Revision 1.000
