Industrial Electronic Devices
User Manual
Revision 1.000
English
PROFIBUS Slave / SNMP Manager -
Converter
(Order Code: HD67177-A1)
for Website information:
www.adfweb.com?Product=HD67177
for Price information:
www.adfweb.com?Price=HD67177-A1
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
User Manual PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG
For others SNMP products, see also the following links:
Converter SNMP Manager to
www.adfweb.com?Product=HD67170
www.adfweb.com?Product=HD67171
www.adfweb.com?Product=HD67172
www.adfweb.com?Product=HD67173
www.adfweb.com?Product=HD67174
www.adfweb.com?Product=HD67175
www.adfweb.com?Product=HD67176
www.adfweb.com?Product=HD67178
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
in India
in India
in India
in India
Revision 1.000
Pagina 1 di 22
(BACnet Slave)
(CAN)
(CANopen)
(DeviceNet Slave)
(EtherNet/IP)
(Modbus Slave)
(Modbus TCP Slave)
(PROFINET)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web AXIS HD67177-A1
Summary of Contents for ADF Web AXIS HD67177-A1

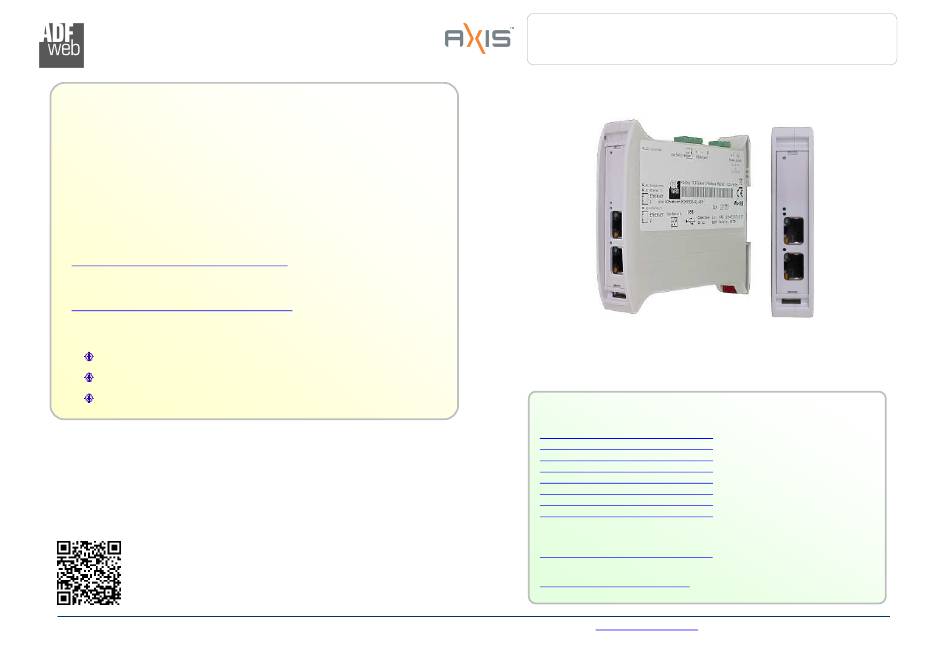

- Page 1 User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 1 di 22 Industrial Electronic Devices User Manual Revision 1.000 English PROFIBUS Slave / SNMP Manager - Converter (Order Code: HD67177-A1) for Website information: www.adfweb.com?Product=HD67177 for Price information: www.adfweb.com?Price=HD67177-A1 Benefits and Main Features: Very easy to configure...
-
Page 2: Table Of Contents
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 2 di 22 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 3 di 22 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 4 di 22 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 5 di 22 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67177-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 6 di 22 Industrial Electronic Devices CHARACTERISTICS: The HD67177-A1 is a PROFIBUS Slave / SNMP Manager - Converter. It has the following characteristics: Up to 244 bytes in reading and 244 bytes in writing; Isolation between Power Supply –... -
Page 7: Power Supply
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 7 di 22 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin... -
Page 8: Function Modes
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 8 di 22 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch A’: The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch A’... -
Page 9: Leds
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 9 di 22 Industrial Electronic Devices LEDS: The devices have got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. ON: Device powered ON: Device powered 1: ON [supply voltage ]... -
Page 10: Profibus
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 10 di 22 Industrial Electronic Devices PROFIBUS: The PROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined like in the right figure. Here some codes of cables: Belden: p/n 183079A - Continuous Armor DataBus®... -
Page 11: Use Of Compositor Sw67177
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 11 di 22 Industrial Electronic Devices USE OF COMPOSITOR SW67177: To configure the Converter, use the available software that runs with Windows called SW67177. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 12: New Project / Open Project
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 12 di 22 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “PROFIBUS Slave / SNMP Manager - Converter”... -
Page 13: Software Options
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 13 di 22 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. -
Page 14: Set Communication
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 14 di 22 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, SNMP and PROFIBUS. By Pressing the “Set Communication” button from the main window for SW67177 (Fig. 2) the window “Set Communication”... -
Page 15: Snmp Manager
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 15 di 22 Industrial Electronic Devices SNMP MANAGER: Figure 4: “Set SNMP Manager Access” window By Pressing the “SNMP Manager” button from the main window for SW67177 (Fig. 2) the window “Set SNMP Manager Access” appears (Fig. - Page 16 User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 16 di 22 Industrial Electronic Devices In the field “Position” it is possible to select the position where take/save the data from/to the PROFIBUS arrays; In the field “Num Bytes”...
-
Page 17: Update Device
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 17 di 22 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. - Page 18 User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 18 di 22 Industrial Electronic Devices If you know the actual IP address of the device, you have to use this procedure: Turn on the Device with the Ethernet cable inserted; Insert the actual IP of the Converter;...
-
Page 19: Mechanical Dimensions
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 19 di 22 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 7: Mechanical dimensions scheme for HD67177-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 20: Ordering Informations
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 20 di 22 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67177 - x x Connectors Type 1: Removable 5mm Screw Terminal Enclosure Type A: 1M, 35mm DIN Rail mounting... -
Page 21: Disclaimer
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 21 di 22 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 22: Warranties And Technical Support
User Manual PROFIBUS Slave / SNMP Manager Document code: MN67177_ENG Revision 1.000 Pagina 22 di 22 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
