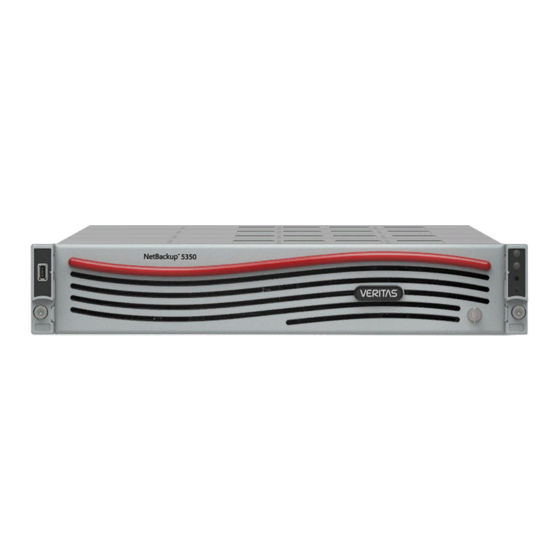

Veritas Appliance
Hardware Service Procedure

Replacing a power supply: Veritas Appliance

Document Number: 177
Version: 4.3 (05/04/2020)

Purpose

This document describes the process for replacing a power supply in a Veritas appliance.

Affected appliance models

3340 Appliance
5240 Appliance
5250 Appliance
5340/5340 HA Appliance

Electrical Safety

The static discharged by human bodies can damage static-sensitive components on the boards.
When installing and maintaining the equipment, observe appropriate electrostatic safety precautions
to prevent personnel injuries or device damage.
When operating a device in an electrostatic sensitive area, you must take electrostatic-discharge
(ESD)-preventive measures. These include wearing ESD-preventive gloves, an ESD-preventive wrist
strap, and ESD-preventive clothes to avoid personnel injury or device damage.
To prevent damage to the device, pay attention to the following during operations:
Do not touch devices with bare hands because ESD from the human body may damage the
electrostatically sensitive elements on a board.
When dealing with the server or any of the internal components, wear an ESD-preventive wrist
strap, ESD-preventive gloves, and ESD-preventive suit.

About replacing an appliance power supply

This document describes how to replace a Veritas Appliance power supply while the appliance is
operating.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3340 and is the answer not in the manual?

Questions and answers

Summary of Contents for VERITAS 3340

  • Page 1 When dealing with the server or any of the internal components, wear an ESD-preventive wrist strap, ESD-preventive gloves, and ESD-preventive suit. About replacing an appliance power supply This document describes how to replace a Veritas Appliance power supply while the appliance is operating.
  • Page 2 HSP 177: Power Supply Replacement One of the power supplies must be operating at all times. If both power supplies must be removed at the same time, the shutdown procedure must be performed on the appliance before a power supply is removed.
  • Page 3 HSP 177: Power Supply Replacement Removing a faulty power supply Use the following procedure to remove a faulty power supply. To remove a faulty power supply Verify that the LED on the faulty power supply is amber. If the LED is green or blinking green, the power supply is working properly. Blinking green indicates that the power supply is currently being used to power the appliance.
  • Page 4 HSP 177: Power Supply Replacement Warning: Swap one power supply at a time only. If you need to remove both power supplies, make sure the appliance is turned off before you proceed. Press in and hold the green release lever on the right side of the power supply to release the module.
  • Page 5 HSP 177: Power Supply Replacement Installing the replacement power supply Use the following procedure to install the replacement power supply. To install the replacement power supply Remove the replacement power supply from any wrapping. Insert the power supply into a power supply slot. Slide the replacement power supply completely into the slot.
