Chapter 4: BIOS Setup

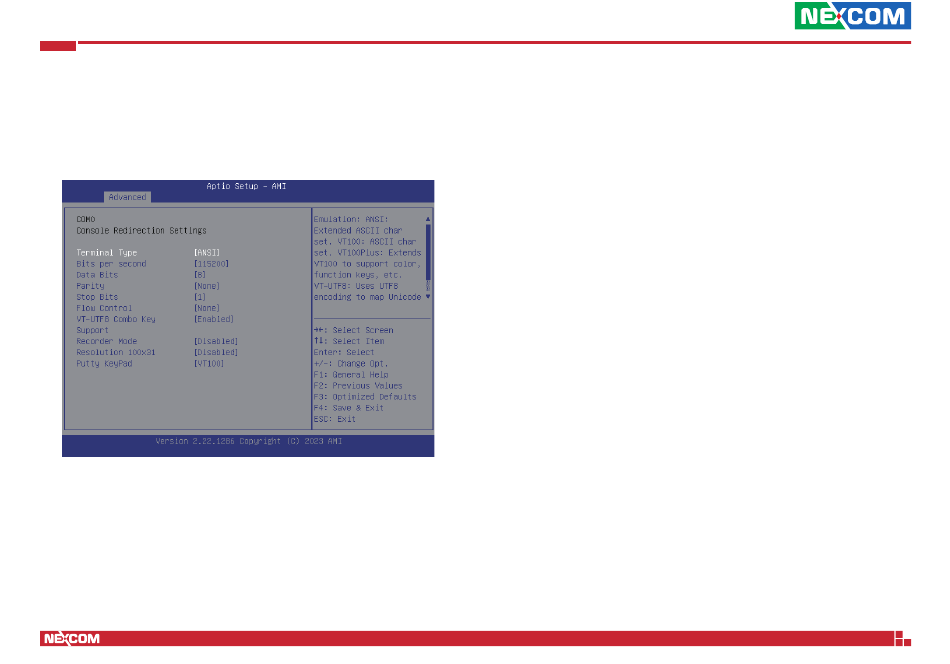

Advanced > Serial Port Console Redirection > Console Redirection
Settings
Specifies how the host computer and the remote computer (which the
user is using) will exchange data. Both computers should have the same or
compatible settings.
Terminal Type
ANSI Extended ASCII character set.
VT100 ASCII character set.
VT100+ Extends VT100 to support color, function keys, etc.
VT-UTF8 Uses UTF8 encoding to map Unicode characters onto 1 or more
bytes.
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Bits Per Second
Selects the serial port transmission speed. The speed must match the other
side. Long or noisy lines may require a lower speed.
Data Bits
The options are 7 and 8.
Parity
A parity bit can be sent with the data bits to detect some transmission errors.
Even Parity bit is 0 if the number of 1's in the data bits is even.
Odd Parity bit is 0 if number of 1's in the data bits is odd.
Stop Bits
Stop bits indicate the end of a serial data packet. (A start bit indicates the
beginning). The standard setting is 1 stop bit. Communication with slow
devices may require more than 1 stop bit.
Flow Control
Flow control can prevent data loss from buffer overflow. When sending data
and the receiving buffers are full, a "stop" signal can be sent to stop the
data flow.
VT-UTF8 Combo Key Support
Enables or disables VT-UTF8 combo key support.
Recorder Mode
When this field is enabled, only text will be sent. This is to capture the
terminal data.
Resolution 100x31
Enables or disables extended terminal resolution.
Putty KeyPad
Selects the Putty keyboard emulation type.
