Chapter 4: BIOS Setup

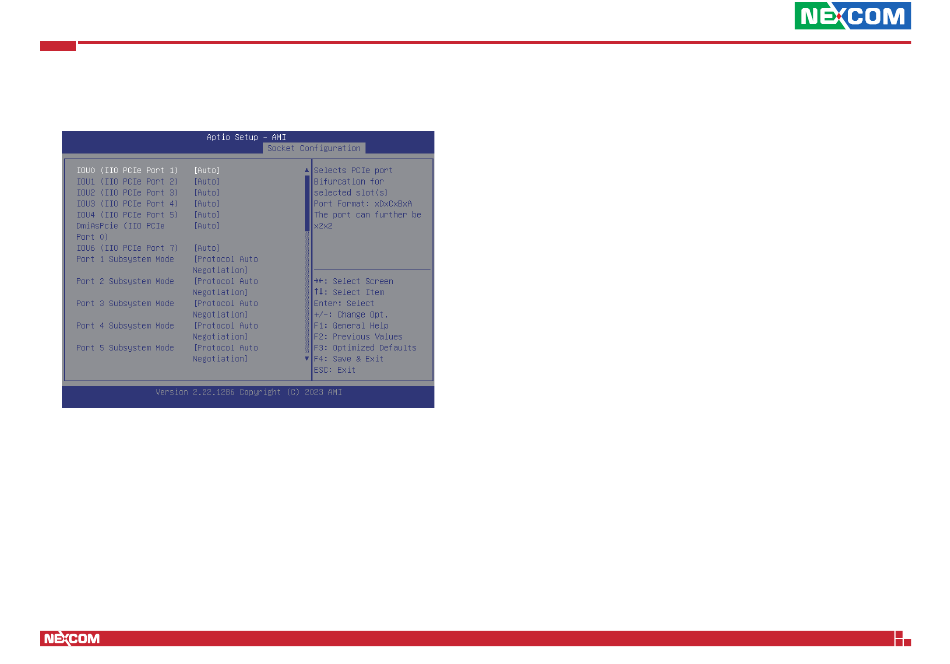

Socket Configuration > IIO Configuration > Socket0 / Socket1
Configuration
IOU0 (IIO PCe Port 1) to IOU6 (IIO PCe Port 7)
Port Bifurcation settings for IOU 0 to IOU 6.
Port 0~7 Subsystem Mode
Configures the Port Subsystem mode.
IIO PCIe VC1 Port Bitmap
Configures the IIO PCIe VC1 Port Bitmap.
Sck0 RP Correctable
Configures the Sck0 RP Correctable.
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Err
Configures the Err.
Sck0 RP Correctable Err
Enters IIO DFX Configuration submenu.
Sck0 RP NonFatal Uncorrectable Err
Enables or disables non-fatal error interruption.
Sck0 RP Fatal Uncorrectable Err
Enable or disables fatal error interruption.
TraceHub Configuration Menu
Enters TraceHub Configuration submenu.
Port DMI
Enters DMI submenu.
Port 1A / Port 1C / Port 1E / Port 1G / Port 2A / Port 2C / Port 2E / Port
2G / Port 3A / Port 3C / Port 3E / Port 3G / Port 4A / Port 4C / Port 4E /
Port 4G / Port 5A / Port 5C / Port 5E / Port 5G
Presses to enter the relevant submenu.
88
