Chapter 2: Jumpers and Connectors

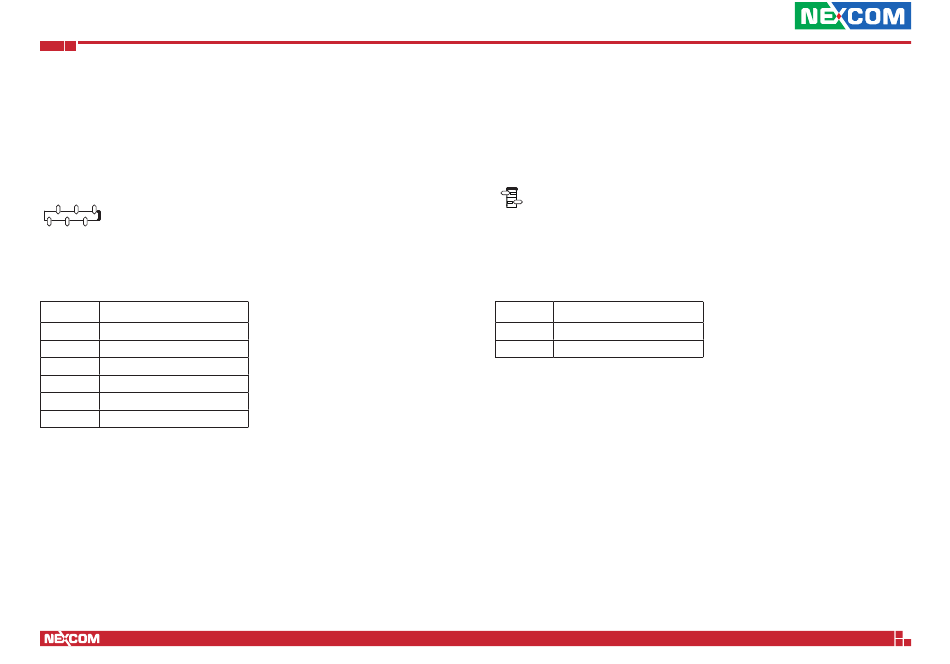

CPLD JTAG for Programing CPLD CODE

Connector type: 1X6 6-Pin
Connector location: JP11
1
6
Pin Definition
1 P3V3_CPLD
2 GND
3 JTAG_TCK_CPLD
4 JTAG_TDO_CPLD
5 JTAG_TDI_CPLD
6 JTAG_TMS_CPLD
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.

Header to BTN Switch with Cable

Connector type: 2X1 2-Pin
Connector location: JP17
1
2
Pin Definition
1 PWRBTN_N
2 GND
33
