Chapter 2: Jumpers and Connectors

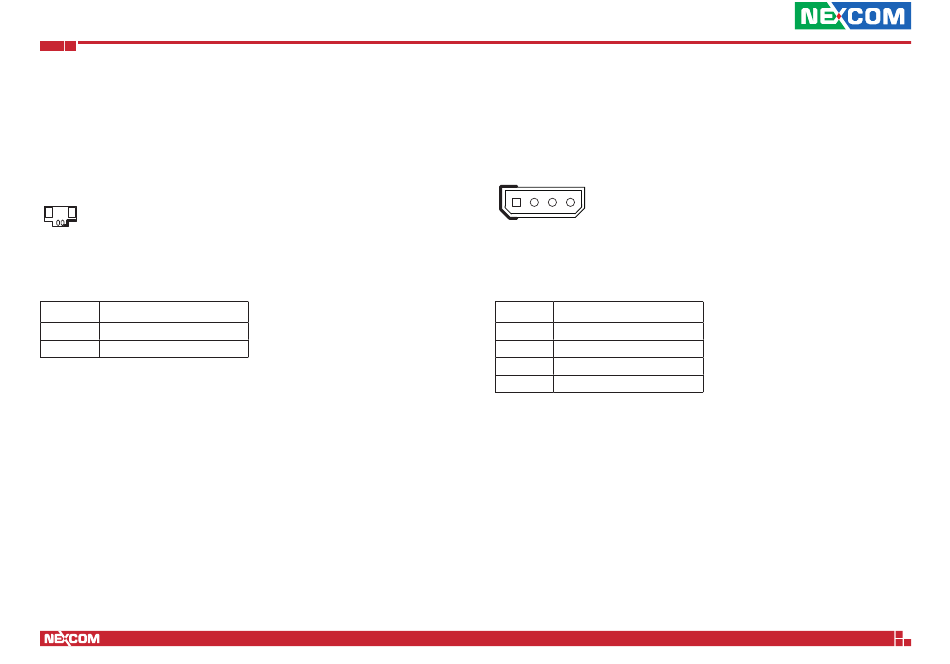

SYS RTC Header
Connector type: 1X2 2-Pin
Connector location: J1
2
1
Pin
Definition
1
GND
2
3V3_BAT
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
SATA Power Connector
Connector type: 1X4 4-Pin
Connector location: J2
1
4
Pin
Definition
1
P12V
2
GND
3
GND
4
P5V
31
NSA 7160R User Manual
